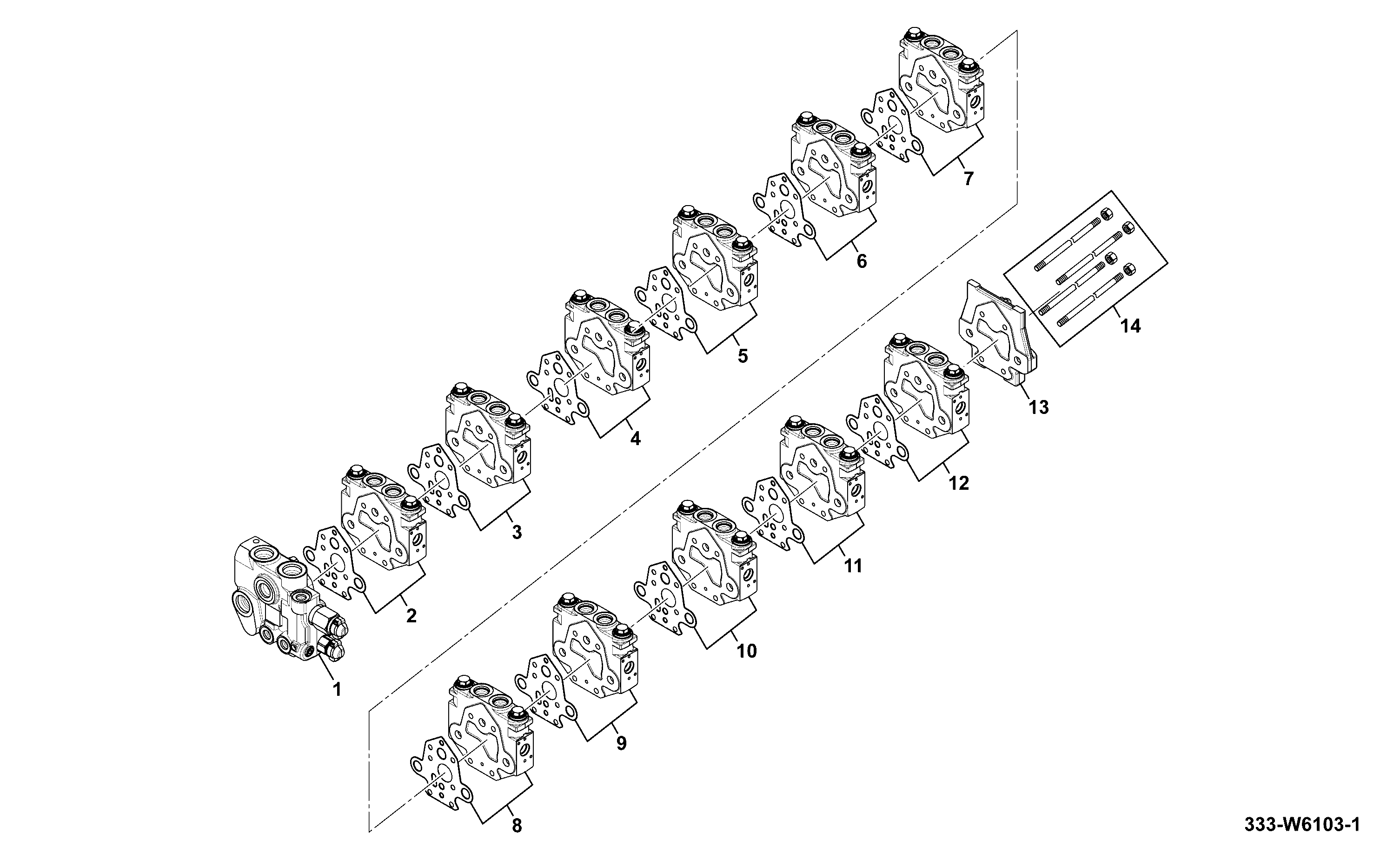

E320-65-1 VALVES EXCAVATOR SECTIONS INLET Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Flow regulator 336/A1472	1	AVAILABLE TO ORDER	$337.00	Quantity
2	LS pressure relief valve 336/A1473	1	AVAILABLE TO ORDER	$1,183.84	Quantity
3	Plug 336/B6019	1	AVAILABLE TO ORDER	$174.52	Quantity
4	Cover x 100 colour 25/223469	1	AVAILABLE TO ORDER	$706.81	Quantity
5	Seal plate 335/H3975	1	AVAILABLE TO ORDER	$182.04	Quantity

Showing 1 to 5 of 5 parts
