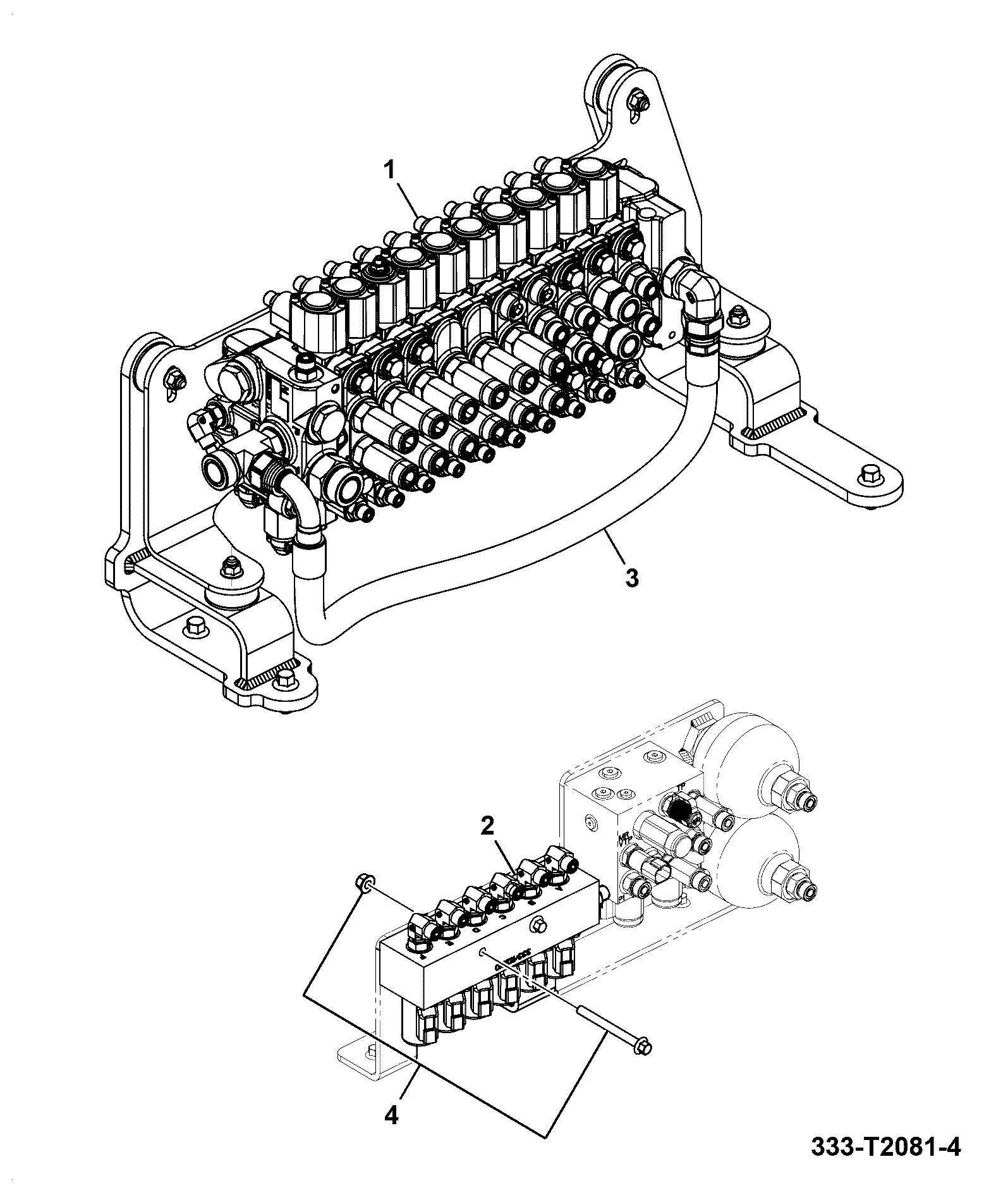

E320-1-5 VALVES EXCAVATOR DUAL AUXILIARY AND 4 WAY DOZER Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
8	HOSE -12 ORFS UHP 520mm C 334/U6042	1	AVAILABLE TO ORDER	$279.86	Quantity
9	ADAPTOR TEST POINT 1759/0606	1	AVAILABLE TO ORDER	$127.33	Quantity
10	HYDRAULIC TEST POINT ADAP 332/V3873 401/N8244	1	AVAILABLE TO ORDER	$19.06	Quantity

Showing 1 to 3 of 3 parts
