E320-1-1 VALVES EXCAVATOR VALVE SECTION, HIGH FLOW AUXILIARY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Pressure compensator kit 400/00843	1	AVAILABLE TO ORDER	$479.23	Quantity
5	Seals plate 400/00839	1	AVAILABLE TO ORDER	$184.11	Quantity
6	Seal Kit 400/00841	1	AVAILABLE TO ORDER	$159.18	Quantity
A	Valve Section, HF Aux 400/00852	1	AVAILABLE TO ORDER	$1,853.20	Quantity

Showing 1 to 4 of 4 parts

DIAG-E320-5-1-397488 E320-5-1 VALVES EXCAVATOR VALVE SECTION INLET
View Diagram

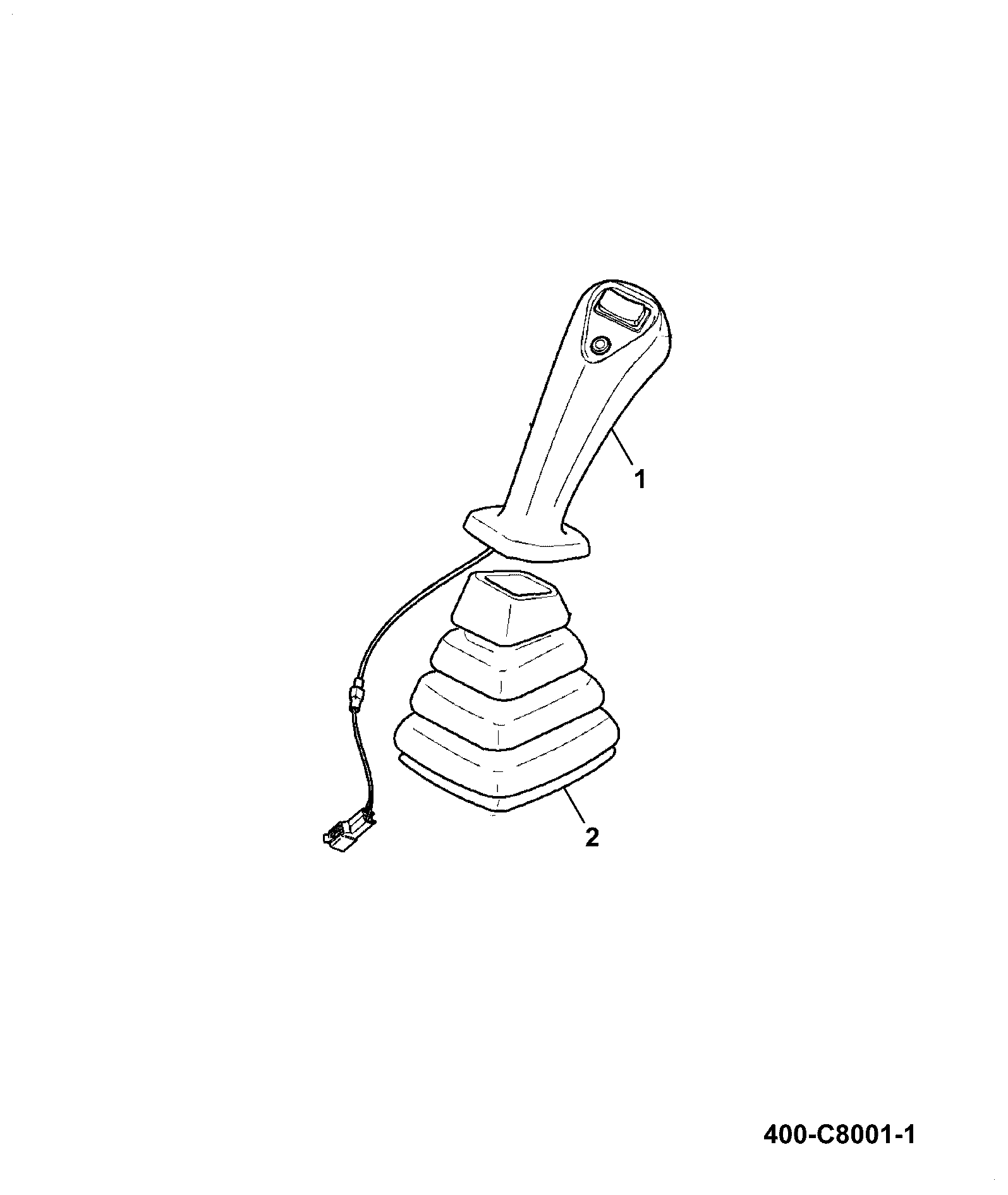

DIAG-E340-5-1-397488-11852155 E340-5-1 VALVES SERVO CONTROL (PILOT CONTROL) COMPONENTS JOYSTICK, LH, STD
