Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

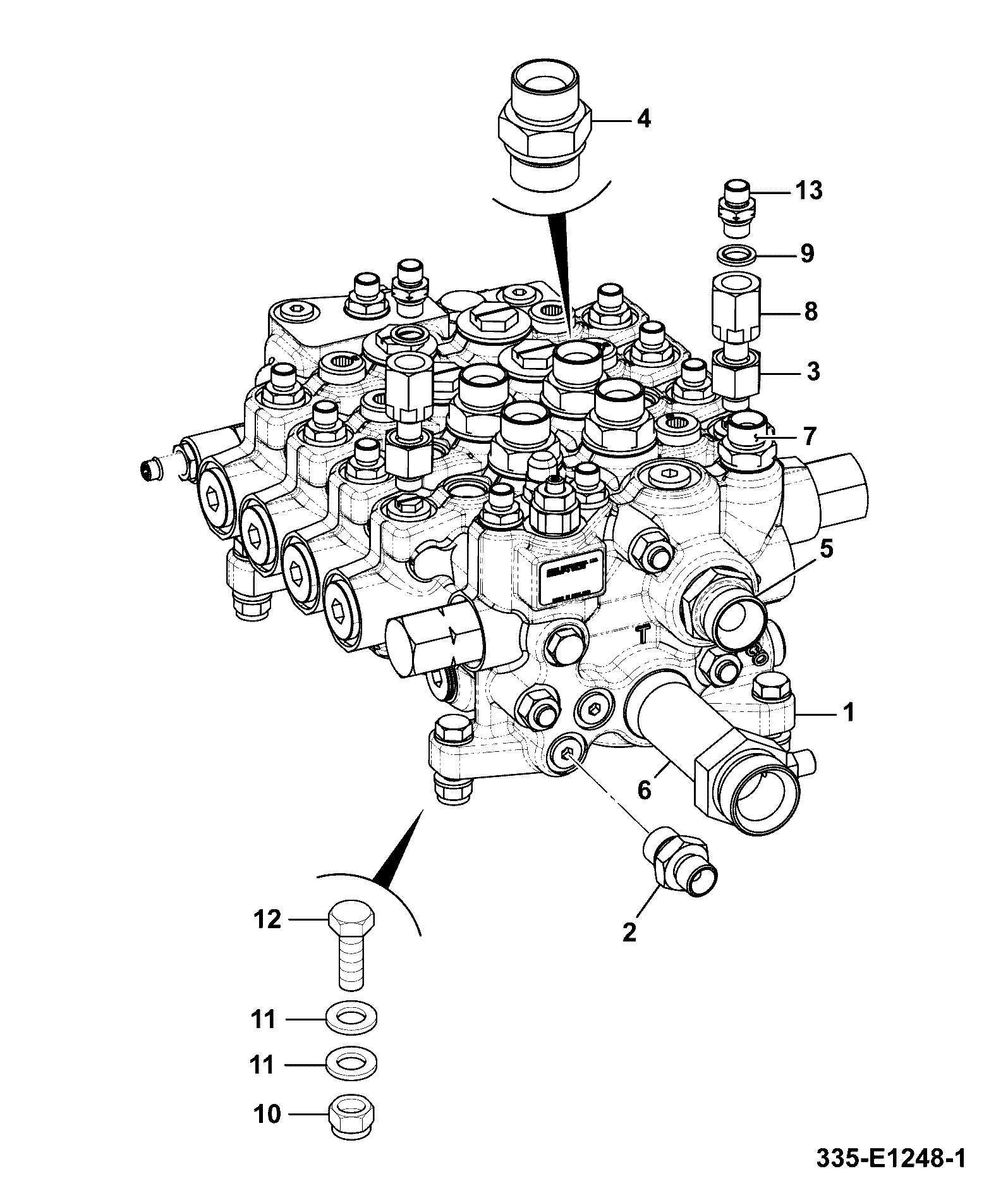

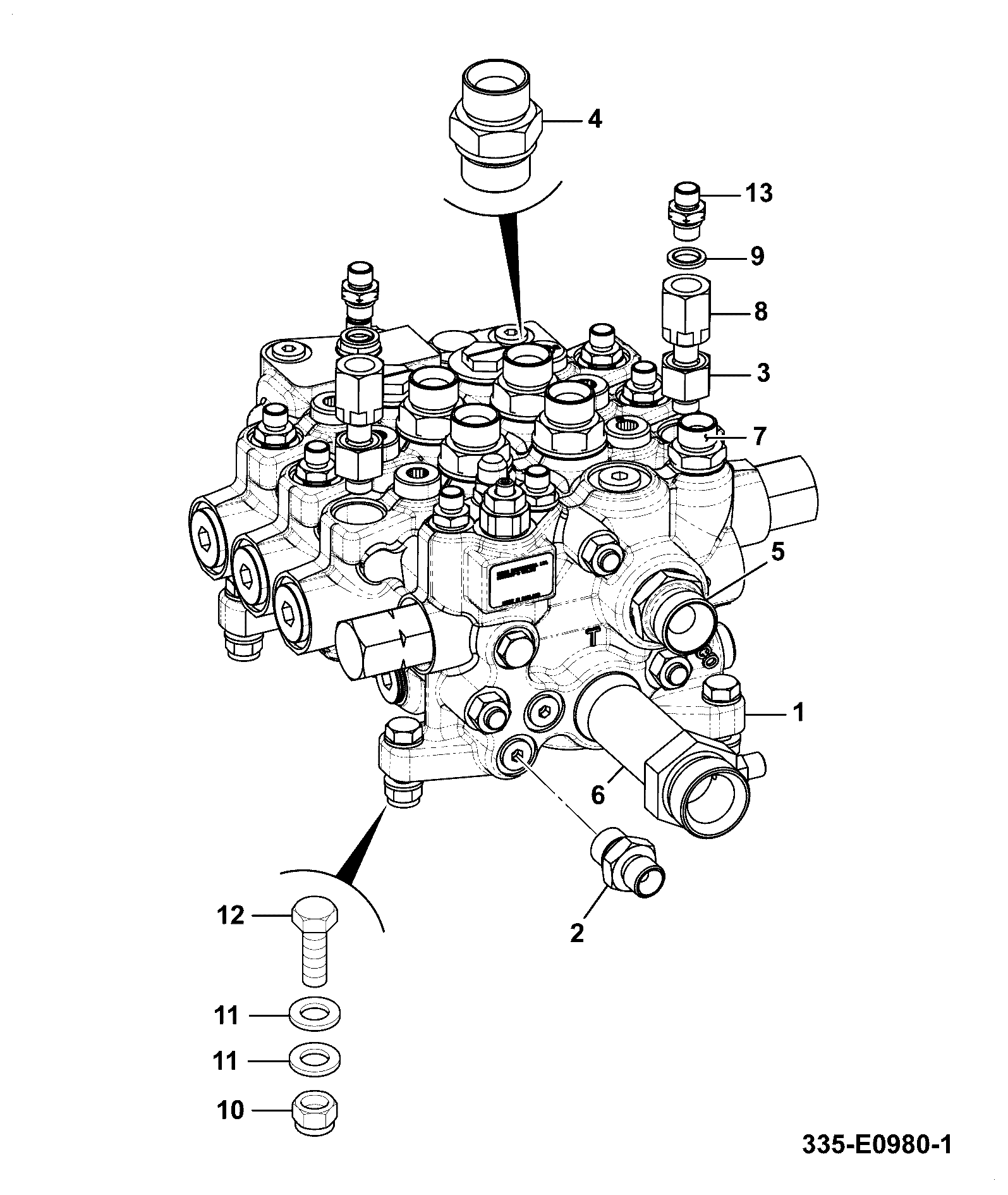

| LOADER VALVE - SCX180 3 SPOOL 334/S2607 | 1 | $3,142.13 | ||||
| 2 | Rod 332/F1165 | 1 | $149.39 | |||
| 3 | Nut 332/F1164 | 1 | $10.30 | |||
| 4 | Poppet 25/220600 | 1 | $6.23 | |||
| 5 | Spring 25/220601 | 1 | $0.47 | |||
| 6 | SEAL O RING 25/220383 | 1 | $1.73 | |||
| 7 | O Ring 332/C7164 | 1 | $0.65 | |||
| 8 | O RING 828/10190 | 1 | $9.04 | |||
| 10 | Valve inlet sectio 332/E5365 | 1 | $2,175.05 | |||
| 11 | Plug 25/220371 | 1 | $14.55 | |||
| 12 | O RING 25/607219 | 1 | $5.00 | |||
| 13 | Regulator drain 332/C6189 | 1 | $307.15 | |||
| 14 | Plug includes seal 25/220930 | 1 | $10.14 | |||
| 15 | Plug assembly 332/C6131 | 1 | $17.39 | |||
| 16 | Plug assembly 332/C6195 | 1 | $133.94 | |||
| 18 | Spring 25/220925 | 1 | $14.18 | |||
| 19 | PLUG 25/220924 | 1 | $5.96 | |||
| 21 | O RING 25/606112 | 1 | $0.42 | |||
| 24 | O Ring 332/E5442 | 1 | $0.58 | |||
| 26 | Screw 332/E5463 | 1 | $8.98 | |||
| 27 | Spring 332/E5446 | 1 | $9.69 | |||
| 28 | Poppet 332/E5464 | 1 | $6.29 | |||
| 30 | Valve 334/C1920 | 1 | $2,837.19 | |||
| 31 | Valve 334/C1923 | 1 | $164.34 | |||
| 32 | Valve 334/C1924 | 1 | $124.79 | |||
| 33 | Plug assembly 332/C6129 | 1 | $18.63 | |||
| 35 | Washer 332/C6127 | 1 | $19.03 | |||
| 37 | Ring retaining 332/C6188 | 1 | $1.39 | |||
| 39 | Spool 332/C6184 | 1 | $178.82 | |||
| 43 | O Ring O Ring 332/E5437 | 1 | $0.30 | |||
| 50 | Valve 334/C1921 | 1 | $1,808.82 | |||
| 51 | Valve 334/C1925 | 1 | $101.70 | |||
| 52 | Valve 334/C1926 | 1 | $135.48 | |||
| 54 | Spring 332/C6214 | 1 | $14.99 | |||
| 56 | Spring 332/C6133 | 1 | $51.47 | |||
| 65 | Valve 332/F1141 334/C1922 | 1 | $2,422.09 | |||
| 75 | Valve outlet secti 332/C0857 | 1 | $1,333.72 | |||
| 76 | Pressure Regulating Valve 400/10103 | 1 | $452.54 | |||
| 79 | Screw set 332/C6137 | 1 | $13.93 | |||
| 80 | Ball 332/C6126 | 1 | $2.86 | |||
| 81 | PLUG SHUT-OFF ASSE 25/612834 | 1 | $40.92 | |||
| 83 | Plug expander 332/C7165 | 1 | $4.56 | |||
Showing 1 to 42 of 42 parts
