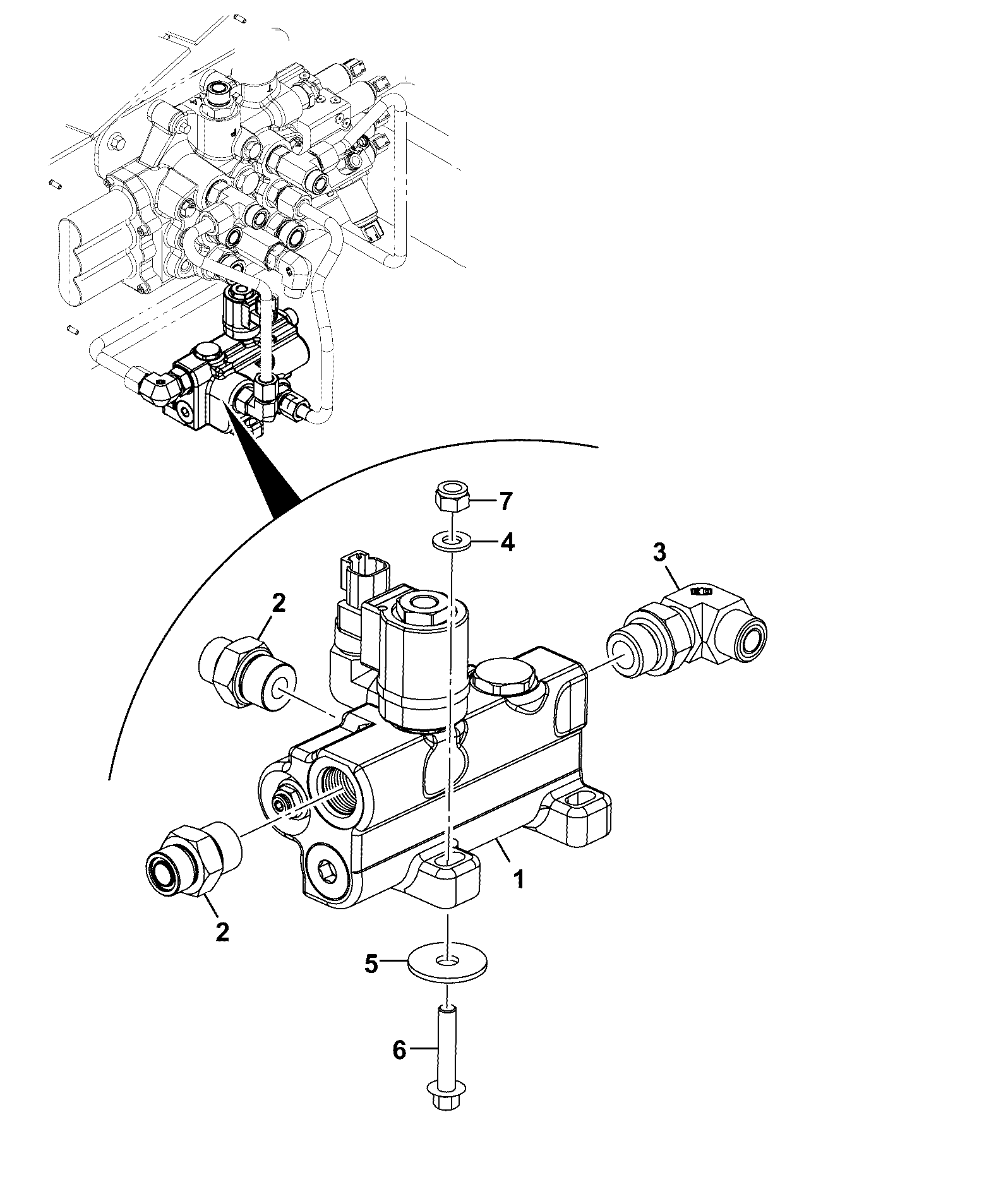

E310-55-1 VALVES LOADER VALVE ASSEMBLY UDSL HF SP TS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	TUBE ASSY - UDSL 4 SP T4 332/X9944	1	AVAILABLE TO ORDER	$152.96	Quantity
3	TUBE ASSY-UDSL 3 SP T4 333/X4789	1	AVAILABLE TO ORDER	$131.99	Quantity
4	TUBE ASSY - UDSL 1 SP T4 333/X3318	1	AVAILABLE TO ORDER	$269.53	Quantity

Showing 1 to 3 of 3 parts
