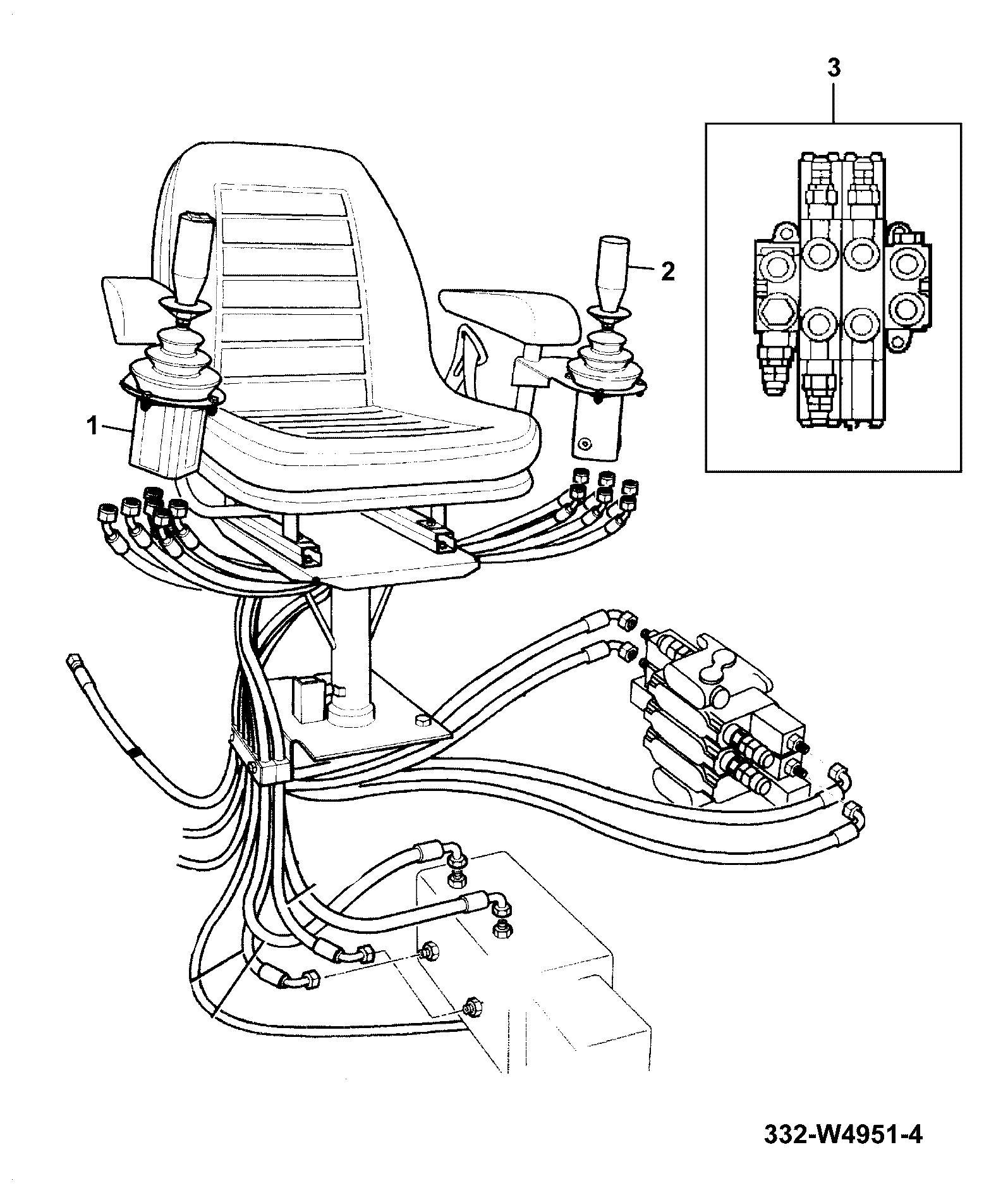

E310-4-1 VALVES LOADER JOYSTICK CONTROL AUXILARY Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	LEVER LOADER JOYST 25/220588	1	AVAILABLE TO ORDER	$3,093.45	Quantity
2	LEVER TRANS.JOYSTI 25/220589	1	AVAILABLE TO ORDER	$3,269.10	Quantity
3	3 SPOOL VALVE BLOCK 25/221345 332/W3572	1	AVAILABLE TO ORDER	$3,891.10	Quantity
4	PLUG 3/4 "O RING BOSS 1745/0003	1	AVAILABLE TO ORDER	$2.56	Quantity

Showing 1 to 4 of 4 parts
