E310-20-1 VALVES LOADER COMPONENTS VALVE OUTLET SECTION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Filter Magnom 332/G9431	1	AVAILABLE TO ORDER	$114.14	Quantity
2	Valve Check Valve 332/G9429	1	AVAILABLE TO ORDER	$432.49	Quantity
A	Inlet Section Assy. 332/G9436 336/B6366	1	AVAILABLE TO ORDER	$1,474.17	Quantity

Showing 1 to 3 of 3 parts

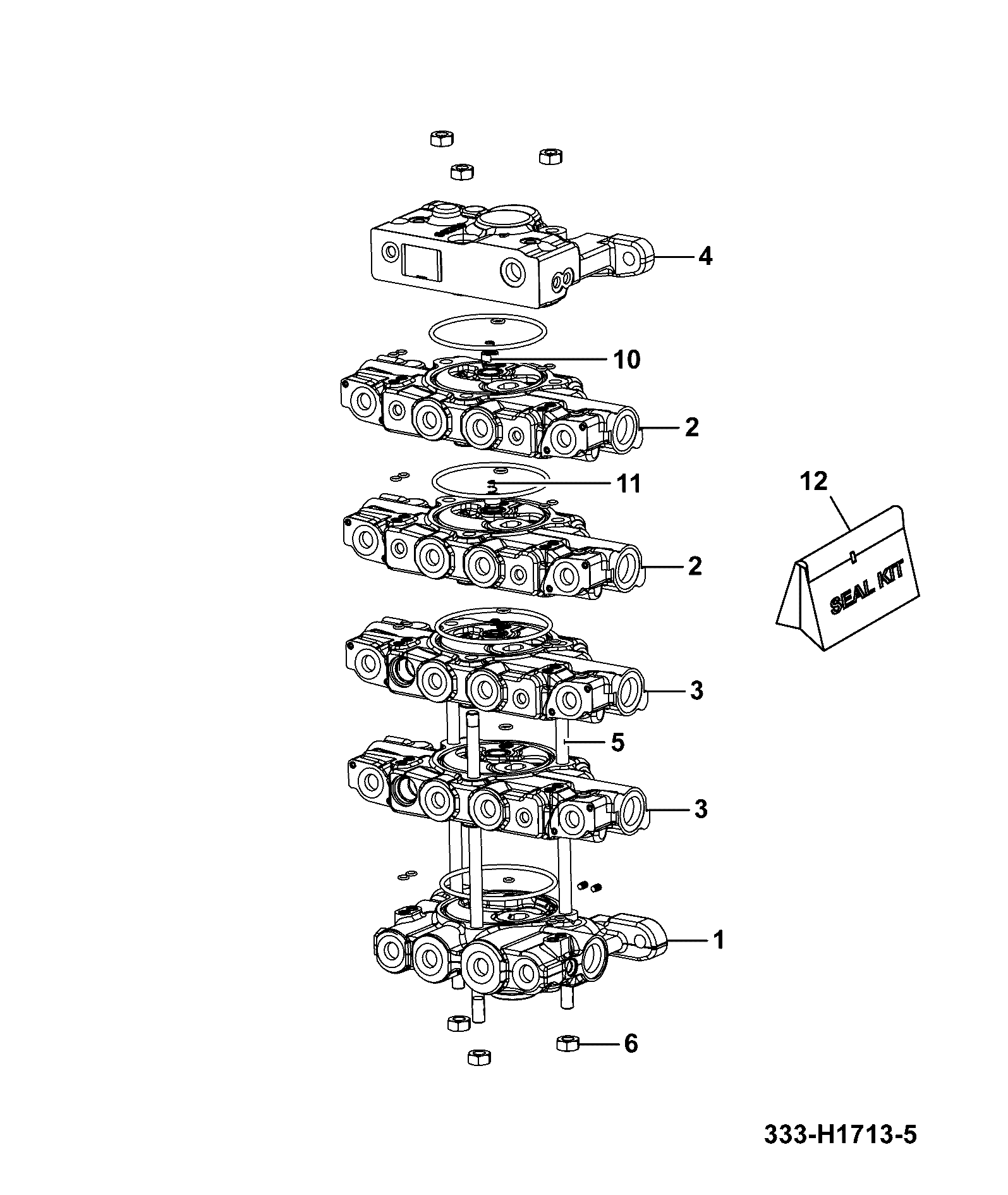

DIAG-E300-25-1-400169 E300-25-1 VALVE INSTALLATION ASSEMBLIES VALVE BLOCK CONSTRUCTION
View Diagram

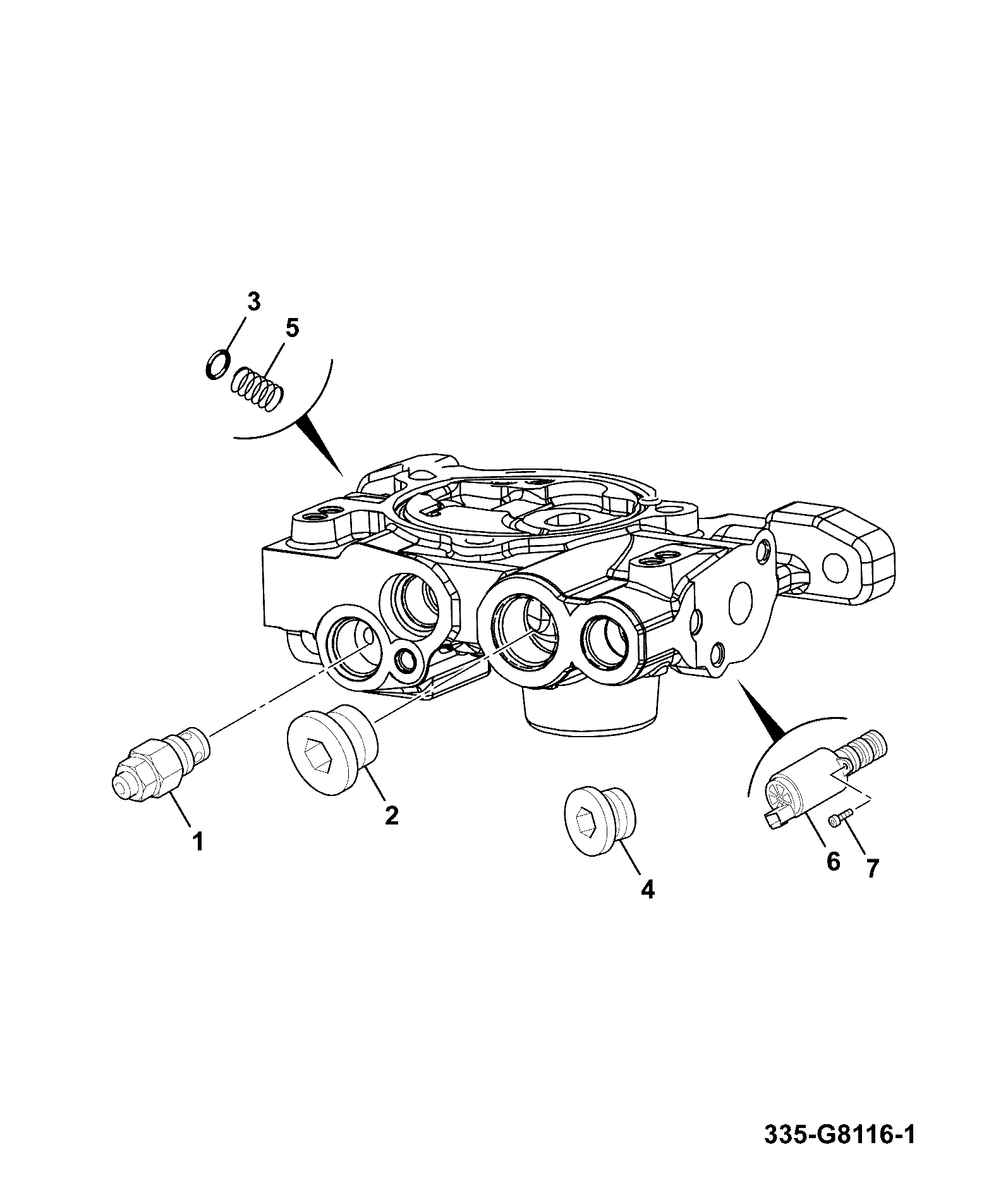

DIAG-E310-25-1-400169 E310-25-1 VALVES LOADER COMPONENTS VALVE INLET SECTION
