Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

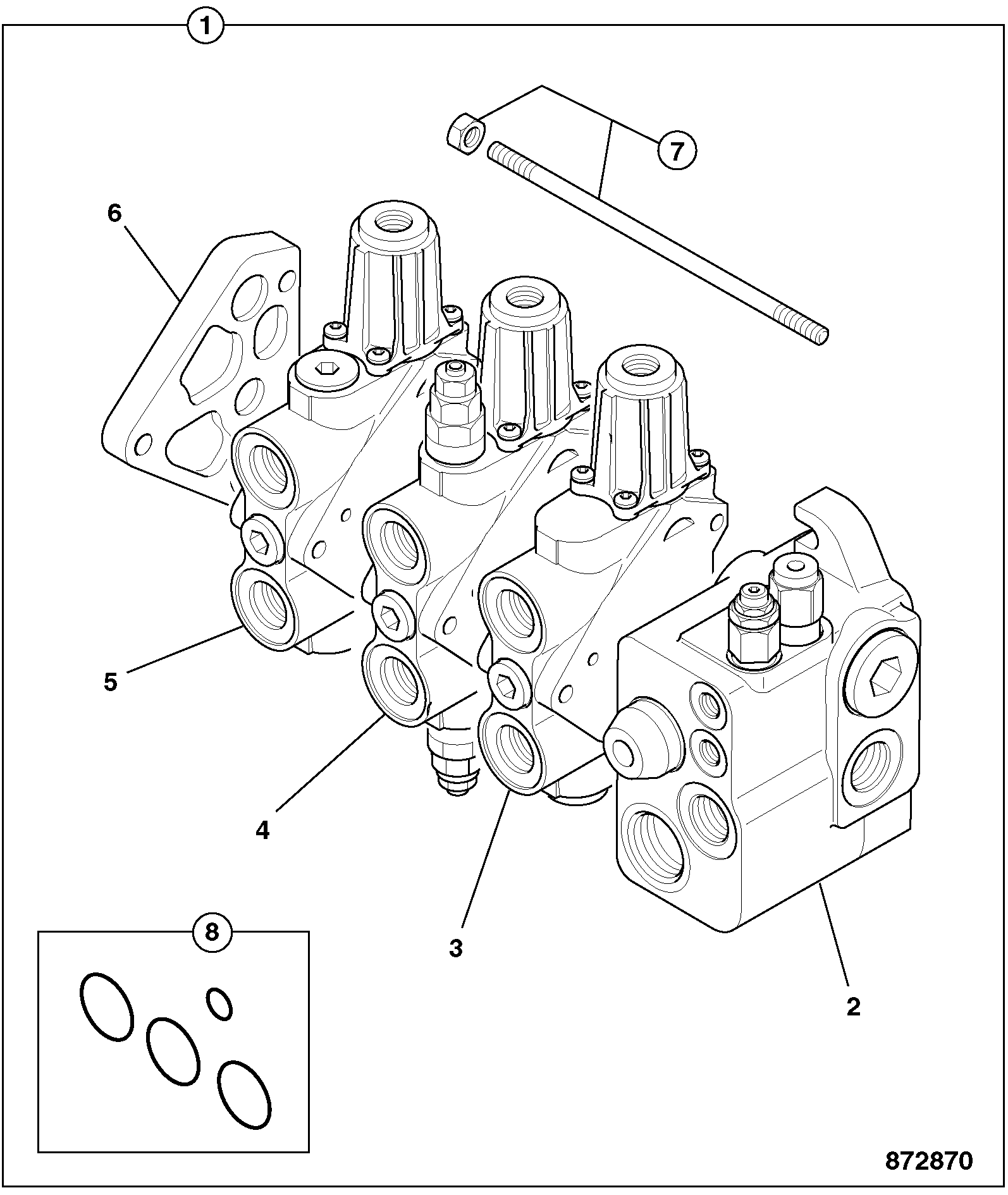

| LOADER VALVE PCH 333/C2486 | 1 | $3,371.61 | ||||
| 1A | KIT-REPAIR RELIEF 25/618902 | 1 | $61.39 | |||
| 1A | VALVE RELIEF 25/222659 25/618901 | 1 | $241.11 | |||
| 1B | Kit unloading pilo 25/222834 | 1 | $338.94 | |||
| 1B | KIT-SEAL 25/974633 | 1 | $36.15 | |||
| 1C | RELIEF VALVE 172 bar 25/222415 333/C8654 | 1 | $346.98 | |||
| 1C | SEAL 25/222305 | 1 | $43.04 | |||
| 1D | RELIEF VALVE 310 bar 25/222416 333/C8658 | 1 | $347.12 | |||
| 7C | Spring 25/974629 | 1 | $9.52 | |||
| 8 | Kit 332/E5244 | 1 | $195.94 | |||
| 15 | Kit Std Spool Glan 25/221140 25/222660 | 1 | $36.81 | |||
| 15A | BOLT 25/606101 25/606101A | 1 | $0.71 | |||
| 15B | PLATE, SEAL 25/222198 | 1 | $7.45 | |||
| 15C | WIPER SEAL 25/222661 | 1 | $48.55 | |||
| 15D | SEAL 25/221208 | 1 | $38.59 | |||
| 20 | Kit float spool gl 25/222669 | 1 | $75.16 | |||
| 20A | SCREW 25/606839 | 1 | $0.71 | |||
| 20D | SPACER 25/974609 | 1 | $9.52 | |||
| 20F | HOUSING 25/974608 | 1 | $11.19 | |||
| 20G | O RING 25/974607 | 1 | $8.36 | |||
| 28 | Kit end cap assy 332/C7241 | 1 | $248.89 | |||
| 28B | Retainer 332/C7243 | 1 | $32.36 | |||
| 28F | Spring spring 332/C7247 | 1 | $25.90 | |||
| 28G | Seat 332/C7248 | 1 | $13.81 | |||
| 28H | Retainer 25/221320 | 1 | $19.64 | |||
| 28I | CAPSCREW 25/621802 | 1 | $3.82 | |||
| 28J | Plug assembly 332/C6195 | 1 | $133.94 | |||
| 39 | KIT SPOOL END 25/221151 | 1 | $647.53 | |||
| 39A | Screw Soc. HD cap 25/222840 | 1 | $9.52 | |||
| 39B | CLIP 25/221153 | 1 | $15.44 | |||
| 39C | COIL 12V 25/221152 | 1 | $389.47 | |||
| 39D | Spacer 25/222675 | 1 | $14.46 | |||
| 39E | Circlip 25/222839 | 1 | $30.23 | |||
| 39F | Spacer clapper 25/222838 | 1 | $65.58 | |||
| 39G | Spacer spool end 25/222837 | 1 | $32.17 | |||
| 39H | Plate seal 25/222836 | 1 | $9.35 | |||
| 39I | Retainer 25/974615 | 1 | $10.85 | |||
| 39J | Spacer 25/222835 | 1 | $27.96 | |||
| 39K | SPRING 25/606501 | 1 | $4.45 | |||
| 39L | SEAT SPRING 25/608201 | 1 | $35.44 | |||
| 39M | PLATE-SEAL 25/975702 | 1 | $13.26 | |||
| 42 | Valve assembly 332/G3552 | 1 | $519.26 | |||
| 42A | Valve solenoid bod 332/G3551 | 1 | $529.34 | |||
| 42B | Coil solenoid valv 332/G3555 | 1 | $116.91 | |||
| 42C | NUT COIL RETAINER 25/222826 | 1 | $1.97 | |||
| 43 | Valve assembly 332/G3554 | 1 | $1,305.48 | |||
| 43A | Valve solenoid bod 332/G3553 | 1 | $904.57 | |||
| 48 | PLUG 3/4 "O RING BOSS 1745/0003 | 1 | $2.56 | |||
| 54 | Kit spool end assy 25/222412 | 1 | $349.04 | |||
| 54A | Screw 25/974622 333/Y0839 | 1 | $5.75 | |||
| 54B | COVER 25/222199 25/606108 | 1 | $28.26 | |||
| 54C | Sleeve 25/222672 | 1 | $41.91 | |||
| 54D | BALL 5MM DIA 25/974621 | 1 | $6.87 | |||
| 54E | Cap Spool end 25/222673 | 1 | $122.39 | |||
| 54F | Plate seal 25/222674 | 1 | $10.23 | |||
| 54I | Spring 25/974619 | 1 | $5.82 | |||
| 67 | PLUG KIT 25/222414 | 1 | $85.66 | |||
| 67A | PLUG 25/612835 25/974644 | 1 | $27.36 | |||
| 67B | SPRING 25/606117 | 1 | $10.58 | |||
| 67C | SEAT 25/974645 | 1 | $6.29 | |||
| 70 | KIT 25/221746 | 1 | $50.57 | |||
| 70A | CAP 25/606111 | 1 | $15.33 | |||
| 70B | SPRING 25/606113 | 1 | $2.59 | |||
| 70C | SEAT 25/606114 | 1 | $33.03 | |||
| 73 | SOLENOID ASSEMBLY 25/222657 | 1 | $802.96 | |||
| 73B | COIL 12V SOLENOID 332/G9415 25/222658 | 1 | $109.23 | |||
| 73C | Solenoid 332/G9416 | 1 | $276.62 | |||
Showing 1 to 67 of 67 parts
Related Assemblies
-
DIAG-E310-10-201-394833 E310-10-201 VALVES LOADER LIFT SECTION ADVANCED EASYCONTROL
View Diagram -
DIAG-E310-10-2-394833 E310-10-2 VALVES LOADER 3 SPOOL ADVANCED EASYCONTROL
View Diagram -
DIAG-E310-9-1-394833 E310-9-1 VALVES LOADER 3 SPOOL WITH FLOAT, RESET & DETENT, DIRECT CONTROL
View Diagram
