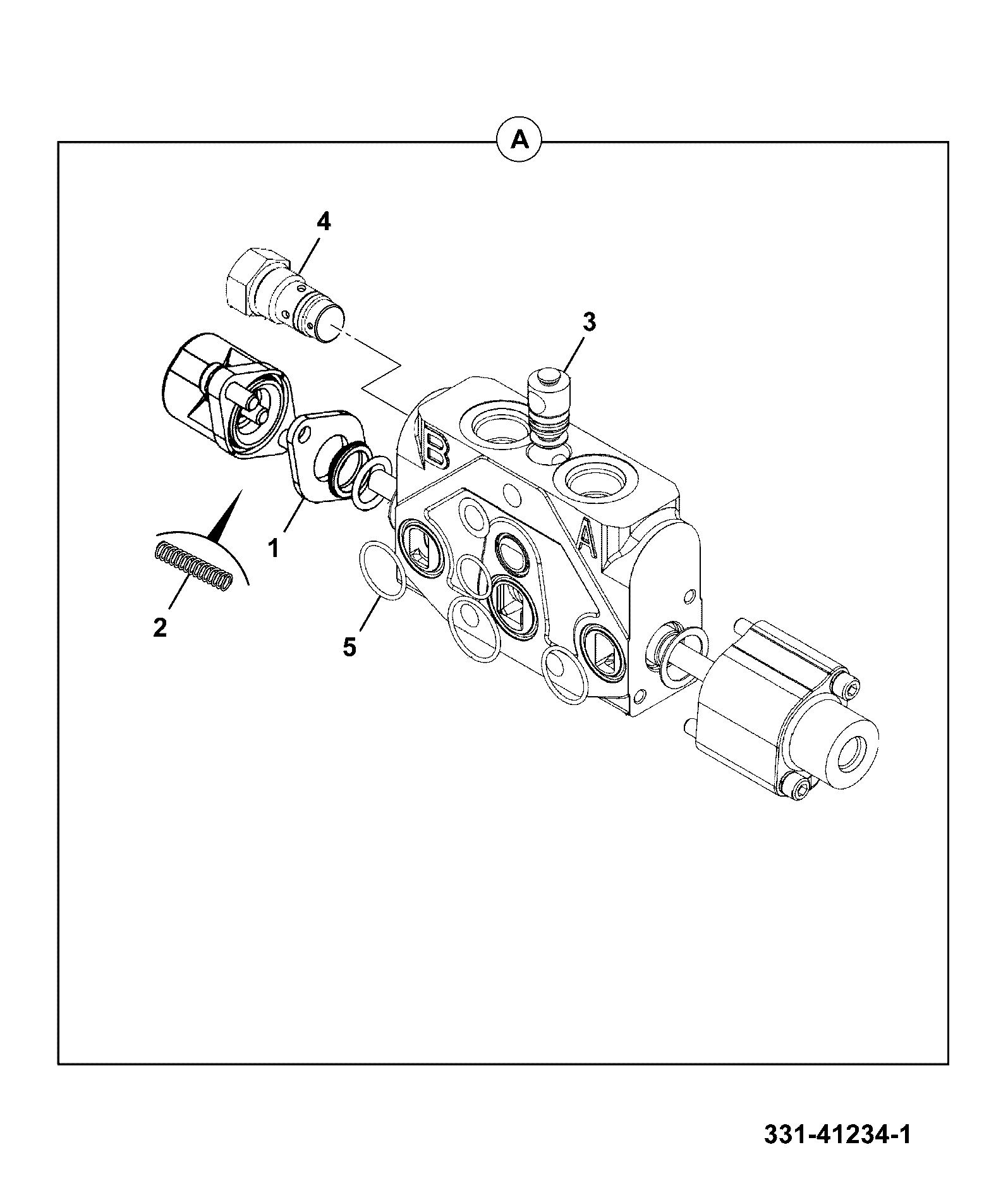

E310-105-1 VALVES LOADER SECTIONS LIFT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Kit Spool Endplate 335/B5358	1	AVAILABLE TO ORDER	$39.29	Quantity
2	Kit Valve Spool Ca 25/406303 25/221583	1	AVAILABLE TO ORDER	$84.71	Quantity
3	KIT-REPAIR 25/929304 25/926908	1	1 IN STOCK	$159.03	Quantity
5	PLUG 20/951970 25/900611	1	AVAILABLE TO ORDER	$48.58	Quantity
A	VALVE 331/41230	1	AVAILABLE TO ORDER	$1,244.94	Quantity

Showing 1 to 5 of 5 parts
