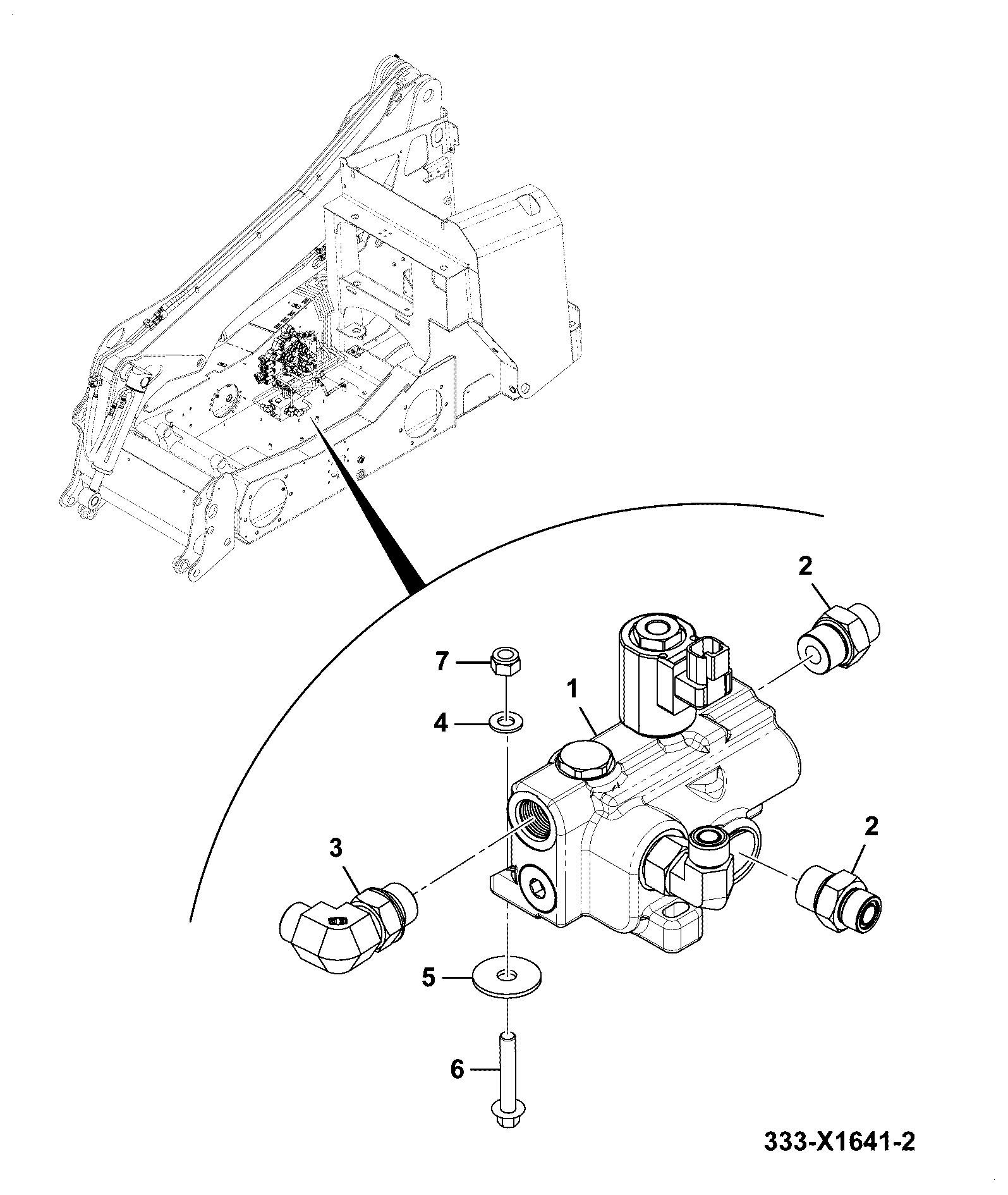

E310-1-1 VALVES LOADER VALVE BLOCK ASSEMBLY,VERTICAL LIFT,UDSL,TIER 4,HF Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	TUBE ASSY - UDSL 4 SP T4 332/X9944	1	AVAILABLE TO ORDER	$152.96	Quantity
3	TUBE ASSY-UDSL 3 SP T4 333/X4789	1	AVAILABLE TO ORDER	$131.99	Quantity
4	TUBE ASSY - UDSL 1 SP T4 333/X3318	1	AVAILABLE TO ORDER	$269.53	Quantity

Showing 1 to 3 of 3 parts

DIAG-E310-20-1-395347 E310-20-1 VALVES LOADER VALVE ASSEMBLY,VERTICAL LIFT,UDSL,TIER 4
View Diagram
DIAG-E290-1-1-395347 E290-1-1 OTHER HYDRAULIC MOTORS FAN MOTOR ASSEMBLY,TIER 4
View Diagram
DIAG-E275-115-1-395347 E275-115-1 MOTOR HYDRAULIC DRIVE ASSEMBLIES MOTORS TRKD SP
View Diagram
