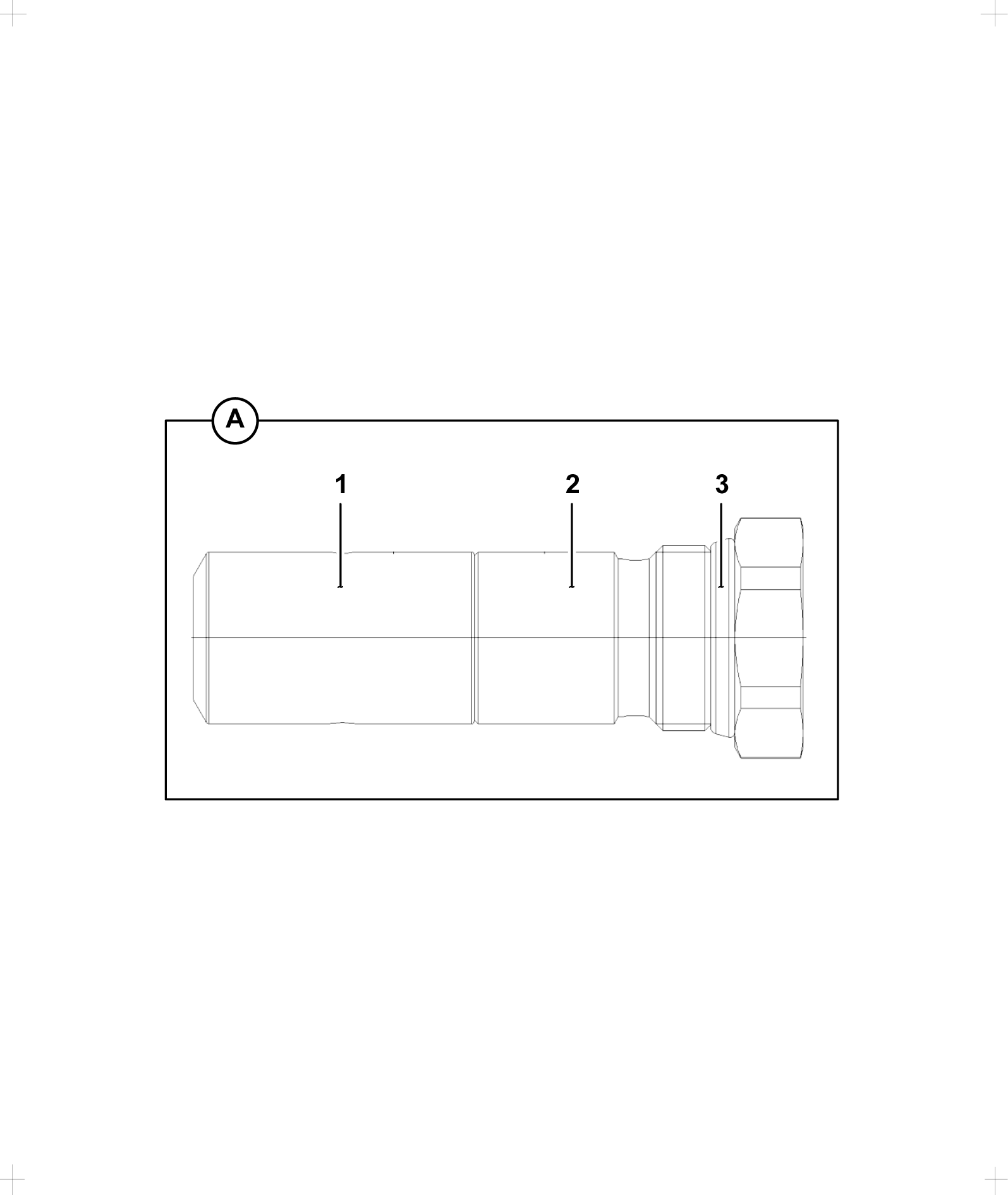

E300-1-1 VALVE INSTALLATION ASSEMBLIES VALVE CONTROL ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1K	Screw Plug 400/08985	1	AVAILABLE TO ORDER	$55.63	Quantity
1N	Bonded Seal Ring 336/E5938	1	AVAILABLE TO ORDER	$28.93	Quantity
3	Screw socket head 20/952312	1	AVAILABLE TO ORDER	$6.05	Quantity
4	Screw locking 20/952361	1	AVAILABLE TO ORDER	$74.85	Quantity
A	Valve 333/D8431	1	AVAILABLE TO ORDER	$1,503.57	Quantity

Showing 1 to 5 of 5 parts
