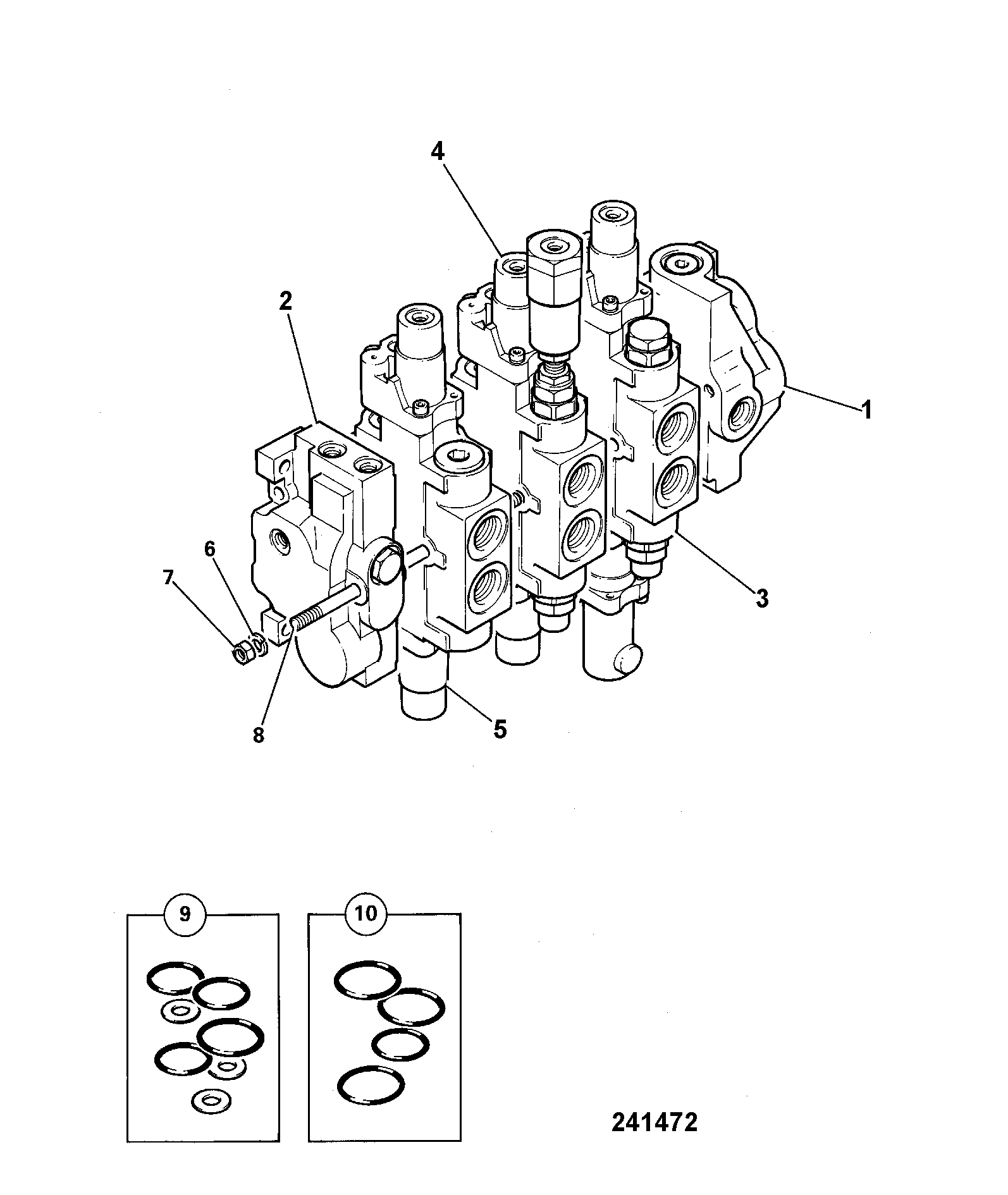

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | VALVE ASSY 25/221218 | 1 | $23,792.85 | |||
| 2 | SET-SCREW M10 L-_40mm 1315/0410D | 1 | $2.49 | |||
| 3 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 4 | ADAPTOR 1-1/16"UNF x G1A 816/17095 816/90212 | 1 | $30.96 | |||
| 5 | ADAPTOR 1/4 BSP TEE-M/F/M 816/90013 | 1 | $80.41 | |||
| 5 | TEE ADAPTOR 816/55058 | 1 | $97.83 | |||
| 6 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 7 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 7 | O-RING 828/00237 | 1 | $0.20 | |||
| 8 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 9 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 9 | O RING 3/4 BSP 2301/0015 | 1 | $0.37 | |||
| 10 | O-RING 2401/0503 | 1 | $0.54 | |||
| 10 | PRESSURE TEST ADAPTOR 45/904100 | 1 | $49.44 | |||
| 10 | S.STEEL T.POINT-STRAIGHT 970/61358 | 1 | $341.34 | |||
| 11 | ADAPTOR G1/2A-3/4UNF(M) 1620/2054 | 1 | $37.26 | |||
| 11 | O RING 1/2 BSP 2301/0010 | 1 | $0.23 | |||
| 12 | O-RING 2401/0508 | 1 | $3.28 | |||
Showing 1 to 18 of 18 parts
