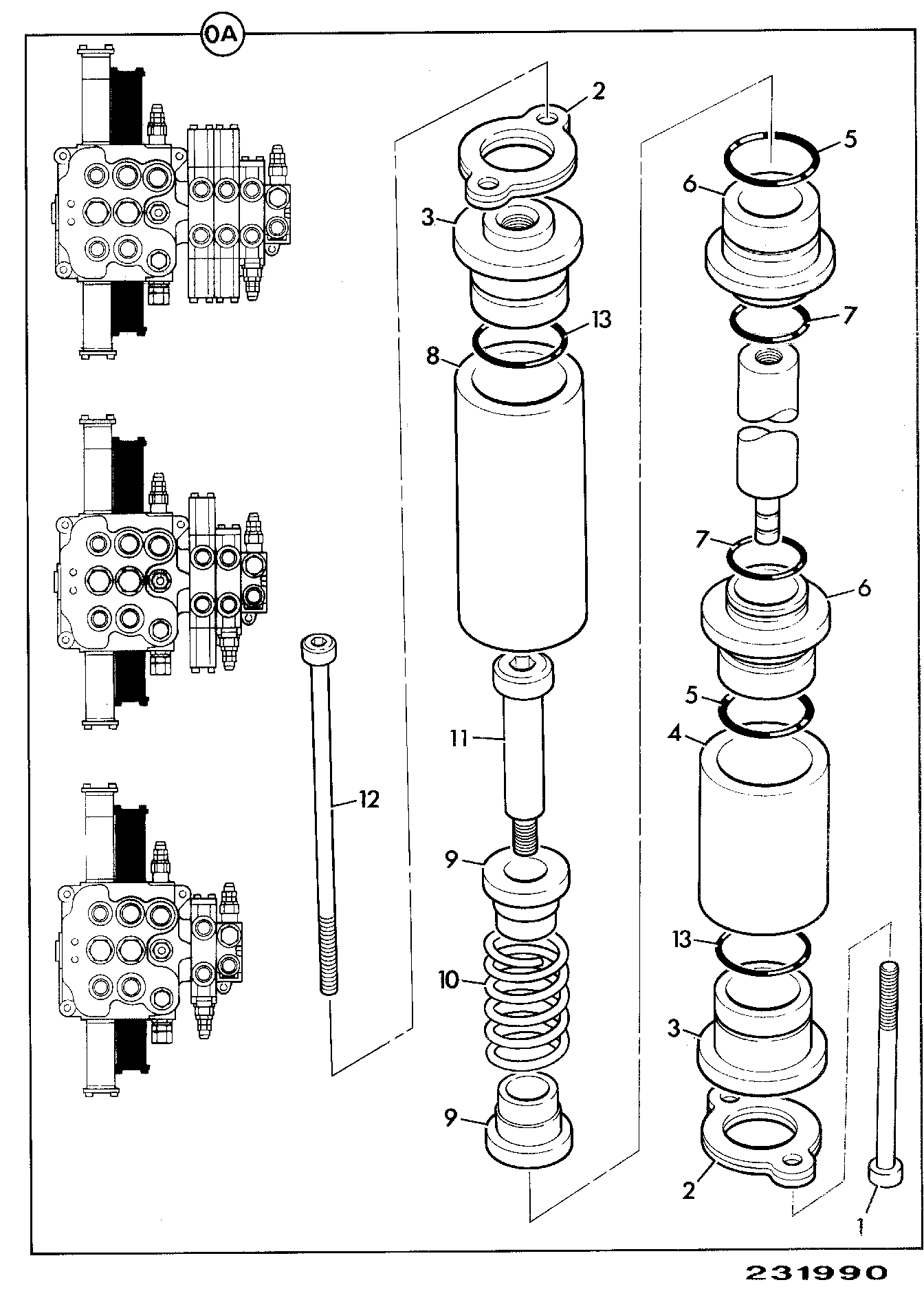

E3-5-5 AUX. END MECHANISM Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	CAP-DETENT 25/608608	1	AVAILABLE TO ORDER	$243.07	Quantity
2	CAPSCREW 25/608607	1	AVAILABLE TO ORDER	$38.39	Quantity
3	Spring 334/L0717	1	AVAILABLE TO ORDER	$13.69	Quantity
4	SEAT SPRING 25/608609	1	AVAILABLE TO ORDER	$14.10	Quantity
5	O RING 25/608606	1	AVAILABLE TO ORDER	$7.99	Quantity

Showing 1 to 5 of 5 parts

DIAG-E3-5-4-404476 E3-5-4 LIFT END MECHANISM
View Diagram
DIAG-E3-5-6-404476 E3-5-6 PRIORITY STEER ASSY
View Diagram
DIAG-E3-5-3-404476 E3-5-3 BUCKET END MECHANISM
View Diagram

Previous Assembly DIAG-E3-5-4-404476 E3-5-4 LIFT END MECHANISM Next Assembly DIAG-E3-5-6-404476 E3-5-6 PRIORITY STEER ASSY
