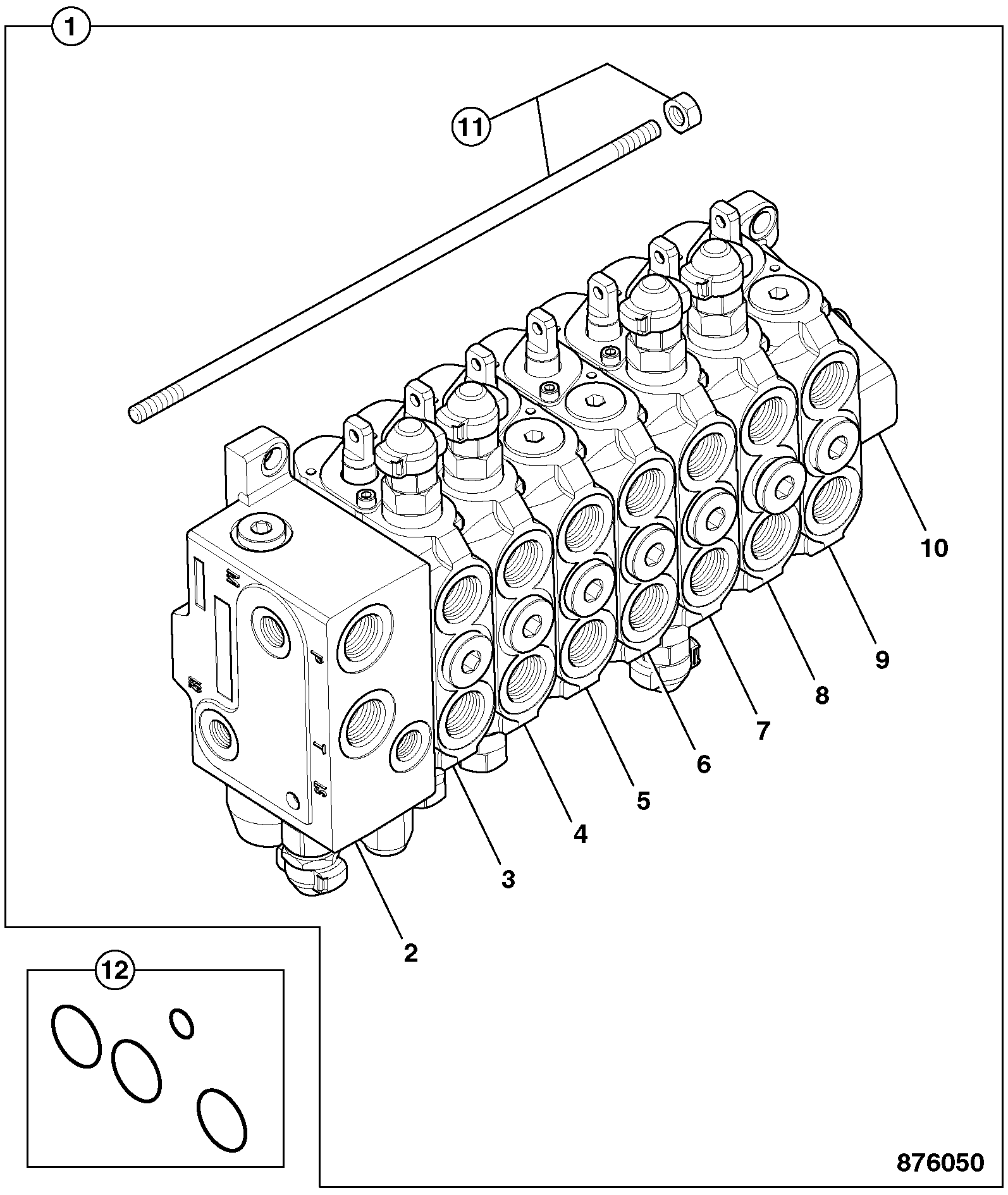

E3-5-20 VALVE,EXCAVATOR,7SPL SERVO, DETAILS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	7 SECTION VALVE servo 332/C0668	1	AVAILABLE TO ORDER	$9,702.54	Quantity
2	Valve 25/223494	1	AVAILABLE TO ORDER	$2,529.73	Quantity
3	Valve 333/D4684	1	AVAILABLE TO ORDER	$2,865.52	Quantity
4	Valve 333/D4620	1	AVAILABLE TO ORDER	$6,127.93	Quantity
5	VALVE 25/223497	1	AVAILABLE TO ORDER	$1,933.74	Quantity
7	Valve 333/D4695	1	AVAILABLE TO ORDER	$2,825.85	Quantity
8	Valve 333/D4702	1	AVAILABLE TO ORDER	$3,044.26	Quantity

Showing 1 to 7 of 7 parts

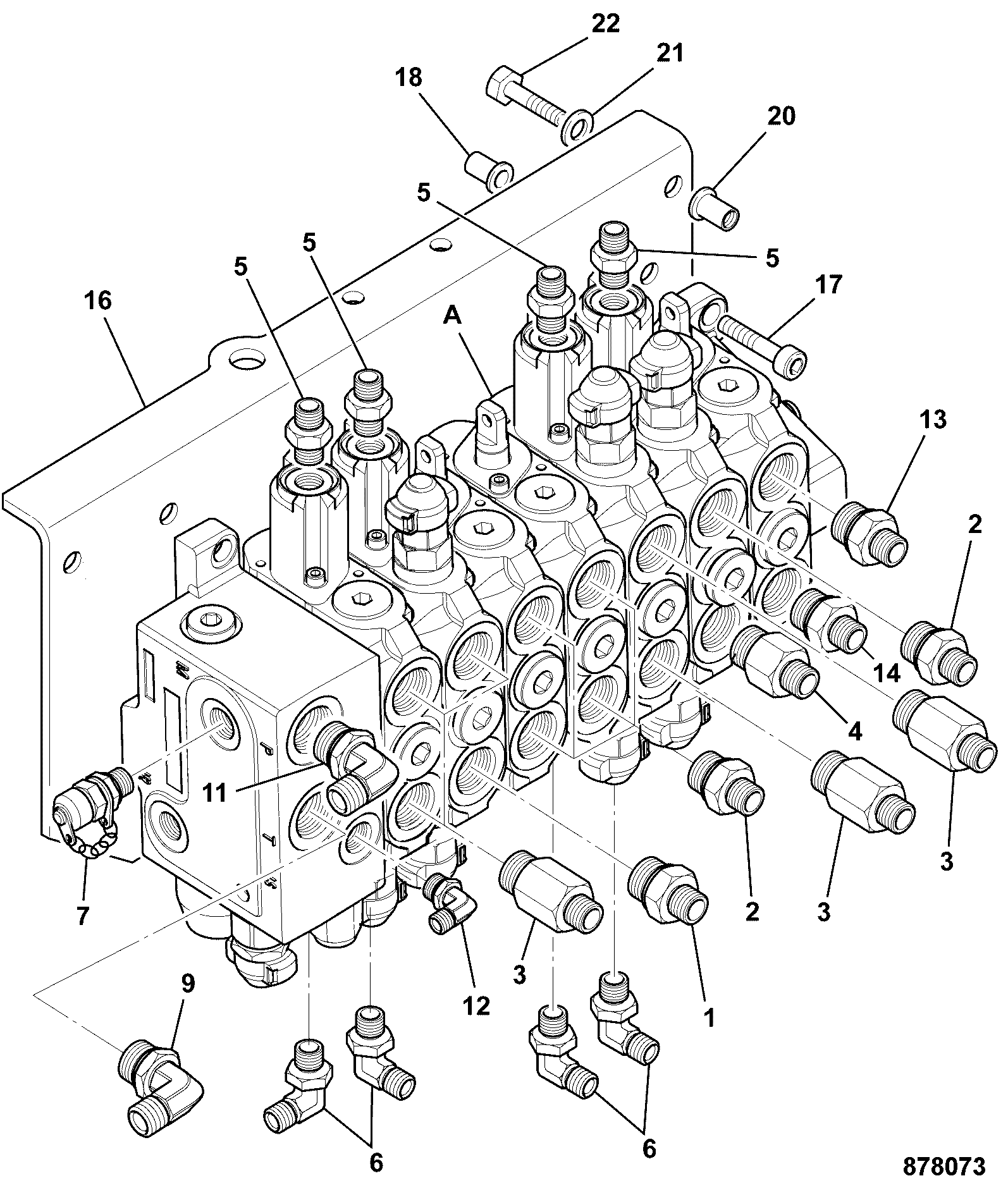

DIAG-E3-5-17-395175 E3-5-17 VALVE ADAPTERS EXCAVATOR, 7 SPOOL ISO, SERVO, SIDESHIFT
