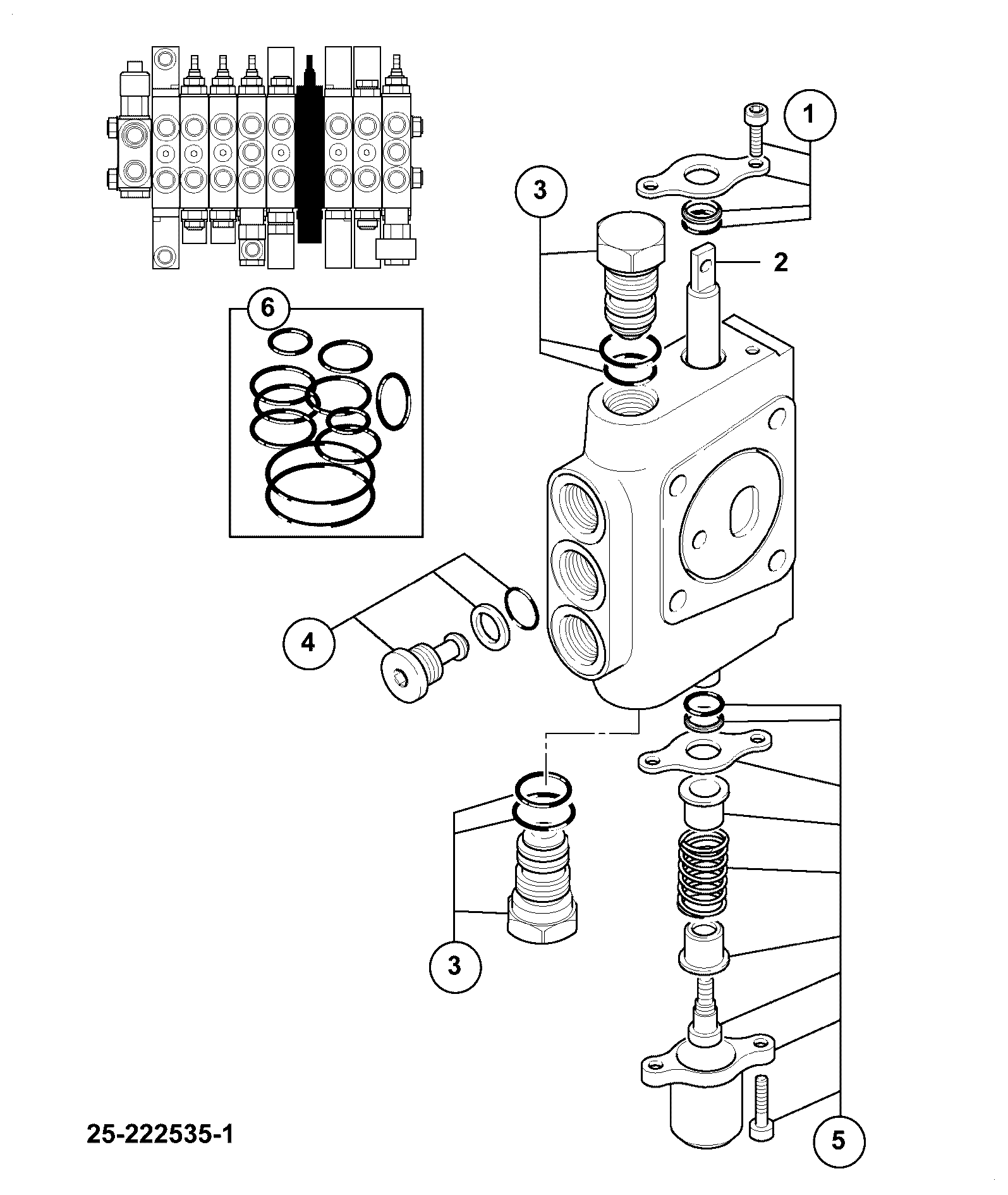

E3-46-1 VALVE, SECTION TRACK RIGHT HAND Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	KIT 25/221426	1	AVAILABLE TO ORDER	$61.36	Quantity
	Kit Cut off valve 25/222546	1	AVAILABLE TO ORDER	$766.02	Quantity
	SPOOL KIT 25/221425	1	AVAILABLE TO ORDER	$78.59	Quantity
	Valve Main relief 25/222545	1	AVAILABLE TO ORDER	$169.70	Quantity
	Valve Valve sectio 25/222537	1	AVAILABLE TO ORDER	$2,431.78	Quantity

Showing 1 to 5 of 5 parts

DIAG-E3-45-1-397815 E3-45-1 VALVE, SECTION DIPPER
View Diagram
DIAG-E3-47-1-397815 E3-47-1 VALVE, SECTION SWING
View Diagram
DIAG-E3-44-1-397815 E3-44-1 VALVE, SECTION AUXILIARY
View Diagram

Previous Assembly DIAG-E3-45-1-397815 E3-45-1 VALVE, SECTION DIPPER Next Assembly DIAG-E3-47-1-397815 E3-47-1 VALVE, SECTION SWING
