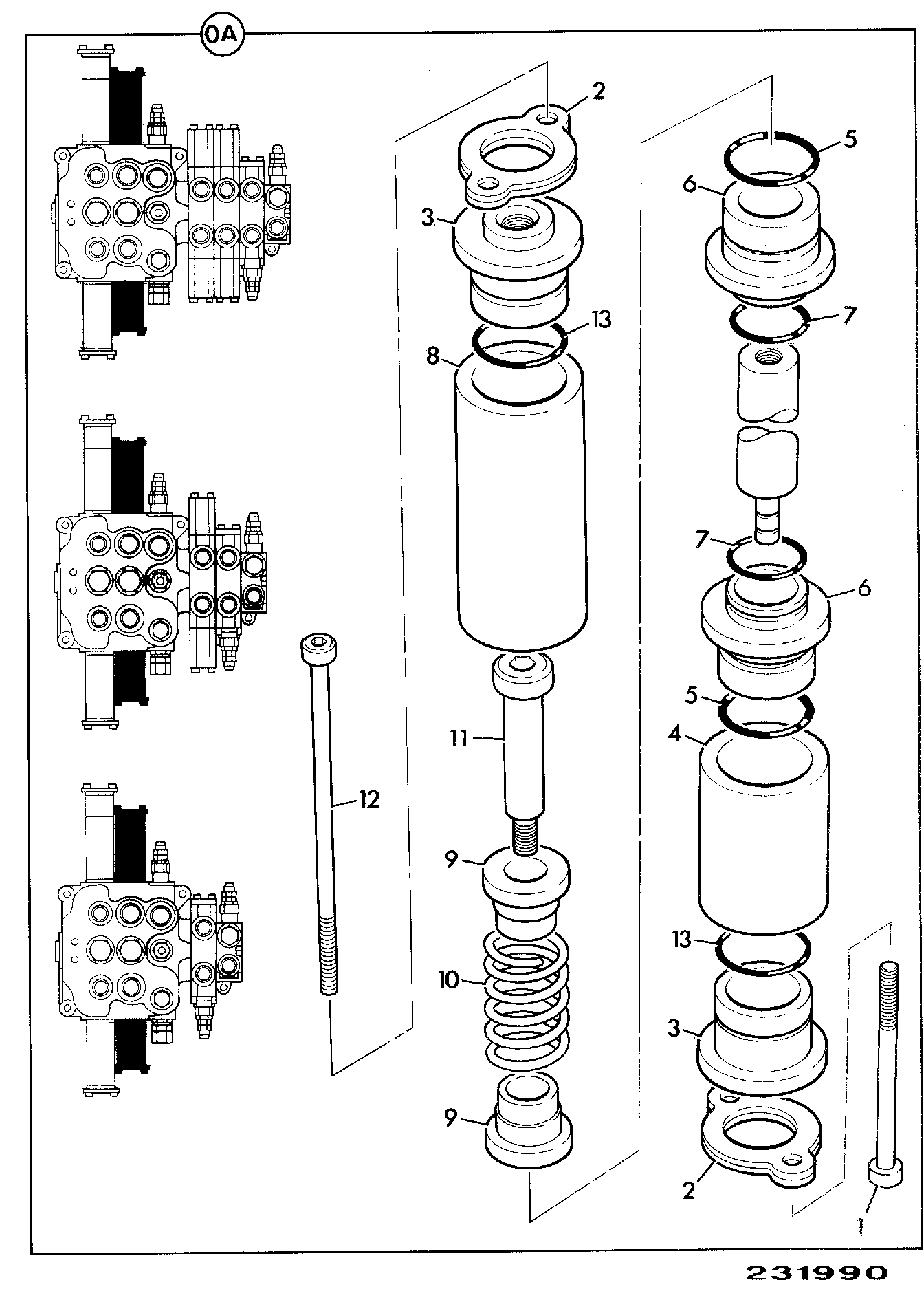

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | CAP SPOOL 25/612810 | 1 | $80.36 | |||
| 2 | SPOOL END 25/612811 | 1 | $65.48 | |||
| 3 | SCREW CAP 25/612812 | 1 | $12.44 | |||
| 5 | O RING 25/974607 | 1 | $8.36 | |||
| 6 | RETAINER 25/612804 | 1 | $125.66 | |||
| 7 | SPRING, LIFT END MECHANISM 25/612813 | 1 | $18.33 | |||
| 8 | SEAT SPRING 25/612814 | 1 | $38.61 | |||
| 9 | CAP 25/612802 | 1 | $112.19 | |||
| 10 | SCREW CAP 25/612815 | 1 | $66.14 | |||
| 11 | Adapter 25/612816 | 1 | $72.79 | |||
| 12 | BALL 5MM DIA 25/974621 | 1 | $6.87 | |||
| 13 | SPOOL END 25/612817 | 1 | $334.26 | |||
| 14 | WASHER FLAT 25/612818 | 1 | $0.44 | |||
| 15 | O RING 25/612803 | 1 | $1.05 | |||
| 16 | PLATE, SEAL 25/222198 | 1 | $7.45 | |||
| 17 | CAP DETENT 25/612819 | 1 | $80.55 | |||
| 18 | SLEEVE ASSEMBLY 25/612820 | 1 | $118.95 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-E3-4-5-404476 E3-4-5 AUX. END MECHANISM
View Diagram -
DIAG-E3-4-7-404476 E3-4-7 PRIORITY STEER ASSY
View Diagram -
DIAG-E3-4-4-404476 E3-4-4 BUCKET END MECHANISM
View Diagram
