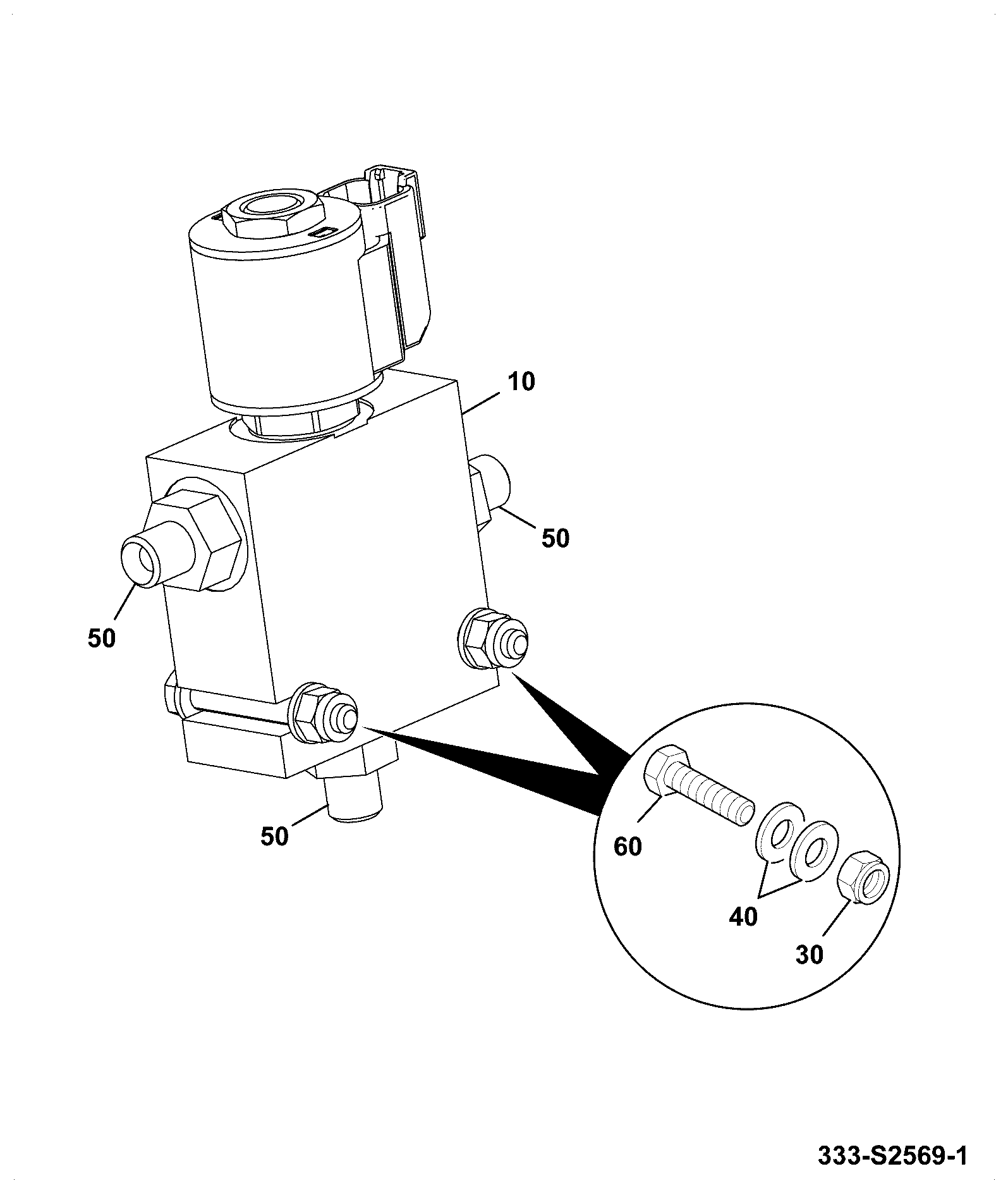

E3-4-20 VALVE COMPONENTS ISOLATOR VALVE, 333/S1066 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Part Number	Qty.	Avl.	Price (USD)	Action
Coil 332/H4123	1	AVAILABLE TO ORDER	$54.43	Quantity
SOLENOID VALVE 3WAY, 2 POS. 333/S1066	1	AVAILABLE TO ORDER	$303.88	Quantity
SOLENOID VLV-DIFF LK 347/22261	1	AVAILABLE TO ORDER	$277.48	Quantity

Showing 1 to 3 of 3 parts
