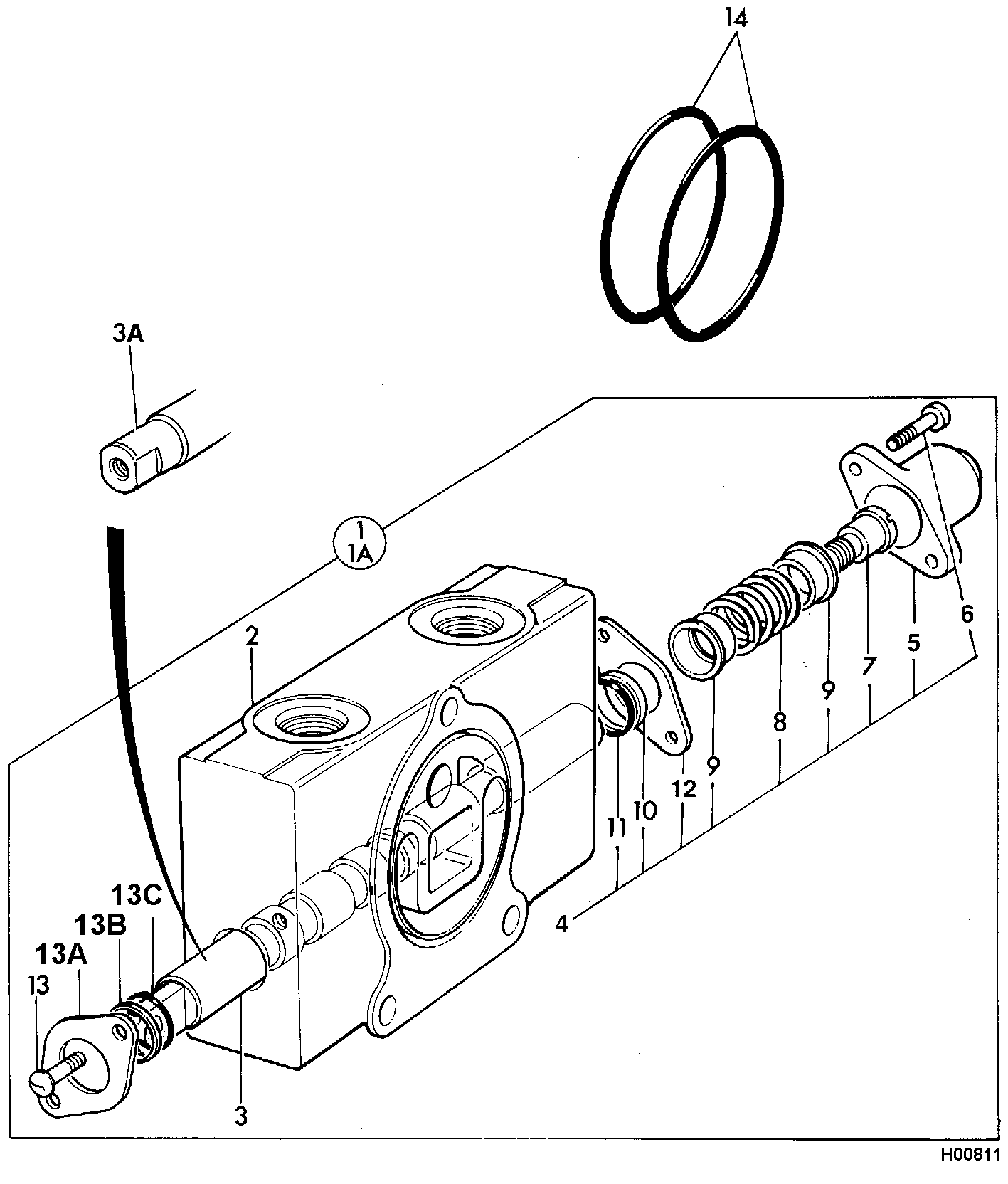

E3-4-2 VALVE SECTION SLEW – SERVO Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	VALVE SECTION-SLEW 25/614310	1	AVAILABLE TO ORDER	$1,926.56	Quantity
4	CAP-DETENT 25/608608	1	AVAILABLE TO ORDER	$243.07	Quantity
5	CAPSCREW 25/608607	1	AVAILABLE TO ORDER	$38.39	Quantity
6	SPRING 25/608610	1	AVAILABLE TO ORDER	$17.97	Quantity
7	SEAT SPRING 25/608609	1	AVAILABLE TO ORDER	$14.10	Quantity
8	O RING 25/608606	1	AVAILABLE TO ORDER	$7.99	Quantity
9	O-RING 25/606812	1	3 IN STOCK	$5.10	Quantity

Showing 1 to 7 of 7 parts

DIAG-E3-4-1-397790 E3-4-1 VALVE, SECTION TRACK & SLEW
View Diagram
DIAG-E3-5-1-397790 E3-5-1 VALVE, SECTION SWING
View Diagram

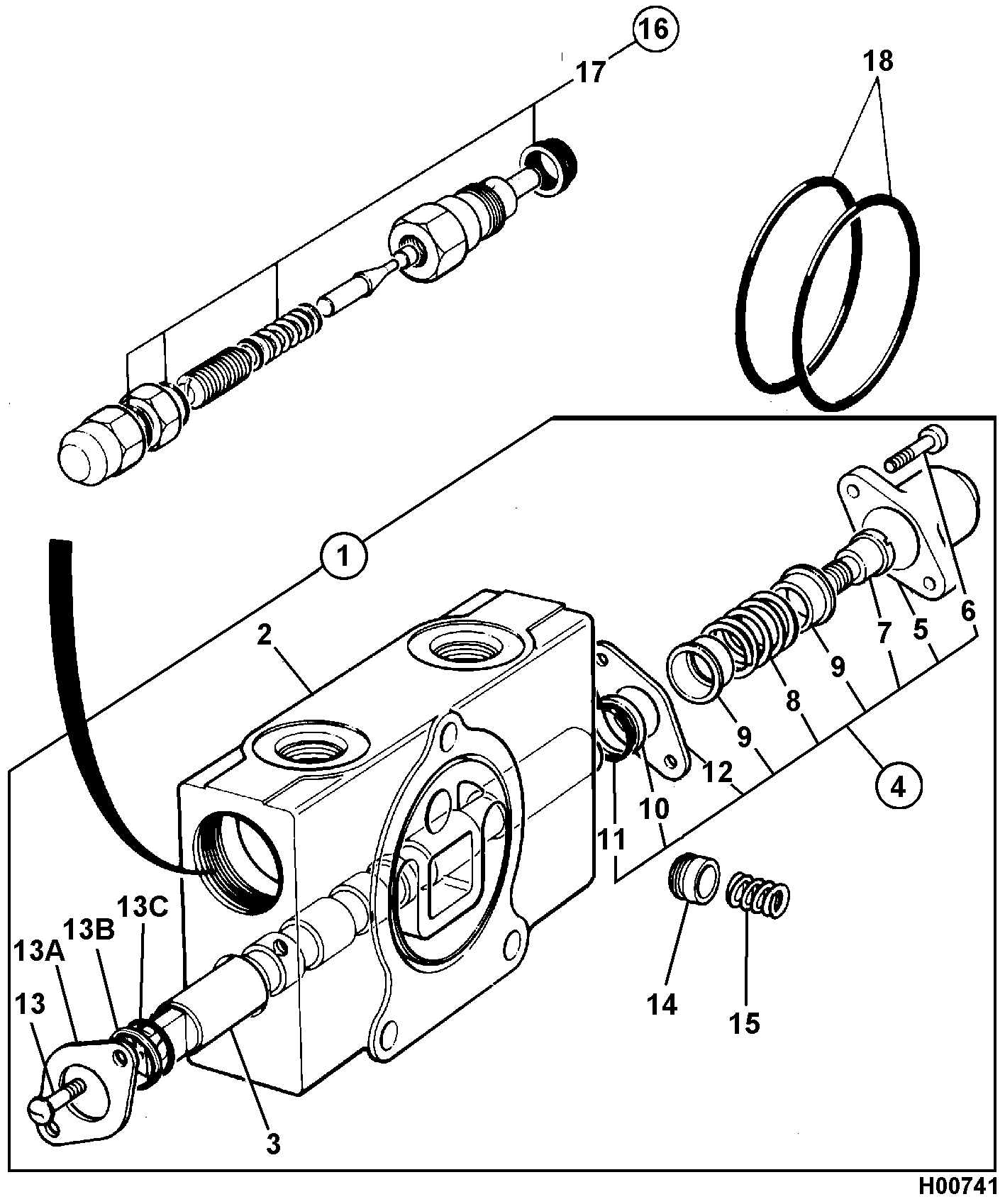

DIAG-E3-3-1-397790 E3-3-1 VALVE, SECTION DOZER WITH AUXILIARY RELIEF VALVE
