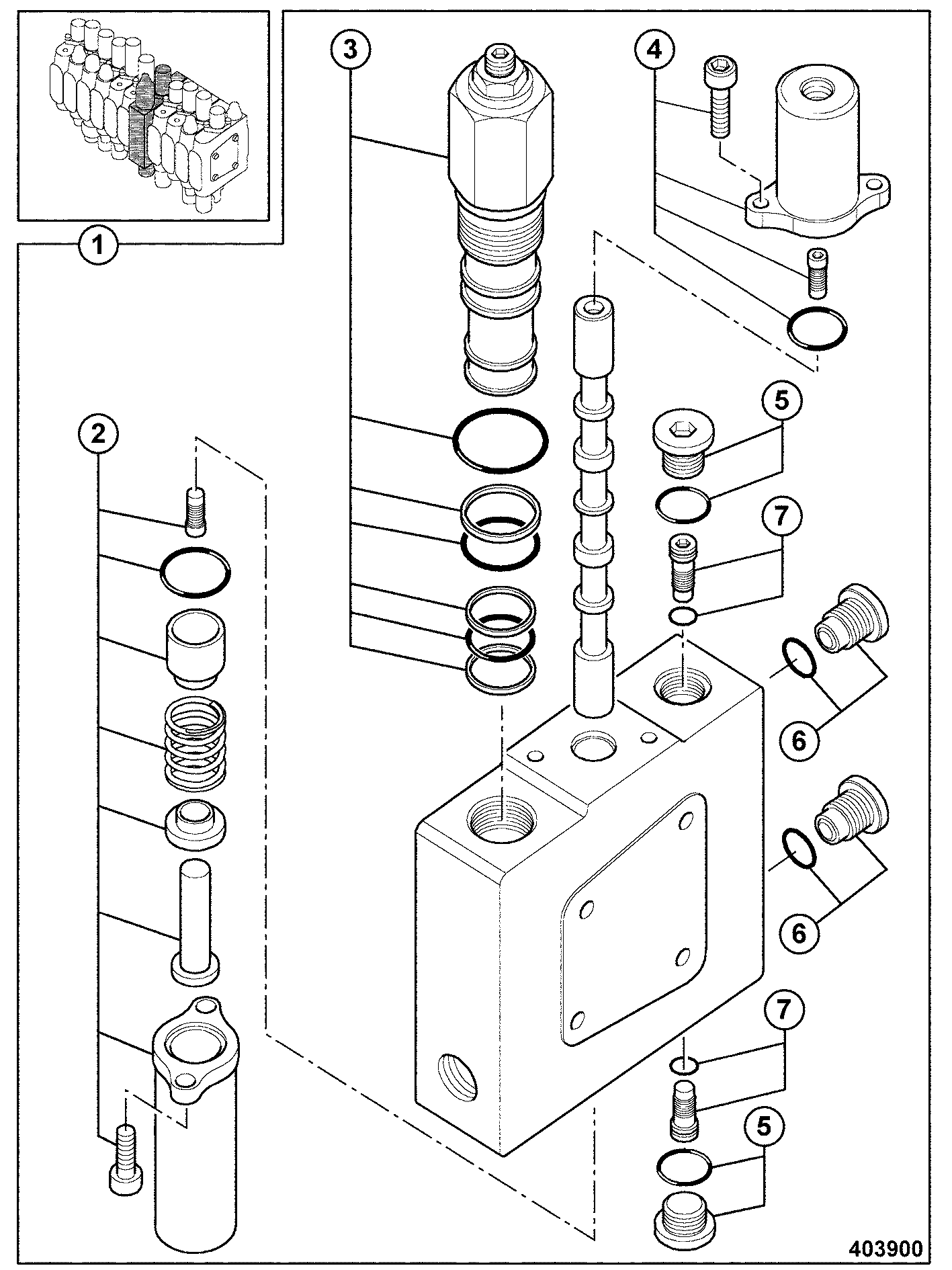

E3-3-9 VALVE, SECTION BOOM BOOST Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Valve Section boom 928/60165	1	AVAILABLE TO ORDER	$2,720.08	Quantity
2	Kit Pilot cap long 928/60180	1	AVAILABLE TO ORDER	$140.42	Quantity
3	KIT, PLUG 25/221420	1	AVAILABLE TO ORDER	$221.14	Quantity
4	Kit plug 928/60179	1	AVAILABLE TO ORDER	$33.03	Quantity
5	Kit pilot cap shor 928/60173	1	AVAILABLE TO ORDER	$349.71	Quantity

Showing 1 to 5 of 5 parts
