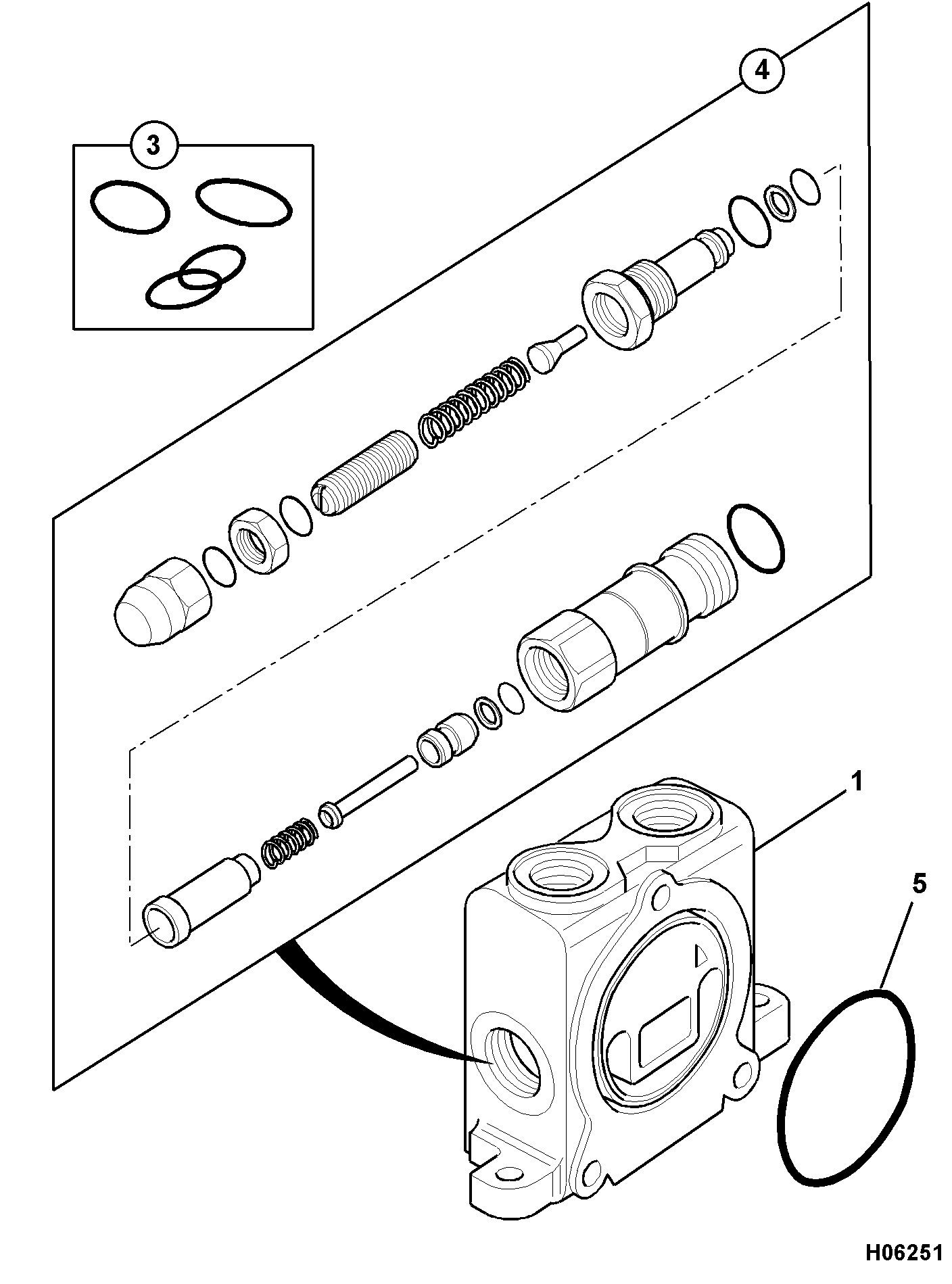

E3-3-6 VALVE SECTION, MRV – 6 SPOOL VALVE Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	VALVE SECTION 25/613802	1	AVAILABLE TO ORDER	$291.60	Quantity
3	KIT SEAL 25/606819	1	1 IN STOCK	$50.13	Quantity
4	VALVE RELIEF 25/616906	1	AVAILABLE TO ORDER	$203.23	Quantity
5	O-RING 25/606812	1	3 IN STOCK	$5.10	Quantity
6	PLUG ASSEMBLY 25/606822	1	AVAILABLE TO ORDER	$13.39	Quantity
7	O RING 25/606116	1	AVAILABLE TO ORDER	$7.84	Quantity

Showing 1 to 6 of 6 parts
