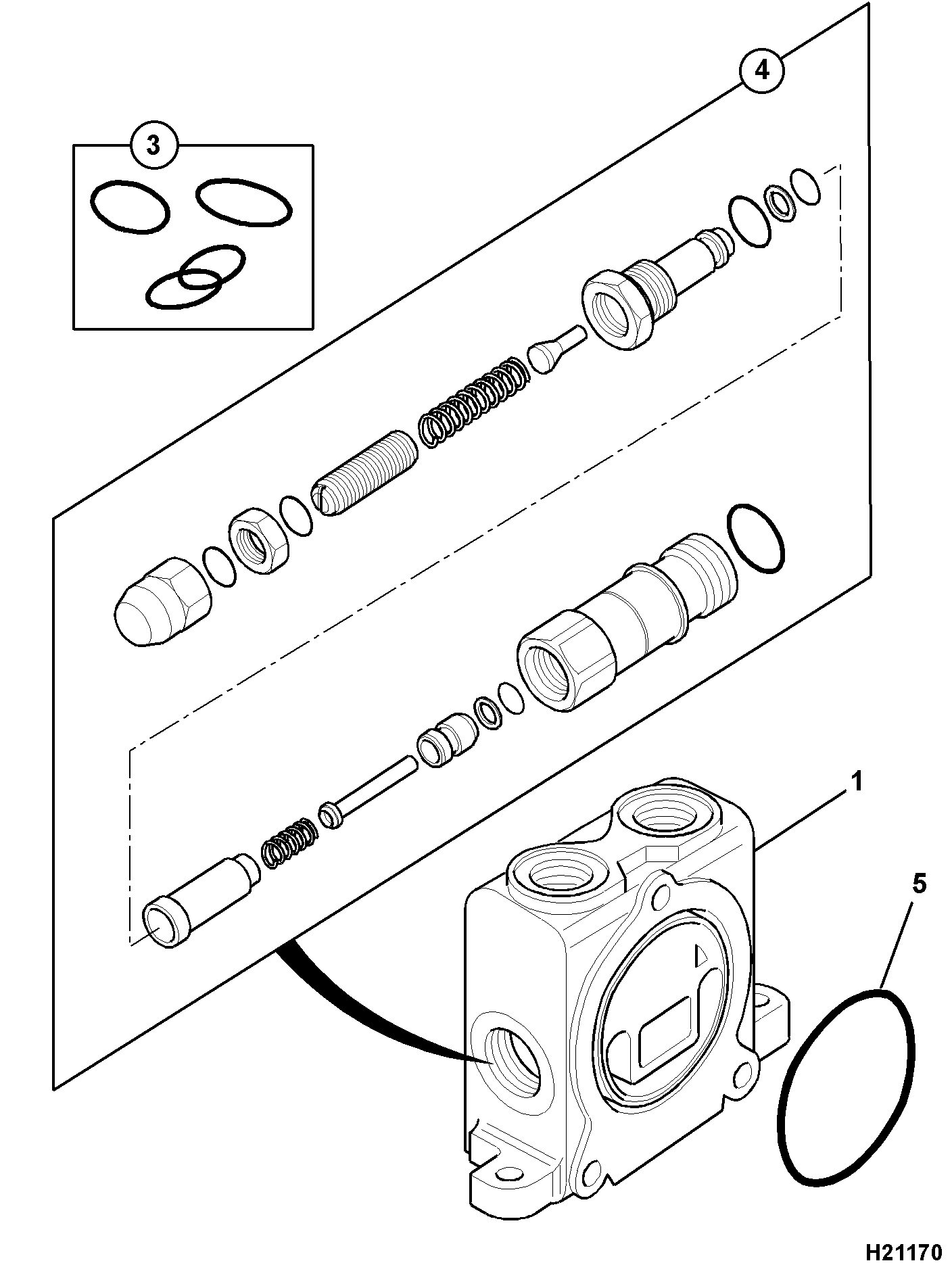

E3-3-3 VALVE SECTION – SLEW Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Valve Slew spool a 25/220658	1	AVAILABLE TO ORDER	$655.99	Quantity
4	CAP-DETENT 25/608608	1	AVAILABLE TO ORDER	$243.07	Quantity
5	CAPSCREW 25/608607	1	AVAILABLE TO ORDER	$38.39	Quantity
7	SEAT SPRING 25/608609	1	AVAILABLE TO ORDER	$14.10	Quantity
8	O RING 25/608606	1	AVAILABLE TO ORDER	$7.99	Quantity
9	O-RING 25/606812	1	3 IN STOCK	$5.10	Quantity

Showing 1 to 6 of 6 parts
