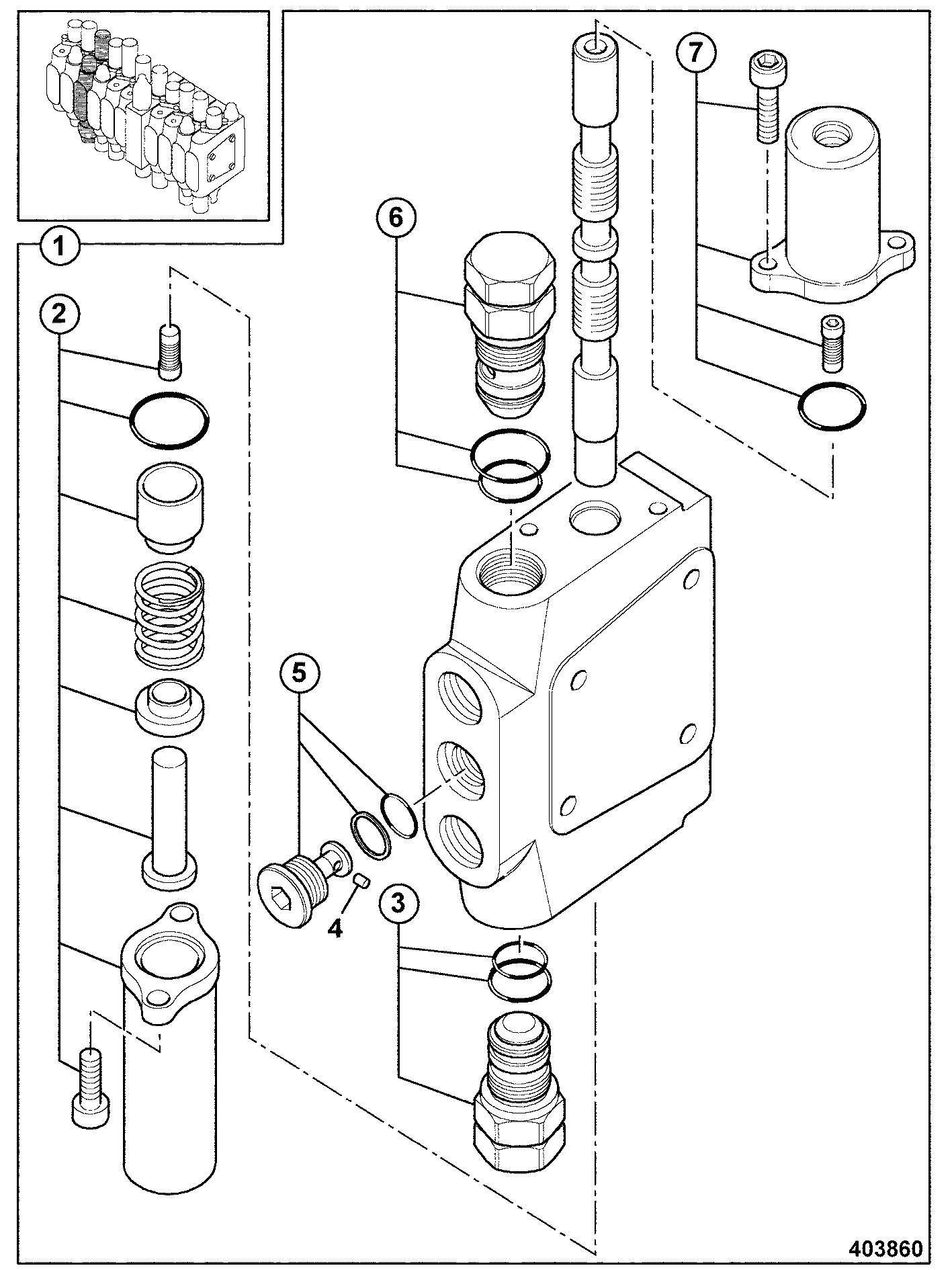

E3-3-2 VALVE, SECTION, BOOM Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Valve section boom 928/60168	1	AVAILABLE TO ORDER	$3,597.23	Quantity
2	Kit pilot cap long 928/60175	1	AVAILABLE TO ORDER	$275.35	Quantity
3	KIT 928/60183	1	AVAILABLE TO ORDER	$727.94	Quantity
4	KIT, PLUG 25/221420	1	AVAILABLE TO ORDER	$221.14	Quantity
5	KIT, ANTI-SHOCK 928/60182	1	AVAILABLE TO ORDER	$449.92	Quantity
6	Kit pilot cap shor 928/60173	1	AVAILABLE TO ORDER	$349.71	Quantity

Showing 1 to 6 of 6 parts

DIAG-E3-3-1-398062 E3-3-1 VALVE, SECTION, TRACK RIGHT HAND
View Diagram
DIAG-E3-3-3-398062 E3-3-3 VALVE, SECTION BUCKET
View Diagram
E3-1-10 VALVE, ASSEMBLY 11 SPOOL & ADAPTERS
View Diagram

Previous Assembly DIAG-E3-3-1-398062 E3-3-1 VALVE, SECTION, TRACK RIGHT HAND Next Assembly DIAG-E3-3-3-398062 E3-3-3 VALVE, SECTION BUCKET
