Scroll to zoom Click a part # to view details

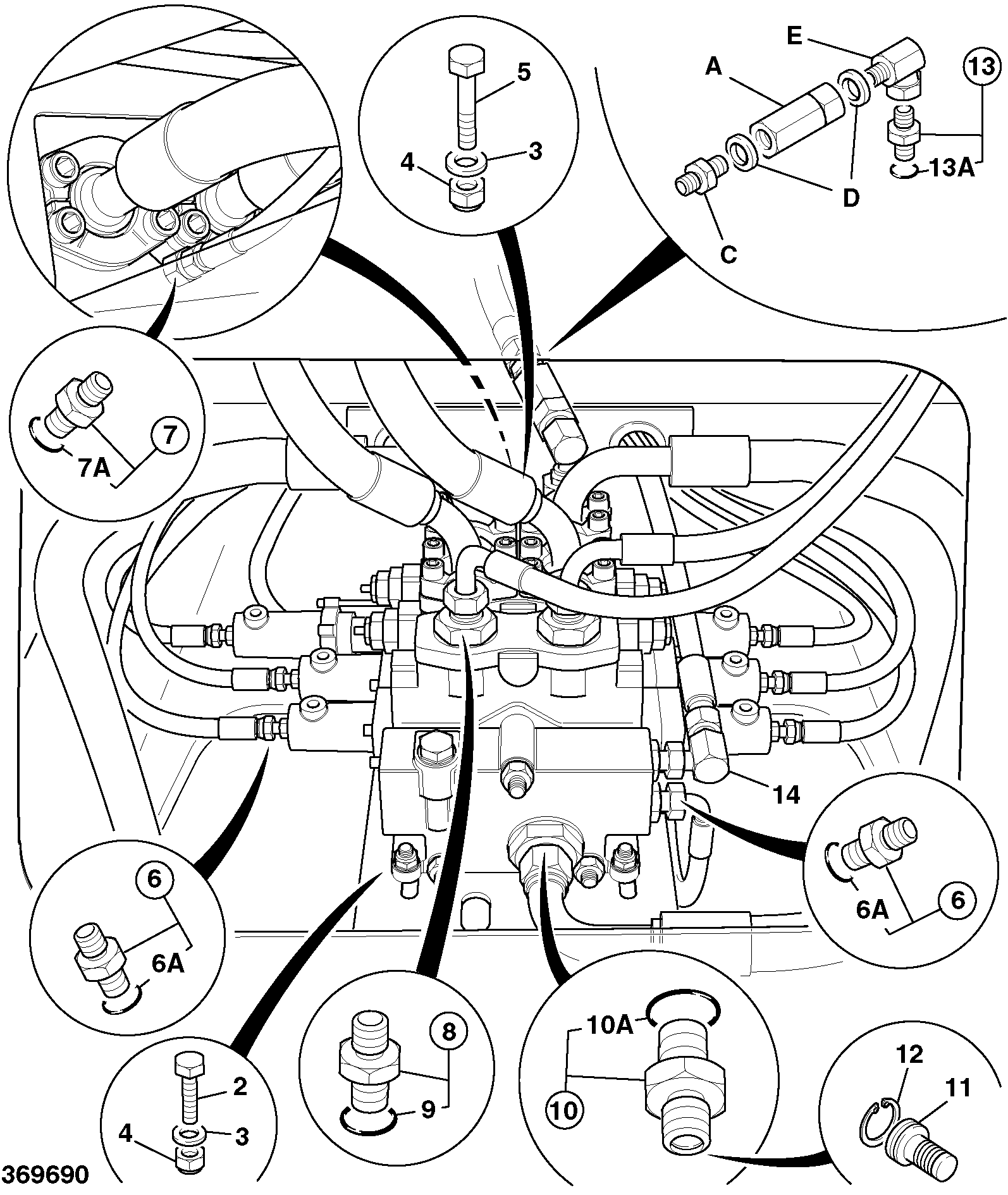

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | SET SCREW M10x35 1315/0409Z | 1 | $8.37 | |||
| 3 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 4 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 5 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 6 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 7 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 8 | ADAPTOR 816/15048 | 1 | $14.46 | |||
| 9 | O-RING 2401/0510 | 1 | $1.46 | |||
| 10 | ADAPTER 816/15175 | 1 | $131.30 | |||
| 10A | O RING 2401/0511 | 1 | $16.19 | |||
| 11 | VALVE CHECK(D1B125-0.2N) 25/993700 | 1 | $294.15 | |||
| 12 | CIRCLIP-INTERNAL 821/00405 | 1 | $17.64 | |||
Showing 1 to 12 of 12 parts
Related Assemblies
-

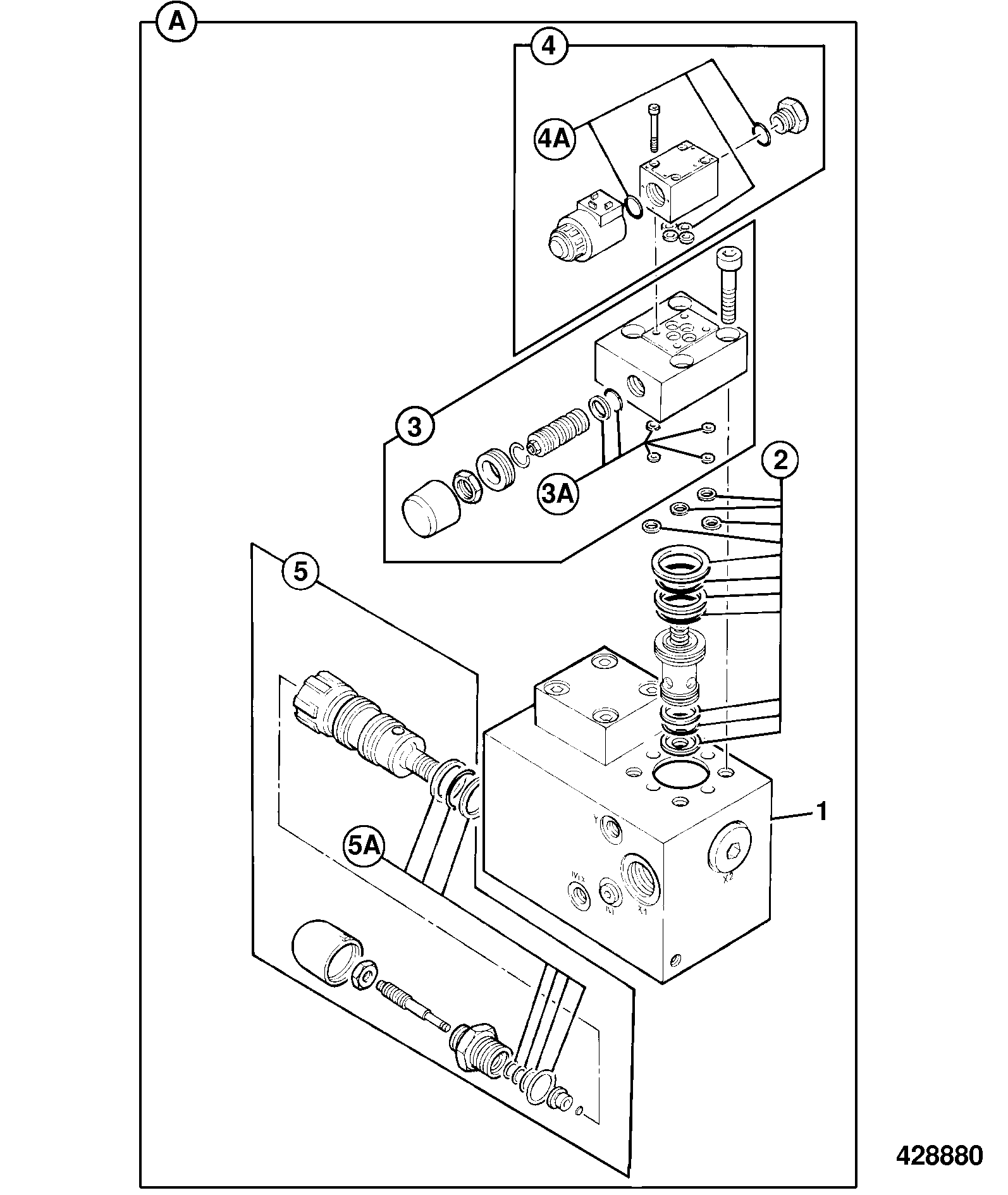

DIAG-E3-2-4-404666-15670468 E3-2-4 VALVE ASSEMBLY 3 SPOOL & ADAPTERS PAGE SUPERCEDED, SEE INDEX
