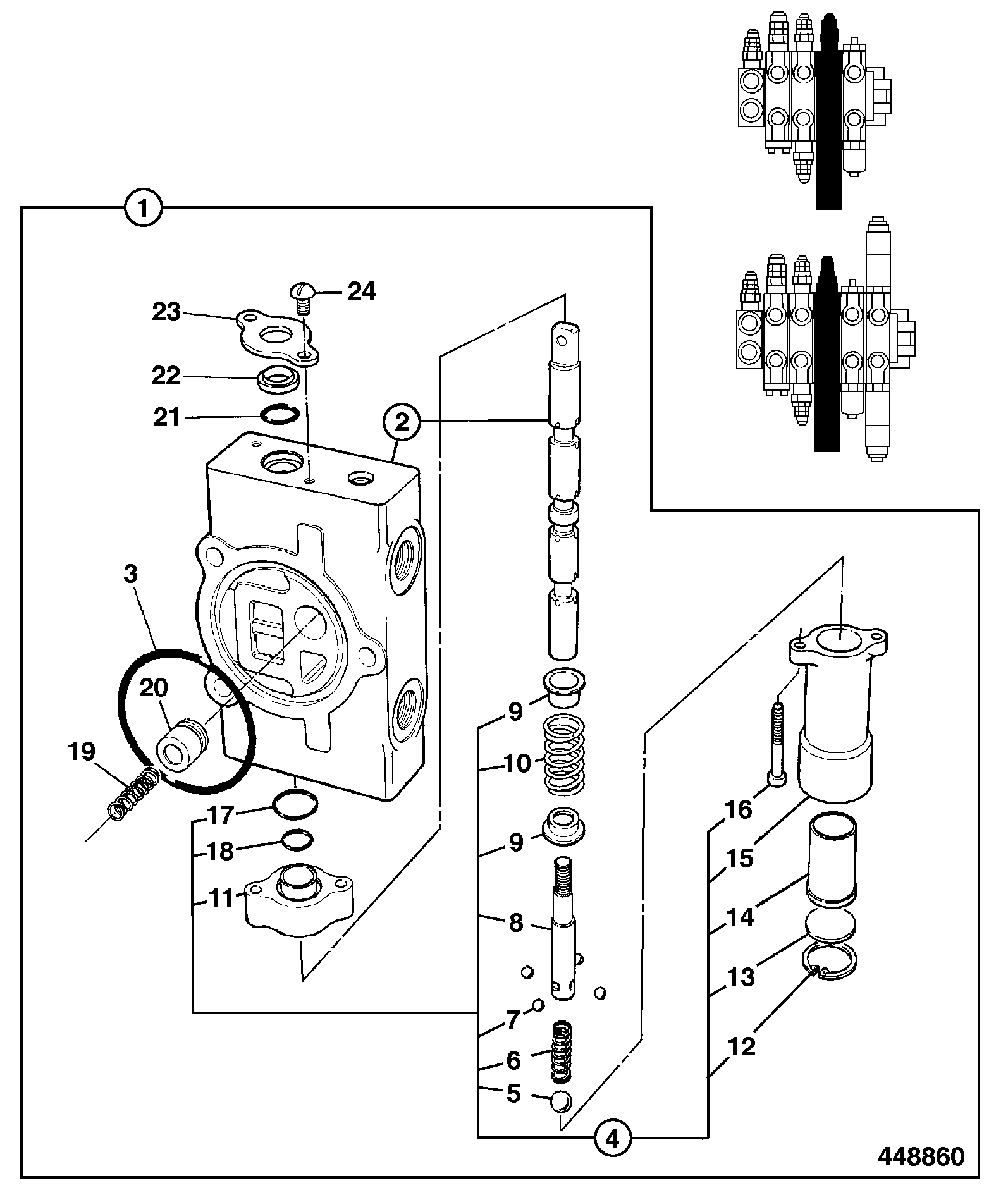

E3-3-1 VALVE SECTION SHOVEL RAM SERVO BUILD Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	O RING 25/608606	1	AVAILABLE TO ORDER	$7.99	Quantity
	VALVE SECTION 25/617207	1	AVAILABLE TO ORDER	$1,193.14	Quantity
1	KIT 25/617213	1	AVAILABLE TO ORDER	$209.86	Quantity

Showing 1 to 3 of 3 parts

DIAG-E3-2-2-404396 E3-2-2 VALVE SECTION LOADER LIFT RAM MANUAL VALVE
View Diagram
DIAG-E3-2-1-404396 E3-2-1 VALVE SECTION LOADER LIFT RAM SERVO BUILD
View Diagram

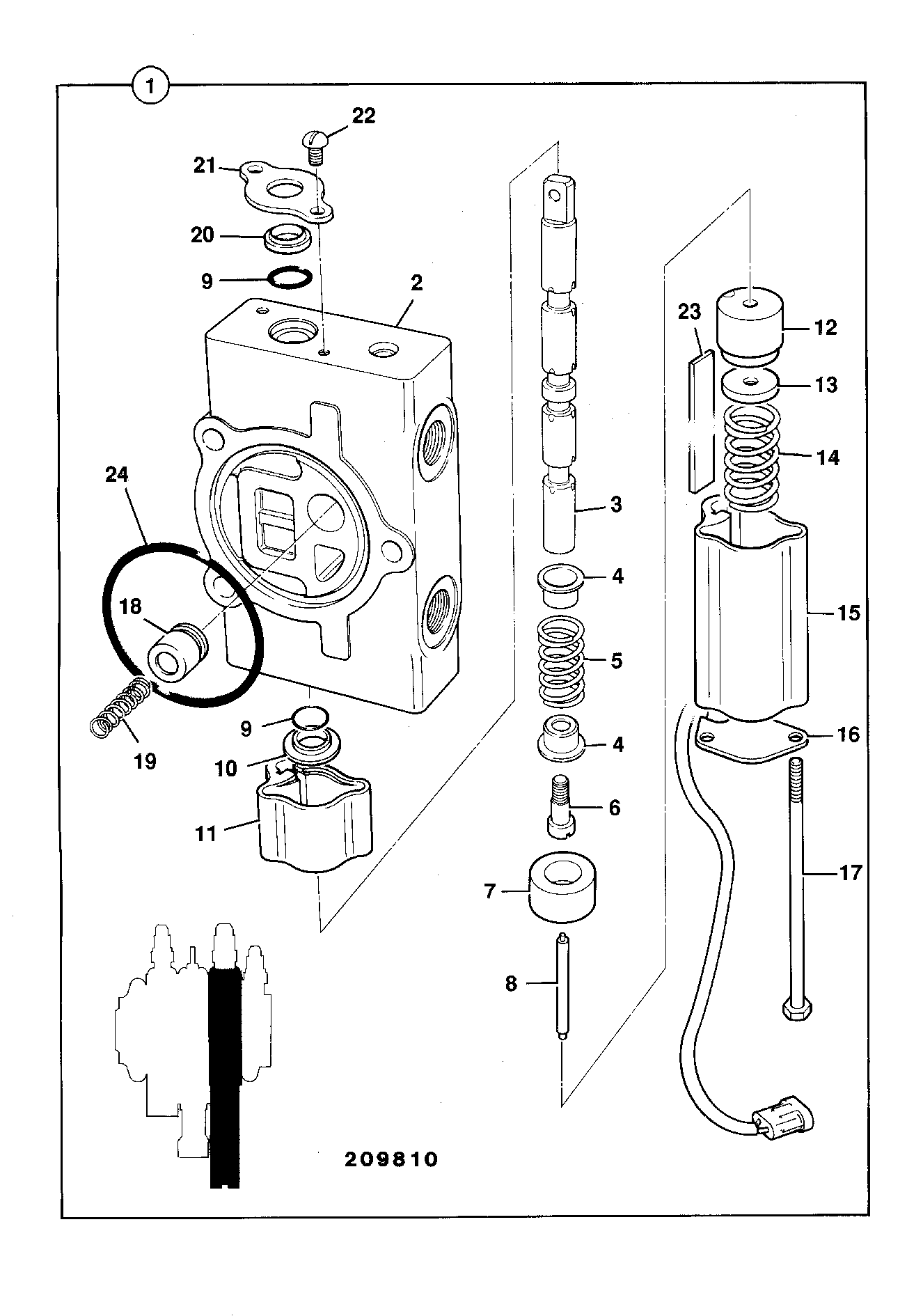

DIAG-E3-3-2-404396-15519037 E3-3-2 VALVE, SECTION MANUAL, WITH RESET
