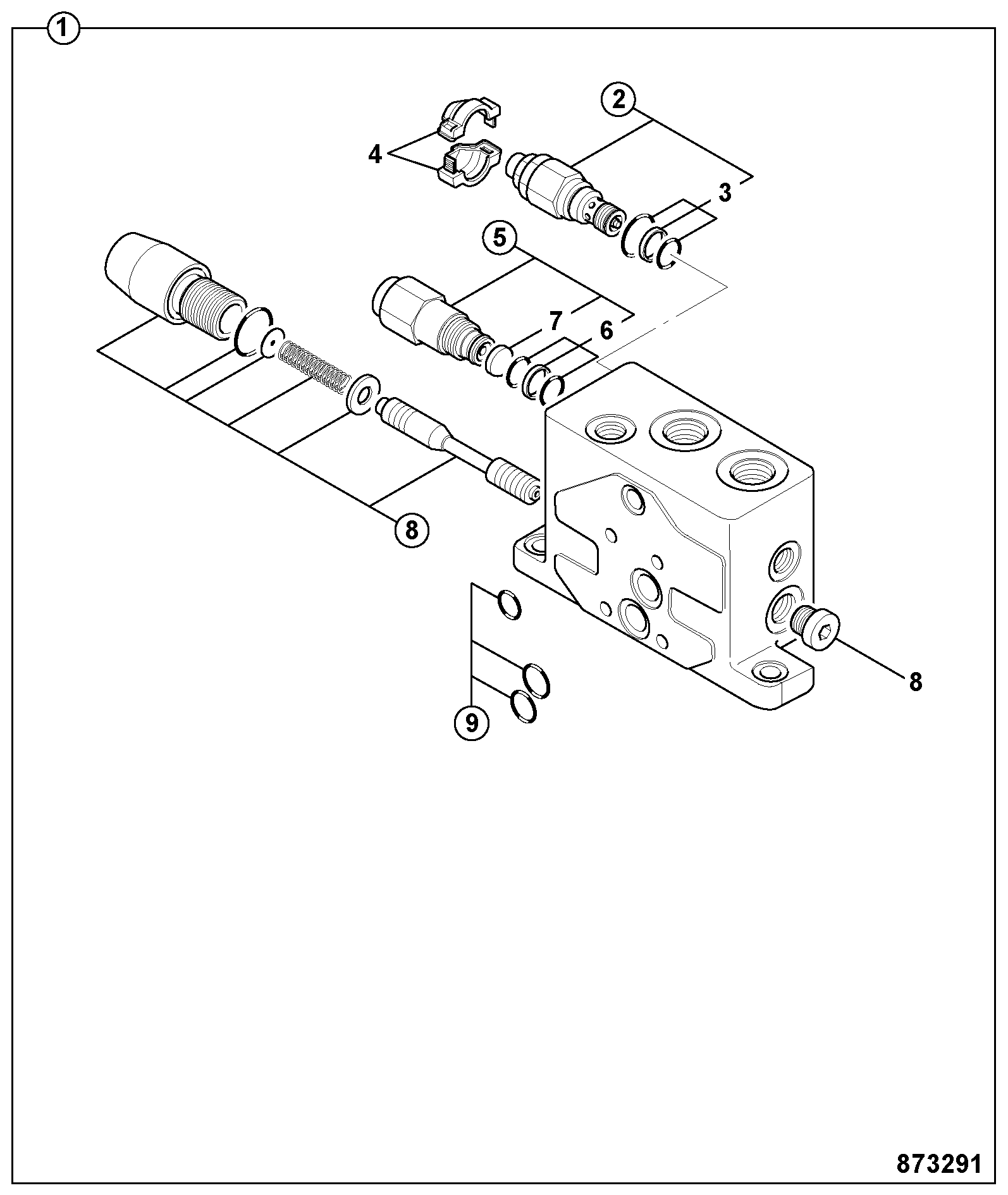

E3-3-1 VALVE AUXILIARY 1 Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Valve Aux 1 Sectio 25/221728	1	AVAILABLE TO ORDER	$2,778.73	Quantity
3	KIT, SEAL - SLICE 25/221904 998/10222	1	AVAILABLE TO ORDER	$197.02	Quantity
4	PLUG 25/221883	1	AVAILABLE TO ORDER	$122.07	Quantity
5	Valve Assy - Lock Up 25/221891	1	AVAILABLE TO ORDER	$877.99	Quantity
7	PLUG 25/221902	1	AVAILABLE TO ORDER	$125.95	Quantity

Showing 1 to 5 of 5 parts

DIAG-E3-2-1-398185 E3-2-1 VALVE INLET SECTION
View Diagram

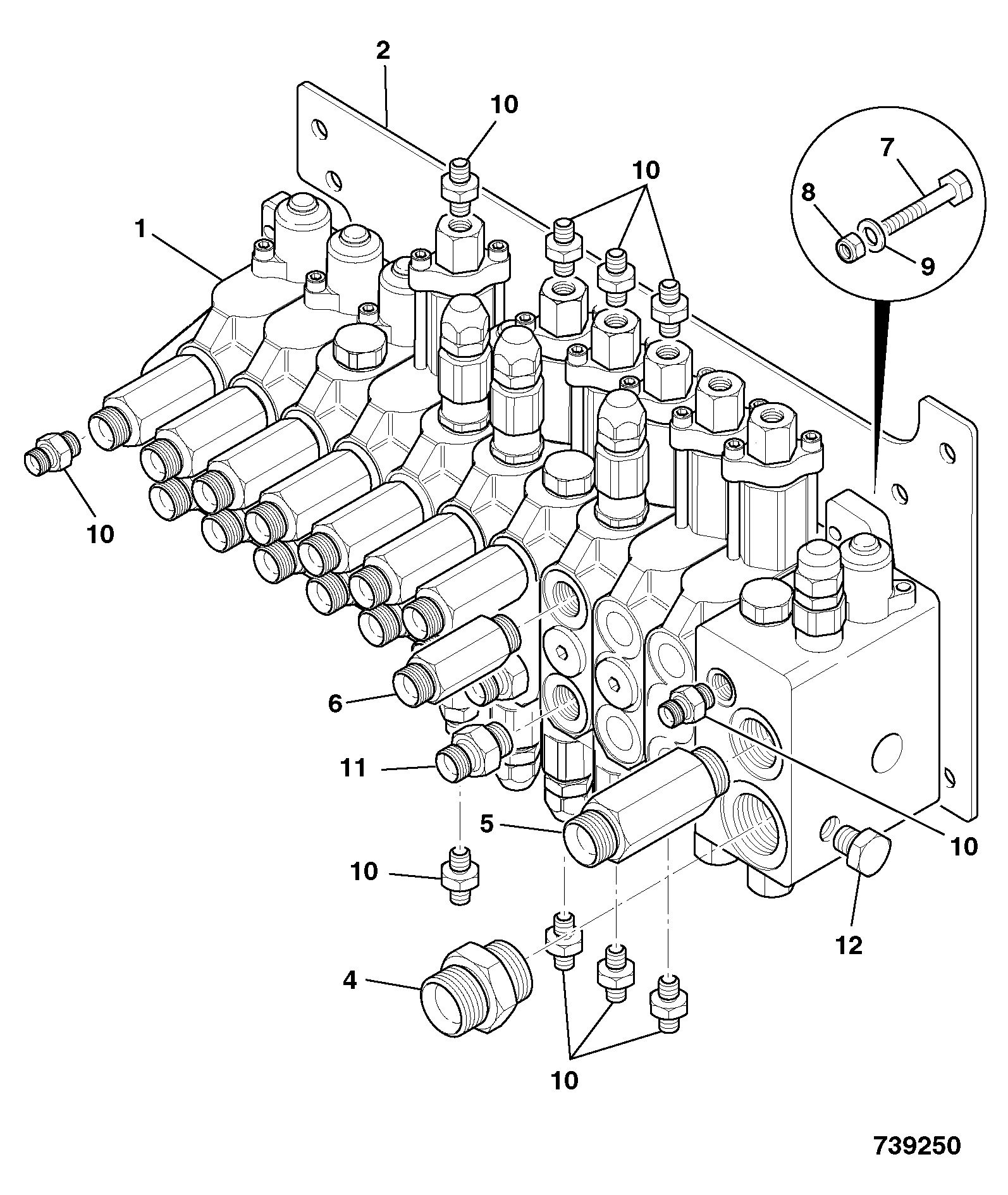

DIAG-E3-1-7-398185 E3-1-7 VALVE 10 PORT ASSEMBLY
View Diagram
DIAG-E3-4-1-398185 E3-4-1 VALVE AUXILIARY 2
View Diagram

Previous Assembly DIAG-E3-2-1-398185 E3-2-1 VALVE INLET SECTION Next Assembly DIAG-E3-4-1-398185 E3-4-1 VALVE AUXILIARY 2
