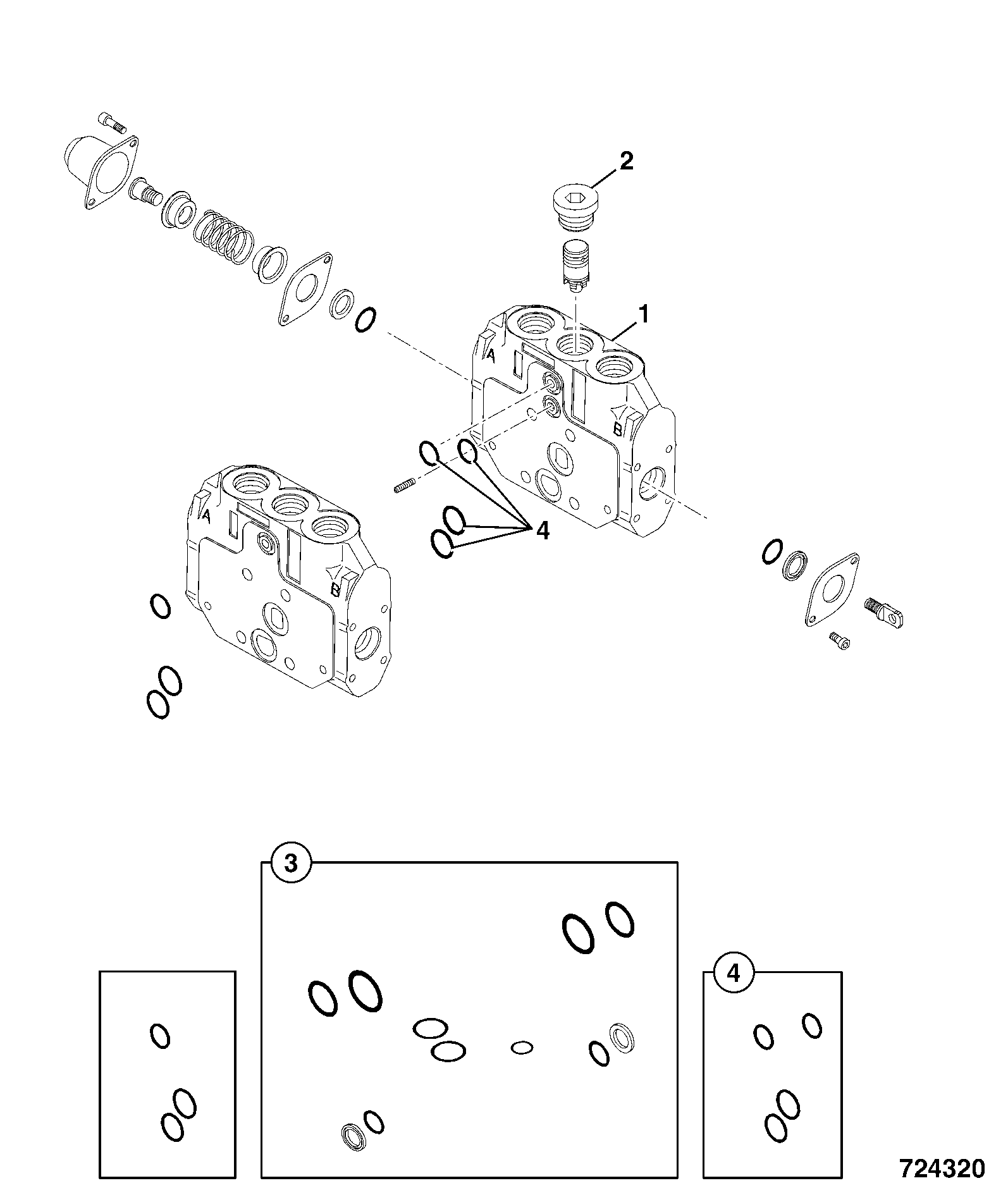

E3-26-1 VALVE SWING SECTION Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Valve Swing Sectio 25/221720	1	AVAILABLE TO ORDER	$3,157.90	Quantity
3	PLUG 25/221902	1	AVAILABLE TO ORDER	$125.95	Quantity
4	SECTION -VALVE 25/221905	1	AVAILABLE TO ORDER	$772.04	Quantity
5	Valve Assy - Lock Up 25/221891	1	AVAILABLE TO ORDER	$877.99	Quantity
7	KIT, SEAL - SLICE 25/221904 998/10222	1	AVAILABLE TO ORDER	$197.02	Quantity

Showing 1 to 5 of 5 parts
