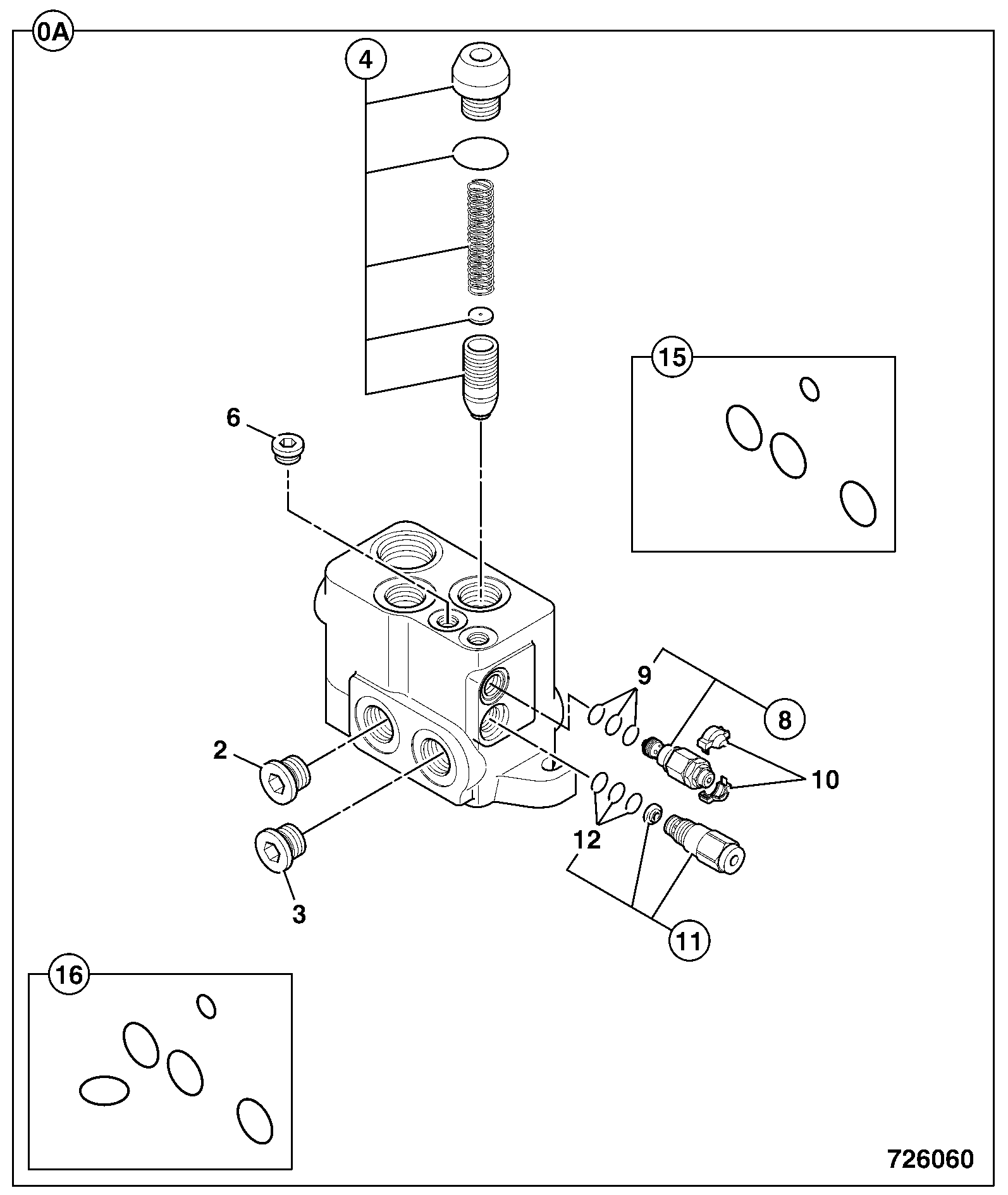

E3-22-10 VALVE BLOCK VARIABLE PUMP Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	Valve Section,Boom 25/223124	1	AVAILABLE TO ORDER	$1,662.98	Quantity
10	KIT, TIE ROD 25/222433	1	AVAILABLE TO ORDER	$452.83	Quantity
12	Kit-seal intersection 400/06407	1	AVAILABLE TO ORDER	$242.82	Quantity
A	Valve 25/223639	1	AVAILABLE TO ORDER	$4,956.42	Quantity

Showing 1 to 4 of 4 parts

DIAG-E3-22-11-400712 E3-22-11 VALVE BLOCK VARIABLE PUMP,SRS
View Diagram
DIAG-E3-22-2-400712 E3-22-2 VALVE BLOCK,LSP,SRS
View Diagram
DIAG-E3-23-1-400712 E3-23-1 INLET VALVE,LSP
View Diagram

Previous Assembly DIAG-E3-22-2-400712 E3-22-2 VALVE BLOCK,LSP,SRS Next Assembly DIAG-E3-22-11-400712 E3-22-11 VALVE BLOCK VARIABLE PUMP,SRS
