Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| BODY ASSY 25/202801 | 1 | $3,309.01 | ||||
| KIT TIE ROD 25/994300 | 1 | $2,071.52 | ||||
| KIT-END COVER 25/987606 | 1 | $410.90 | ||||
| KIT-SEAL 25/987605 | 1 | $95.85 | ||||
| KIT-SEAL - ATB 25/202001 | 1 | $996.73 | ||||
| VALVE RELIEF 5050 - ATB 25/977706 | 1 | $1,876.85 | ||||
| VALVE SECTION AUXILLARY 25/994200 | 1 | $5,873.73 | ||||
| VALVE SECTION LIFT 25/987402 | 1 | $9,046.64 | ||||
| VALVE, SECTION - BUCKET 25/987602 | 1 | $10,490.56 | ||||
| 1 | VALVE ASSEMBLY 3 S 25/202900 | 1 | $18,193.23 | |||
| 1 | VALVE ASSY 25/987600 | 1 | $4,456.41 | |||
| 2 | SET SCREW M10x35 1315/0409Z | 1 | $8.37 | |||
| 3 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 4 | HEX.BOLT M10x50 LG 1315/3412Z 1315/3412D | 1 | $5.17 | |||
| 5 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 6 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 6 | O-RING 828/00237 | 1 | $0.20 | |||
| 7 | ADAPTOR G1/4A-7/16UNF(M) 1620/2050 | 1 | $2.60 | |||
| 8 | O-RING 2401/0503 | 1 | $0.54 | |||
| 8 | PRESSURE TEST ADAPTOR 45/904100 | 1 | $49.44 | |||
| 9 | ADAPTOR 816/15048 | 1 | $14.46 | |||
| 10 | O-RING 2401/0510 | 1 | $1.46 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

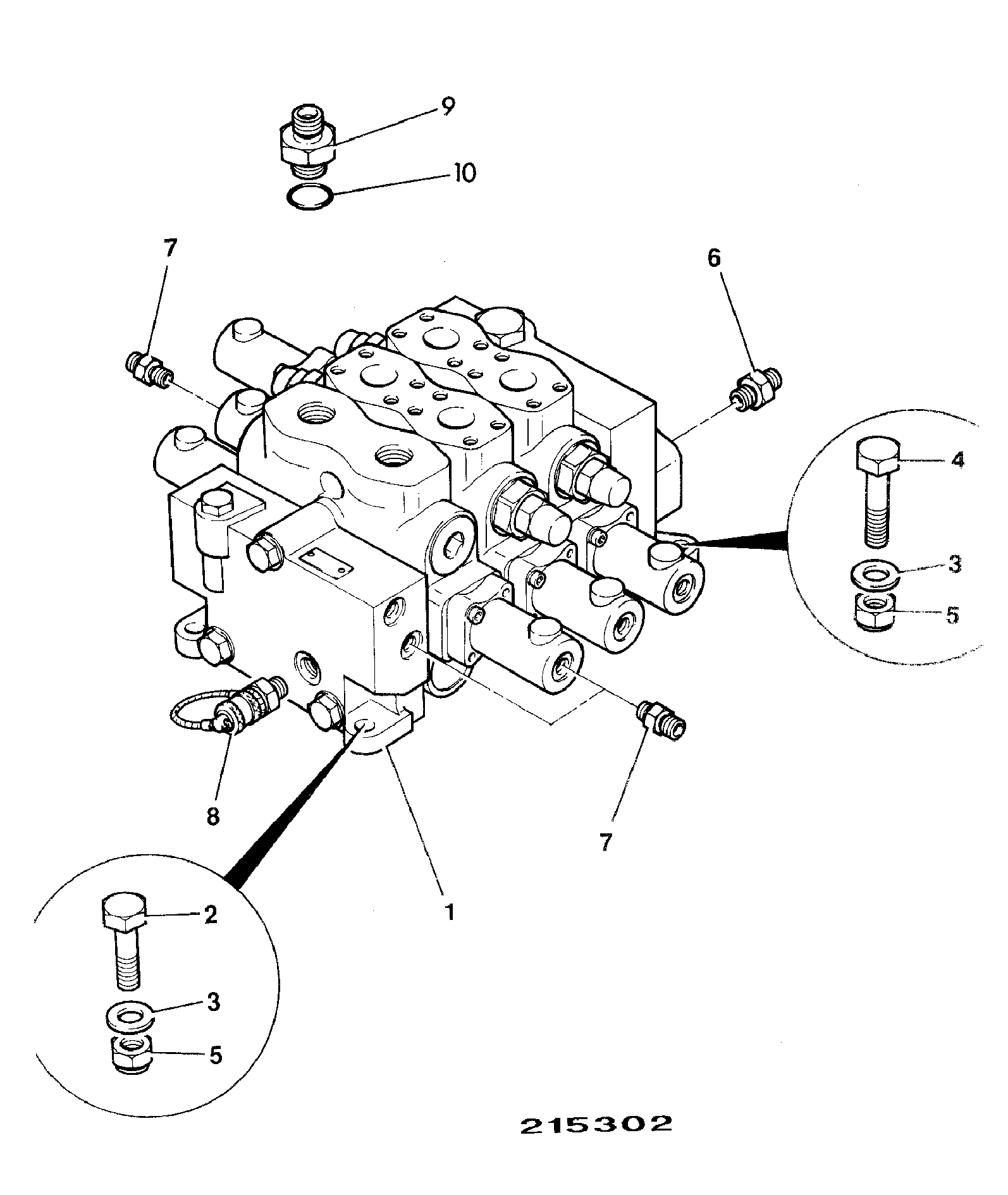

DIAG-E3-2-5-404663-15668211 E3-2-5 VALVE ASSEMBLY 3 SPOOL & ADAPTERS Z BAR
View Diagram -

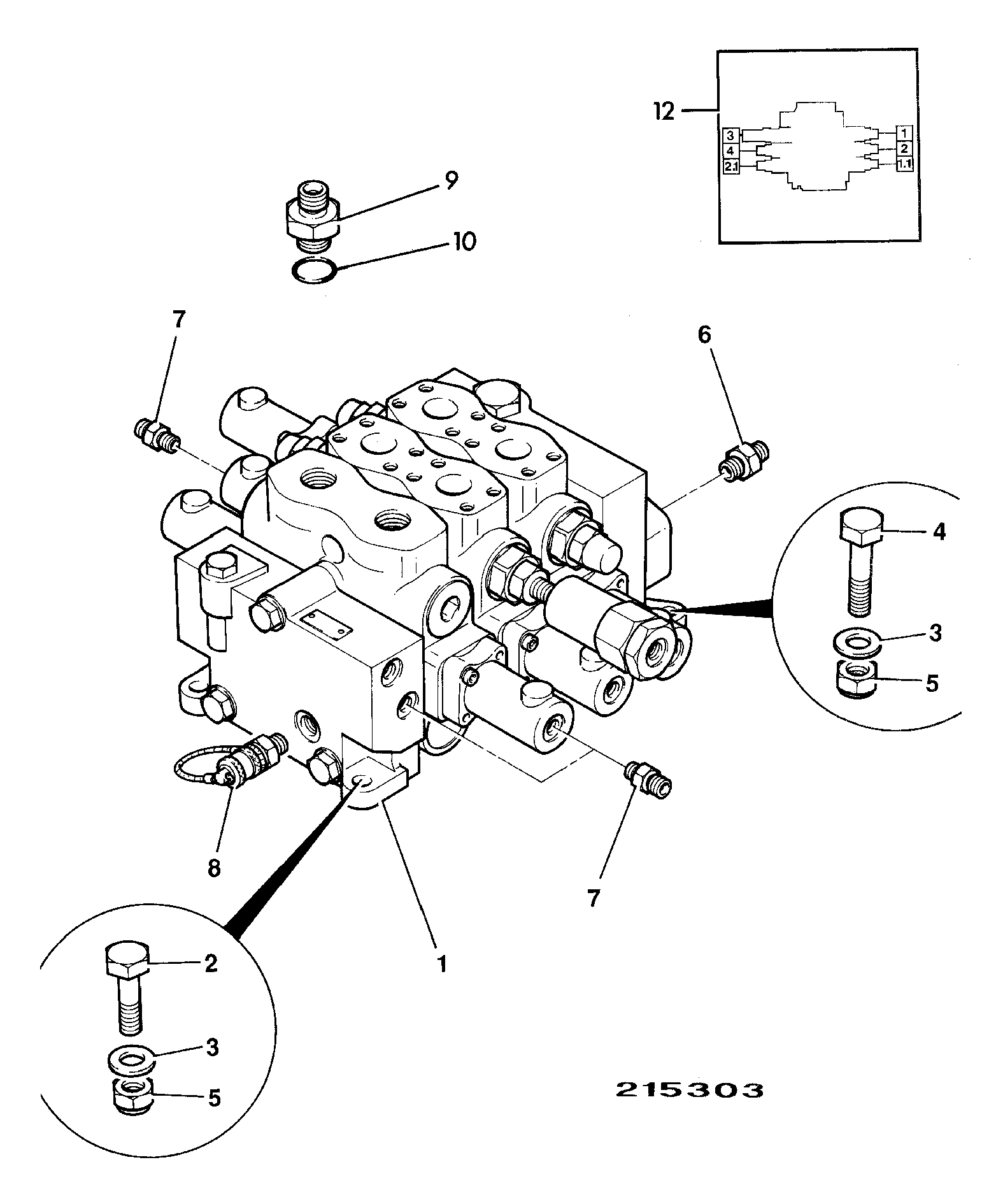

DIAG-E3-2-4-404663-15668209 E3-2-4 VALVE ASSEMBLY 3 SPOOL & ADAPTERS
View Diagram -
DIAG-E3-2-4-404663-15668208 E3-2-4 VALVE ASSEMBLY 3 SPOOL & ADAPTERS
View Diagram
