E3-2-30 VALVE, LOADER MAIN RELIEF Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Valve loader, 3 sp 25/223695	1	AVAILABLE TO ORDER	$4,767.80	Quantity
1	VALVE RELIEF 25/222659 25/618901	1	AVAILABLE TO ORDER	$241.11	Quantity
2	KIT-REPAIR RELIEF 25/618902	1	AVAILABLE TO ORDER	$61.39	Quantity

Showing 1 to 3 of 3 parts

DIAG-E3-2-25-395124-11257316 E3-2-25 VALVE, SECTION LIFT, 2 & 3 SPOOL MECHANICAL DETENT, LOADER VALVE
View Diagram

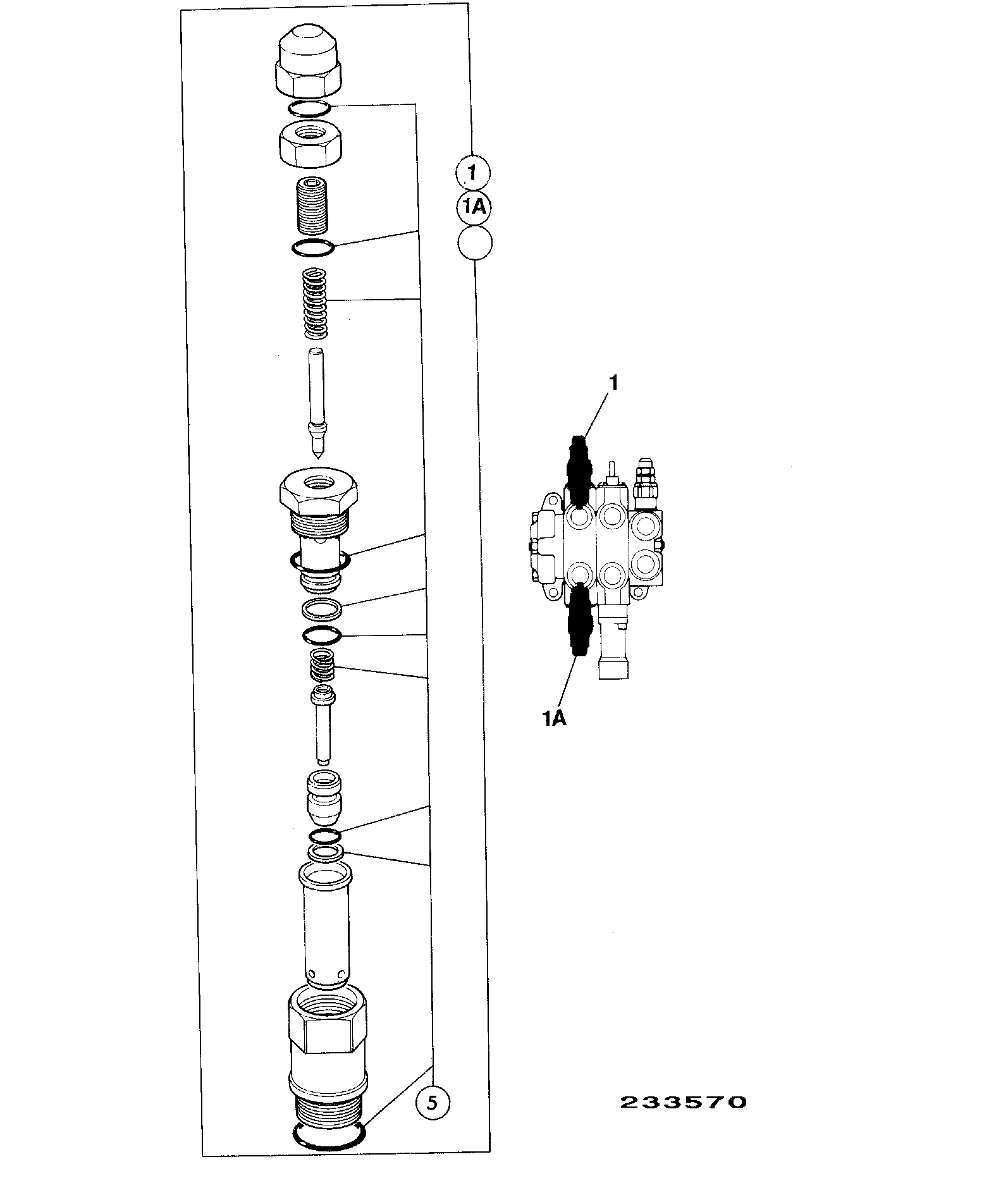

DIAG-E3-2-35-395124-11257327 E3-2-35 VALVE, LOADER AUXILIARY RELIEF 2 & 3 SPOOL
