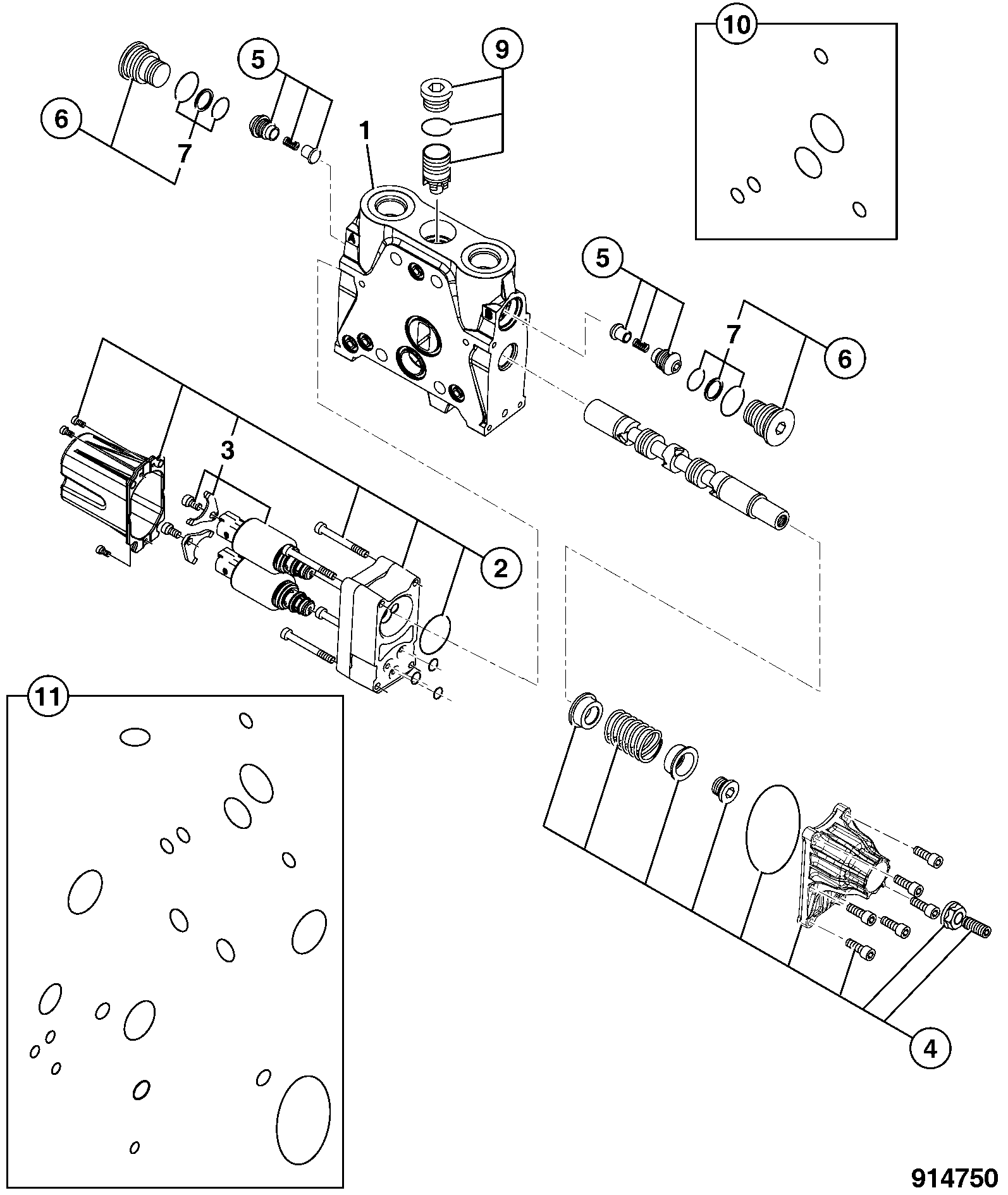

E3-2-22 AUX VALVE ELECTRIC SERVO Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Valve Auxiliary,Se 332/D9372	1	AVAILABLE TO ORDER	$4,889.62	Quantity
3	Kit Solenoid 333/C4058	1	AVAILABLE TO ORDER	$1,067.95	Quantity
5	Kit-valve check va 25/223223	1	AVAILABLE TO ORDER	$113.51	Quantity
6	VALVE RELIEF 25/221882	1	AVAILABLE TO ORDER	$978.93	Quantity
7	Valve Assy - Lock Up 25/221891	1	AVAILABLE TO ORDER	$877.99	Quantity

Showing 1 to 5 of 5 parts

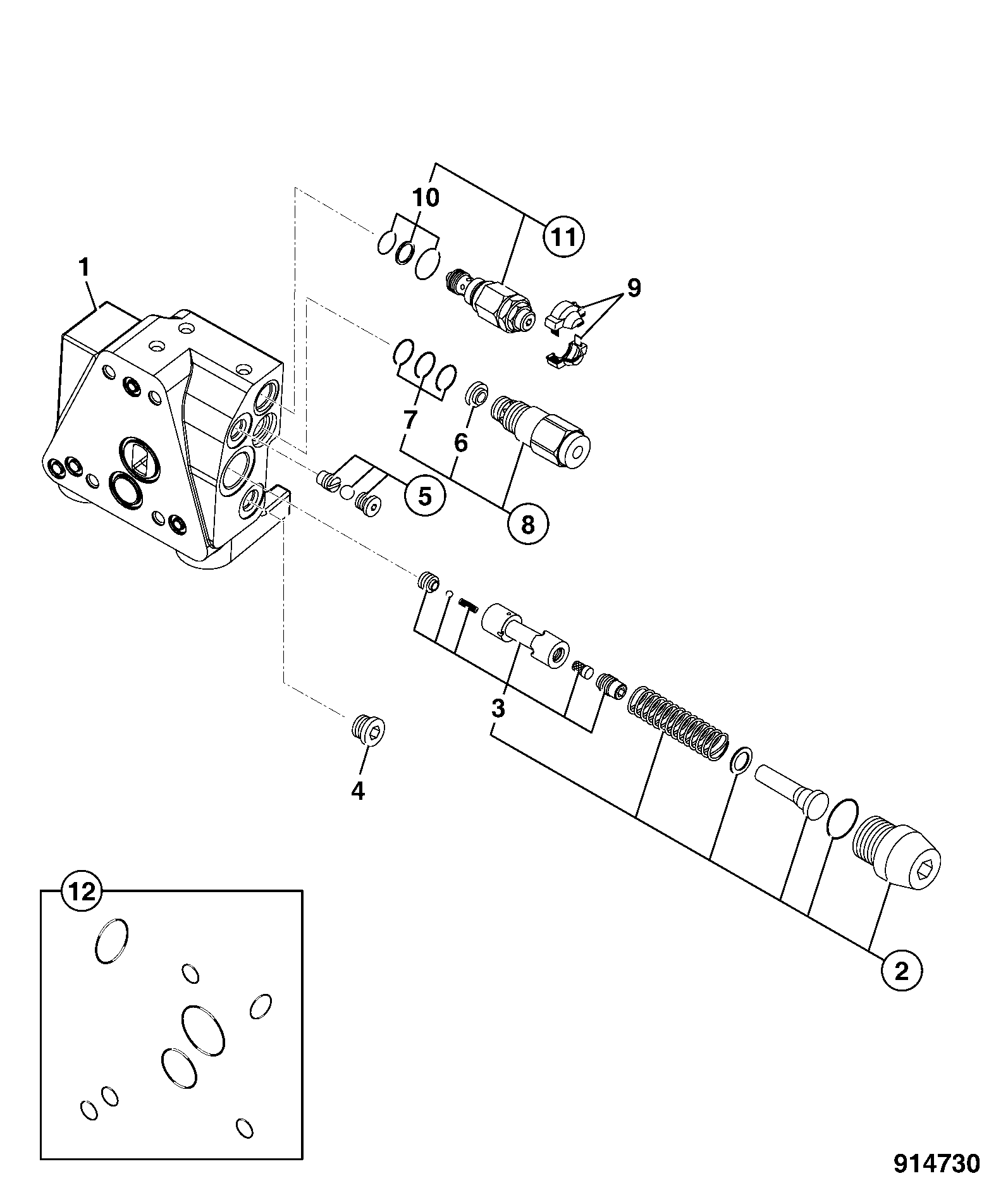

DIAG-E3-2-21-400911 E3-2-21 INLET VALVE ELECTRIC SERVO
View Diagram
DIAG-E3-2-23-400911 E3-2-23 TILT VALVE ELECTRIC SERVO
View Diagram
DIAG-E3-2-24-400911 E3-2-24 EXT VALVE ELECTRIC SERVO
View Diagram

Previous Assembly DIAG-E3-2-21-400911 E3-2-21 INLET VALVE ELECTRIC SERVO Next Assembly DIAG-E3-2-23-400911 E3-2-23 TILT VALVE ELECTRIC SERVO
