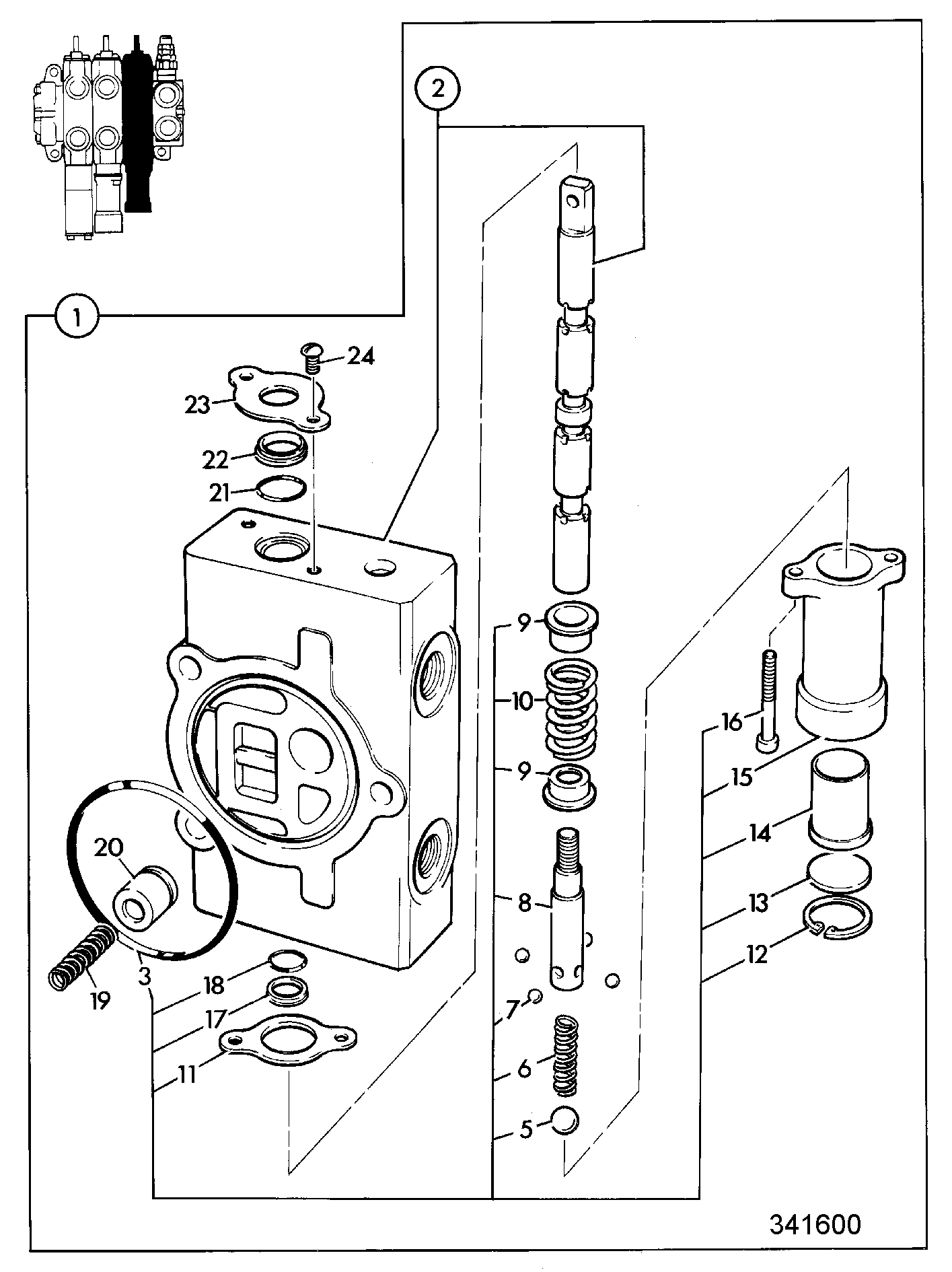

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| KIT-REPAIR RELIEF 25/618902 | 1 | $61.39 | ||||
| KIT-SEAL 25/974633 | 1 | $36.15 | ||||
| SEAL 25/222305 | 1 | $43.04 | ||||
| 00A | VALVE LOADER 3sp unloader +reset 333/C8734 | 1 | $3,634.05 | |||
| 5 | Kit Spool cap asse 25/222668 | 1 | $86.31 | |||
| 9 | SPACER 25/608206 | 1 | $4.72 | |||
| 10 | SEAT SPRING 25/608201 | 1 | $35.44 | |||
| 11 | CAPSCREW 25/606110 25/606110A | 1 | $1.64 | |||
| 12 | PLATE, SEAL 25/222198 | 1 | $7.45 | |||
| 13 | WIPER SEAL 25/222661 | 1 | $48.55 | |||
| 14 | SEAL 25/221208 | 1 | $38.59 | |||
| 15 | KIT-REPAIR 25/974649 | 1 | $130.92 | |||
| 16 | SCREW 25/608204 | 1 | $20.60 | |||
| 17 | CAPSCREW 25/608607 | 1 | $38.39 | |||
| 18 | PLATE SEAL 25/974606 | 1 | $3.58 | |||
| 19 | Spring 25/222670 | 1 | $14.68 | |||
| 20 | O RING 25/974605 | 1 | $5.88 | |||
| 22 | Spacer 25/222671 | 1 | $16.07 | |||
| 23 | PLATE-SEAL 25/975702 | 1 | $13.26 | |||
| 25 | Kit spool end assy 25/222412 | 1 | $349.04 | |||
| 26 | Screw 25/974622 333/Y0839 | 1 | $5.75 | |||
| 27 | COVER 25/222199 25/606108 | 1 | $28.26 | |||
| 28 | Sleeve 25/222672 | 1 | $41.91 | |||
| 29 | BALL 5MM DIA 25/974621 | 1 | $6.87 | |||
| 30 | Cap Spool end 25/222673 | 1 | $122.39 | |||
| 31 | Plate seal 25/222674 | 1 | $10.23 | |||
| 32 | Retainer 25/974615 | 1 | $10.85 | |||
| 33 | Spacer 25/222675 | 1 | $14.46 | |||
| 34 | Spring 25/974619 | 1 | $5.82 | |||
| 38 | Kit Std Spool Glan 25/221140 25/222660 | 1 | $36.81 | |||
| 39 | BOLT 25/606101 25/606101A | 1 | $0.71 | |||
| 43 | Kit float spool gl 25/222669 | 1 | $75.16 | |||
| 44 | SCREW 25/606839 | 1 | $0.71 | |||
| 47 | HOUSING 25/974608 | 1 | $11.19 | |||
| 48 | SPACER 25/974609 | 1 | $9.52 | |||
| 50 | O RING 25/974607 | 1 | $8.36 | |||
| 51 | PLUG 25/974631 | 1 | $49.98 | |||
| 53 | Spring 25/974629 | 1 | $9.52 | |||
| 54 | PLUG KIT 25/222414 | 1 | $85.66 | |||
| 54A | PLUG 25/612835 25/974644 | 1 | $27.36 | |||
| 55 | SPRING 25/606117 | 1 | $10.58 | |||
| 56 | SEAT 25/974645 | 1 | $6.29 | |||
| 57 | KIT 25/221746 | 1 | $50.57 | |||
| 57A | CAP 25/606111 | 1 | $15.33 | |||
| 58 | SPRING 25/606113 | 1 | $2.59 | |||
| 59 | SEAT 25/606114 | 1 | $33.03 | |||
| 60 | PLUG SHUT-OFF ASSE 25/612834 | 1 | $40.92 | |||
| 71 | VALVE RELIEF 25/222659 25/618901 | 1 | $241.11 | |||
| 72 | VALVE 25/974643 | 1 | $394.24 | |||
| 73 | RELIEF VALVE 310 bar 25/222416 333/C8658 | 1 | $347.12 | |||
| 74 | RELIEF VALVE 172 bar 25/222415 333/C8654 | 1 | $346.98 | |||
Showing 1 to 51 of 51 parts
