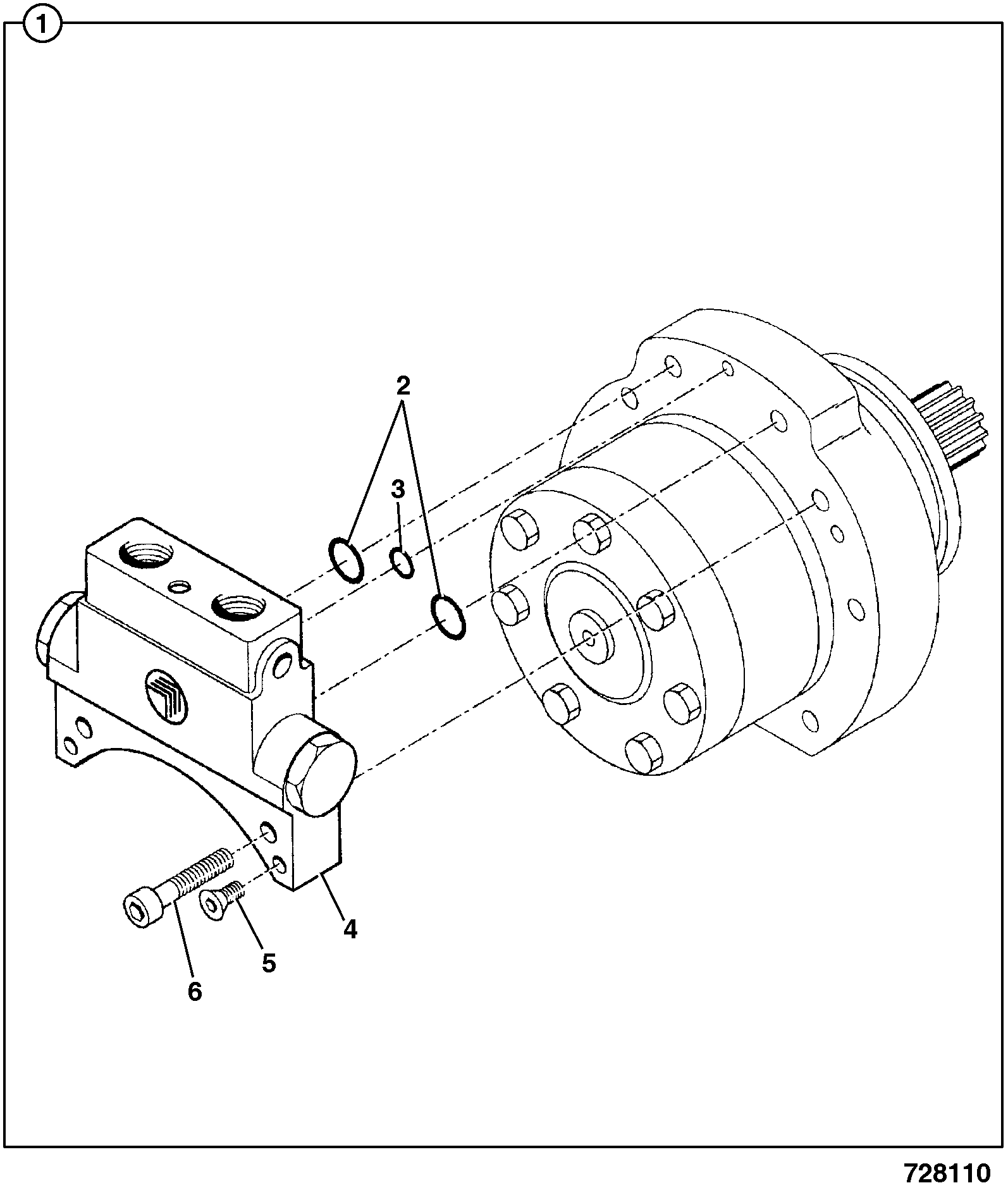

E3-14-4 VALVE TRACK GEARBOX Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	O-RING 20/951885	1	AVAILABLE TO ORDER	$8.50	Quantity
2	O-RING 20/951886	1	AVAILABLE TO ORDER	$8.88	Quantity
3	VALVE 50/200167 20/951887	1	AVAILABLE TO ORDER	$2,020.44	Quantity
4	Screw 20/951889	1	AVAILABLE TO ORDER	$20.89	Quantity
5	Screw 20/951888	1	AVAILABLE TO ORDER	$21.19	Quantity

Showing 1 to 5 of 5 parts

DIAG-E3-14-3-398241 E3-14-3 PAGE SUPERSEDED SEE E3-14-4 VALVE,TRACK GEARBOX ,MICRO
View Diagram
DIAG-E4-2-1-398241 E4-2-1 RAM BOOM
View Diagram

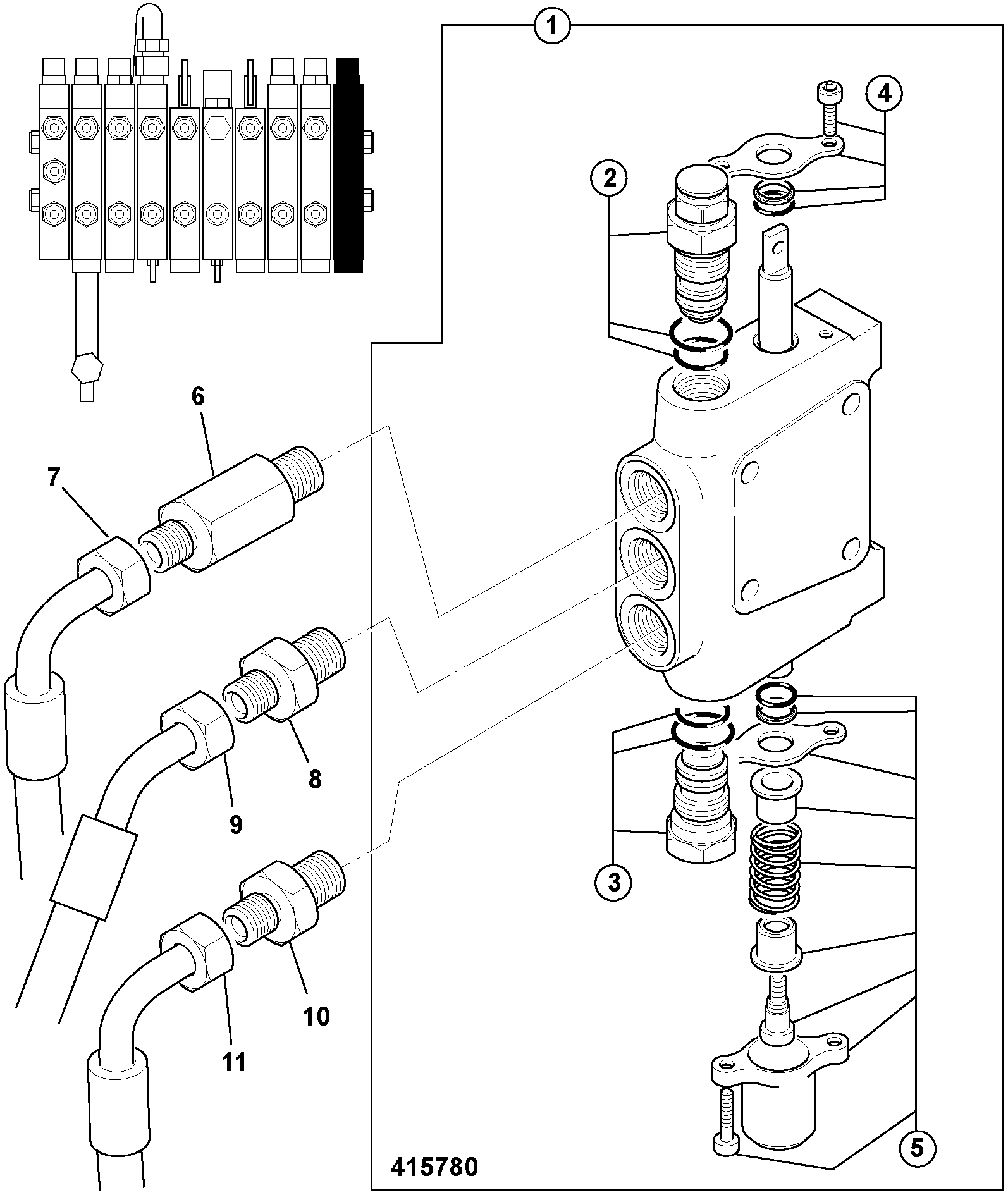

DIAG-E3-14-1-398241 E3-14-1 VALVE SECTION R.H. TRACK
