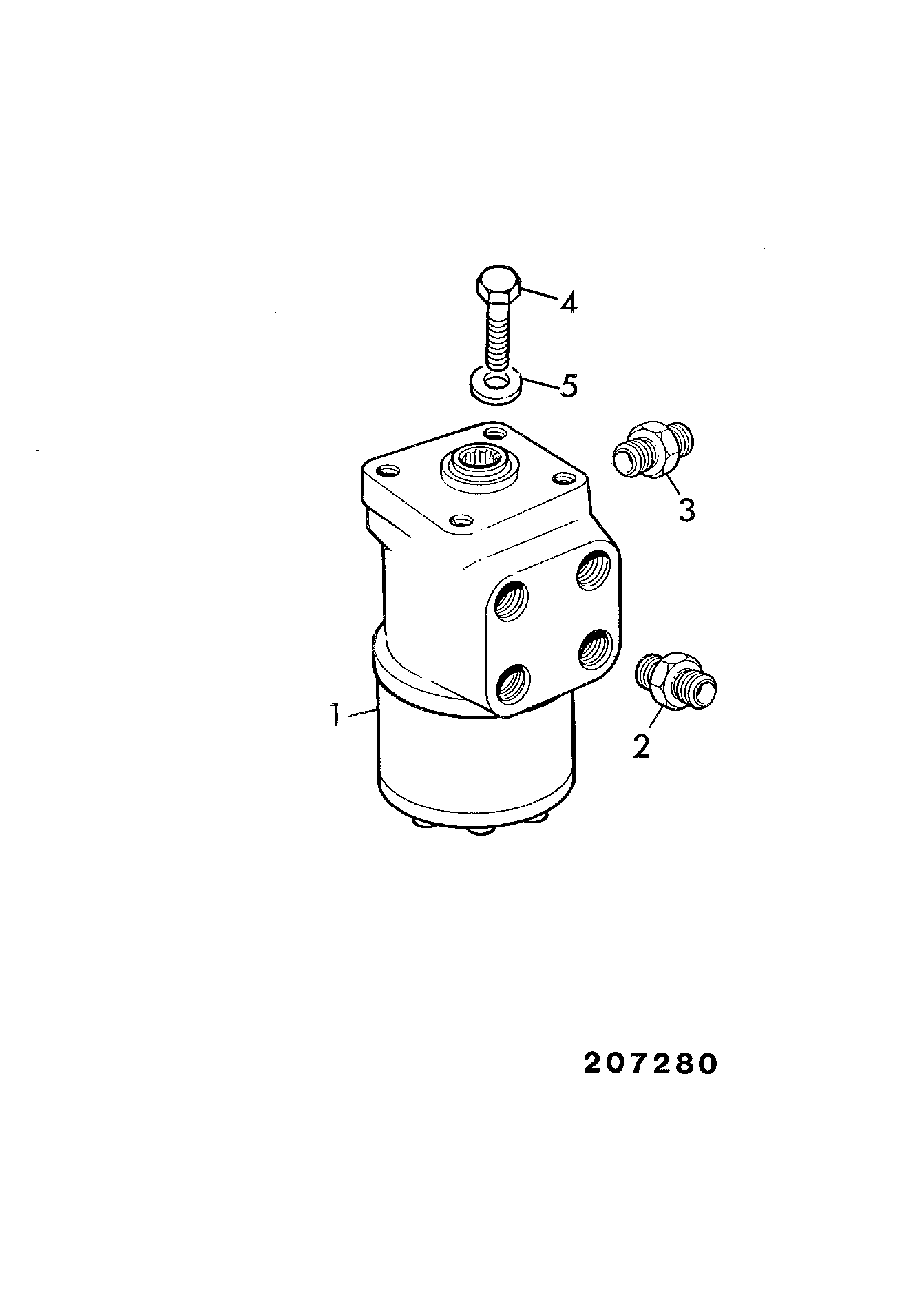

E3-14-1 PRIORITY STEER ASSY Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	VALVE SECTION ASSE 25/612842	1	AVAILABLE TO ORDER	$1,259.31	Quantity
3	SPRING PRIORITY STEER ASSY 25/612807	1	AVAILABLE TO ORDER	$22.79	Quantity
4	SCREW 25/606827	1	AVAILABLE TO ORDER	$3.97	Quantity
5	O RING 25/612805	1	AVAILABLE TO ORDER	$6.53	Quantity

Showing 1 to 4 of 4 parts

DIAG-E3-12-1-404518 E3-12-1 LIFT END MECHANISM
View Diagram
DIAG-E3-15-1-404518 E3-15-1 VALVE, STEERING AND ADAPTERS
View Diagram
DIAG-E3-11-1-404518 E3-11-1 AUX. END MECHANISM
View Diagram

Previous Assembly DIAG-E3-12-1-404518 E3-12-1 LIFT END MECHANISM Next Assembly DIAG-E3-15-1-404518 E3-15-1 VALVE, STEERING AND ADAPTERS
