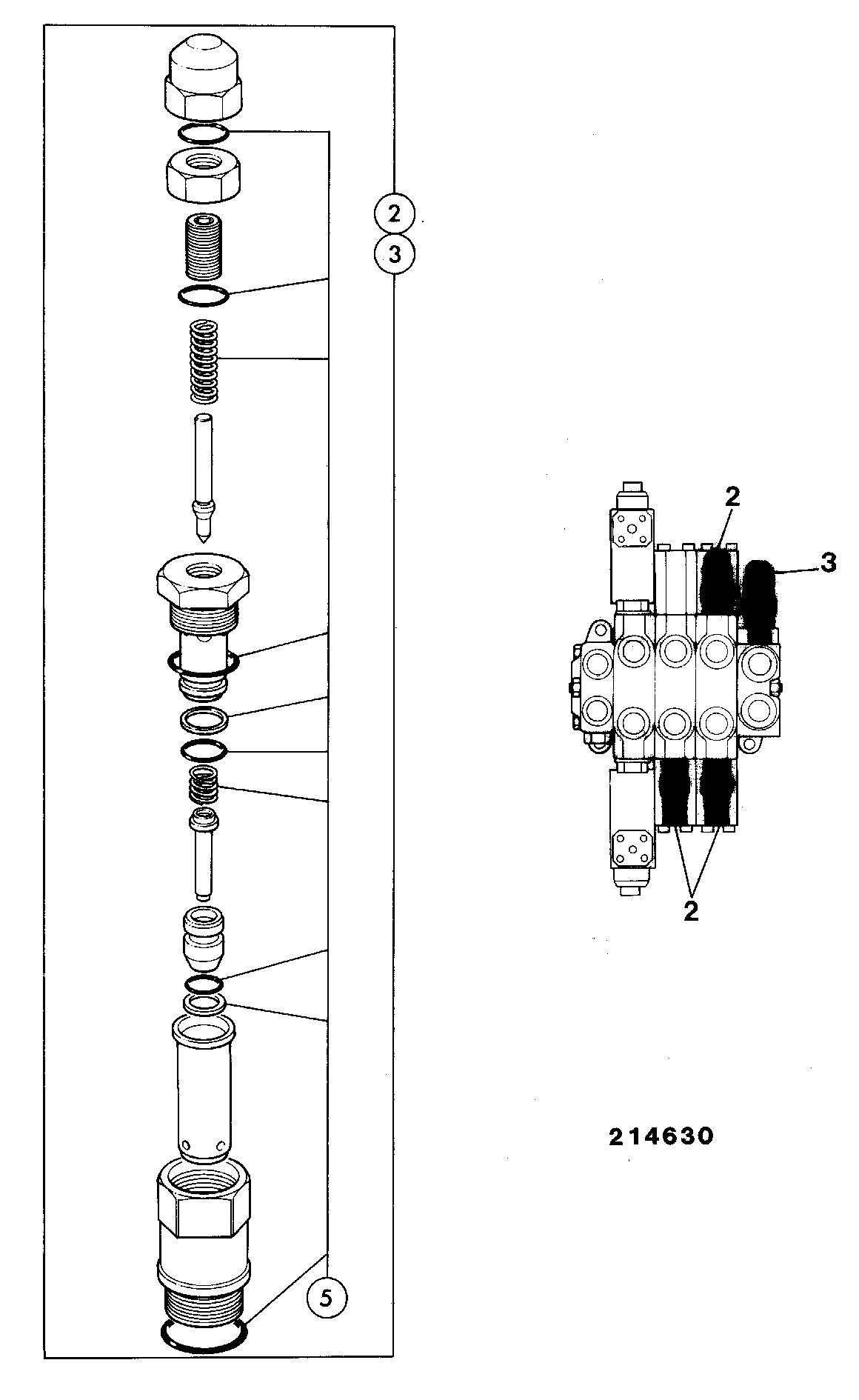

E3-13-1 VALVE, SECTION Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	CAP-DETENT 25/608608	1	AVAILABLE TO ORDER	$243.07	Quantity
3	SEAT SPRING 25/608609	1	AVAILABLE TO ORDER	$14.10	Quantity
4	O RING 25/608606	1	AVAILABLE TO ORDER	$7.99	Quantity
5	CAPSCREW 25/608607	1	AVAILABLE TO ORDER	$38.39	Quantity
7	SEAL 25/611412	1	AVAILABLE TO ORDER	$0.89	Quantity
9	SPACER 25/611410	1	AVAILABLE TO ORDER	$80.70	Quantity

Showing 1 to 6 of 6 parts

DIAG-E3-12-1-394174 E3-12-1 VALVE, COMPONENTS
View Diagram
DIAG-E3-11-3-394174 E3-11-3 VALVE, RELIEF
View Diagram
DIAG-E3-11-2-394174 E3-11-2 VALVE, RELIEF, ISO
View Diagram

Previous Assembly DIAG-E3-12-1-394174 E3-12-1 VALVE, COMPONENTS Next Assembly DIAG-E3-15-1-394174 E3-15-1 FILTER, HYDRAULIC
