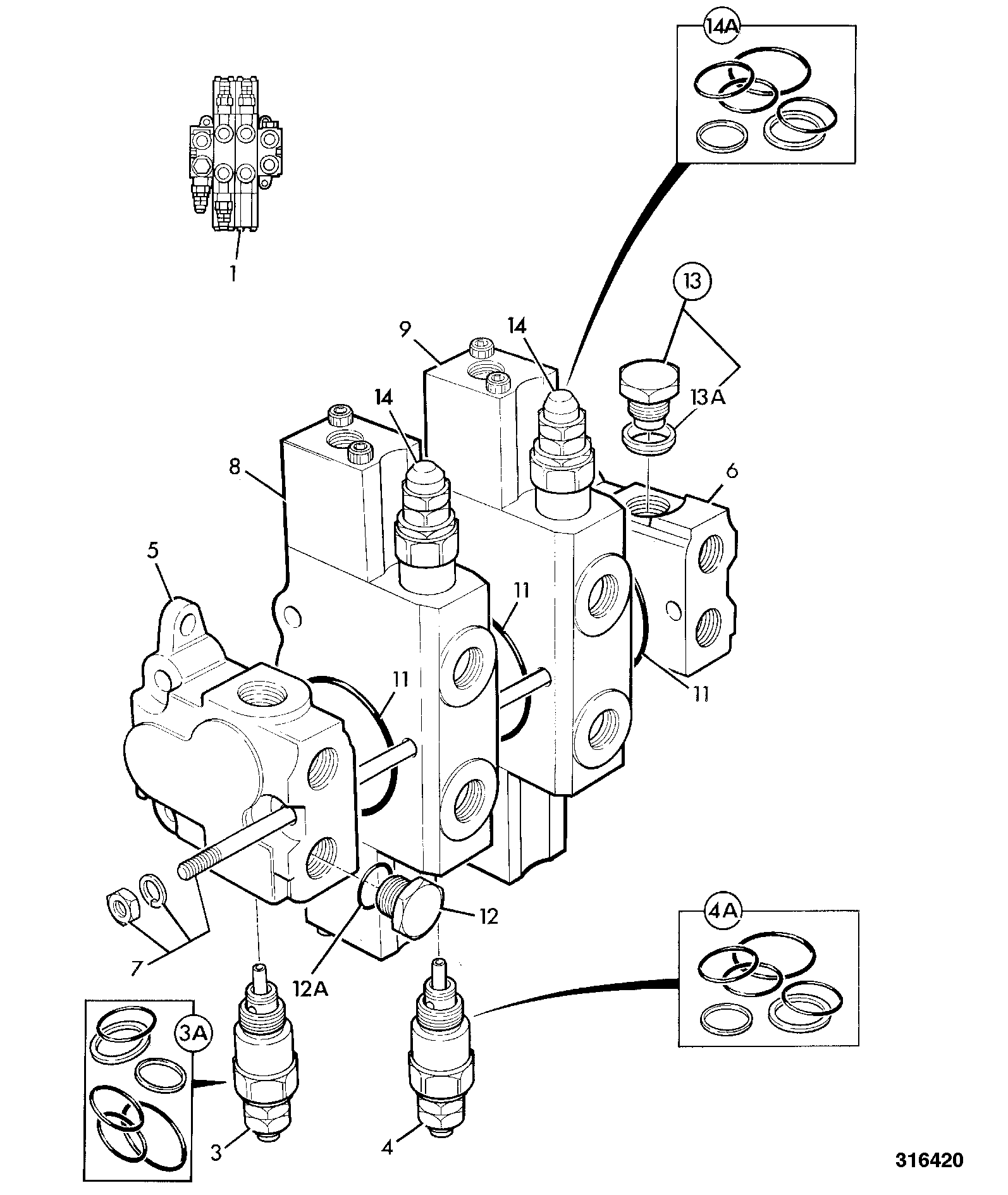

E3-12-7 VALVE, COMPONENTS 3 SPOOL VALVE INTEGRAL RESTRICTOR 12 VOLT Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	3 SPOOL VALVE BLOCK 25/221345 332/W3572	1	AVAILABLE TO ORDER	$3,891.10	Quantity
2	2 WAY AMP JT TO DEUTSCH D 721/10763	1	2 IN STOCK	$39.86	Quantity
3	VALVE 25/611403	1	AVAILABLE TO ORDER	$2,428.44	Quantity
5	VALVE - SECTION, AUXILIARY 331/40479	1	AVAILABLE TO ORDER	$2,047.75	Quantity

Showing 1 to 4 of 4 parts
