| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ROTARY JOINT - 8 PORTS 45/920082 332/W4008 | 1 | $2,237.10 | ||||
| 1 | Core Rotary joint 45/920086 | 1 | $980.16 | |||
| 3 | PLATE BASE 45/914514 | 1 | $126.49 | |||
| 4 | SEAL -ANTISEIZURE 45/920087 | 1 | $13.78 | |||
| 5 | CIRCLIP 45/908504 | 1 | $13.22 | |||
| 6 | CAP-SCREW M_8 L-_20mm 1391/3305D | 1 | $2.03 | |||
| 7 | SEAL -GLYD RING 45/920089 | 1 | $50.51 | |||
| 8 | Seal O Ring 45/920090 | 1 | $11.66 | |||
| 9 | Seal Rotary Joint 45/920091 332/Z1892 | 1 | $60.41 | |||
| 10 | O-RING 74.61 x 3.53 NBR-70 45/920092 | 1 | $15.60 | |||
| 11 | Seal O Ring 45/920093 | 1 | $1.64 | |||
| 12 | Ring Backing 45/920094 | 1 | $14.28 | |||
| 13 | Seal V type 45/920095 | 1 | $16.52 | |||
| 14 | Pin Locating 45/920096 | 1 | $12.52 | |||
| 15 | Ball 45/920097 | 1 | $26.96 | |||
| 16 | KIT SEAL 45/920098 | 1 | $593.24 | |||
| 20 | ADAPTOR 1620/2052 | 1 | $2.49 | |||
| 20A | O-RING 2401/0505 | 1 | $2.54 | |||
| 21 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 22 | ADAPTOR 816/90008 | 1 | $7.04 | |||
| 22A | O-RING 2401/0503 | 1 | $0.54 | |||
| 23 | ADATOR TEE 816/90003 | 1 | $81.14 | |||
| 23A | O RING 2301/0101 | 1 | $1.46 | |||
| 25 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 26 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 27 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

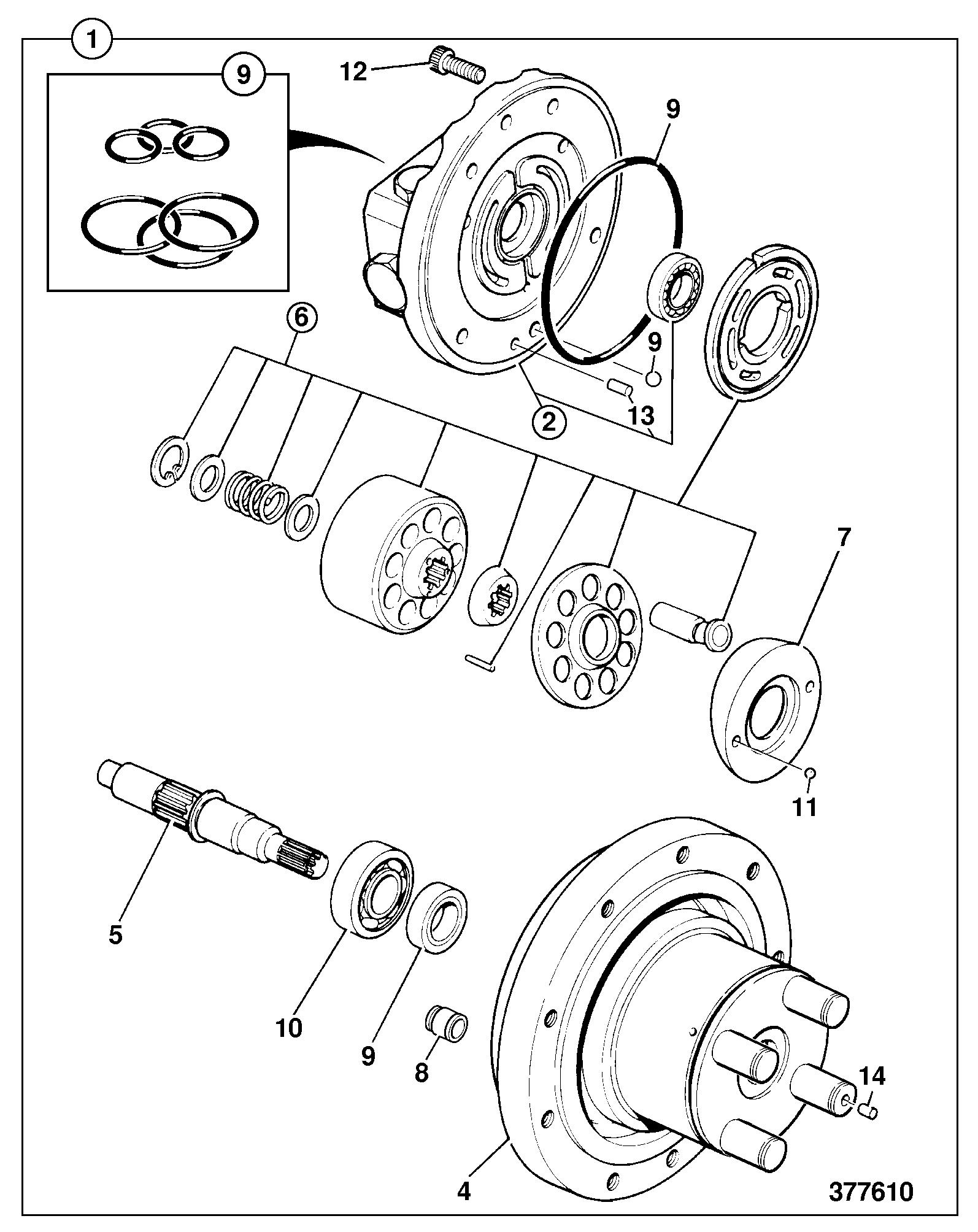

DIAG-E2-4-4-397833 E2-4-4 MOTOR, TRACK
View Diagram -

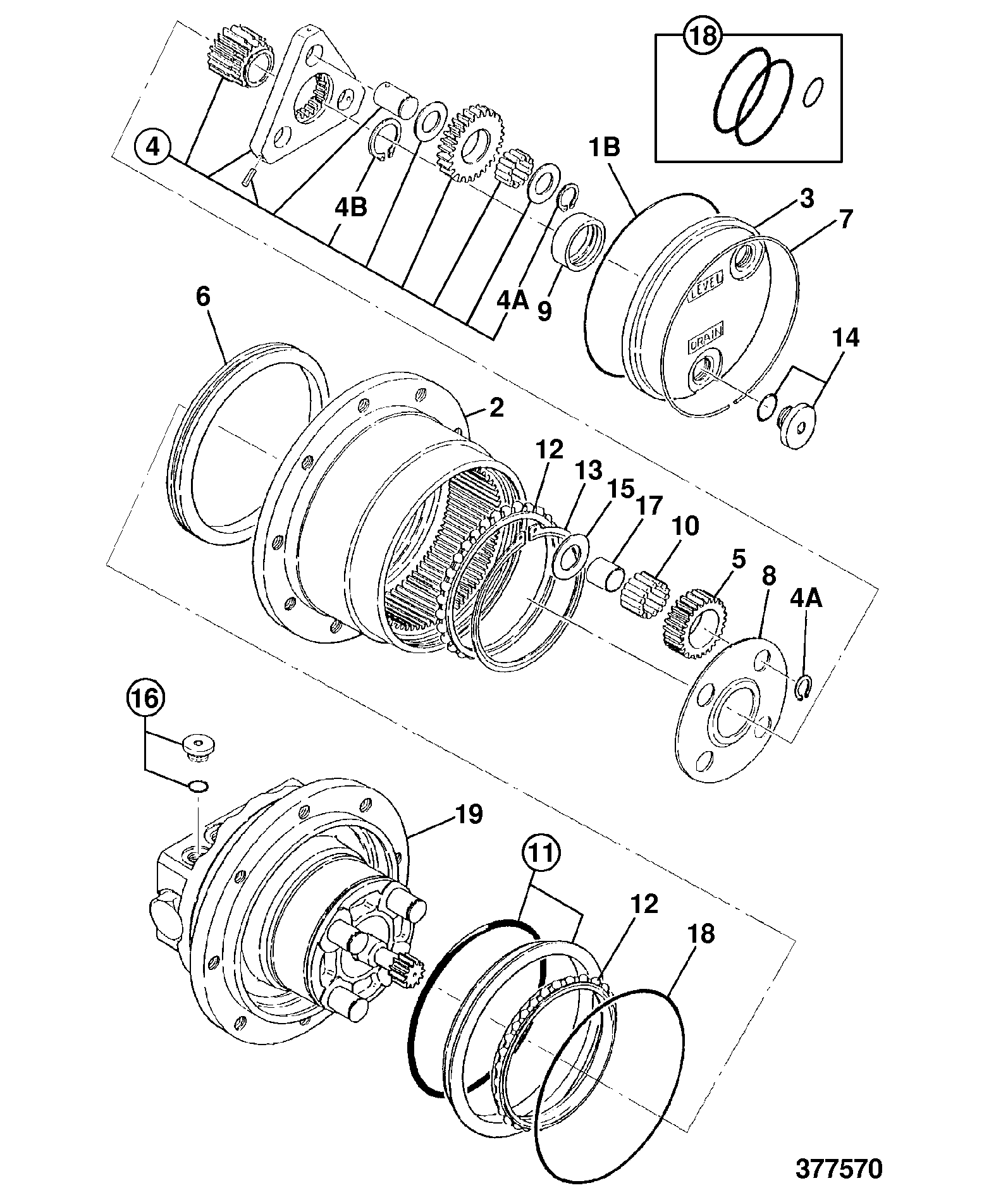

DIAG-F4-2-3-397833 F4-2-3 GEARBOX, TRACK TWO SPEED, ASSEMBLY
View Diagram -
DIAG-F4-3-3-397833 F4-3-3 GEARBOX, TRACK
View Diagram
