Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE -08 BSP HP 370MM A 332/Y6152 | 1 | $20.16 | |||
| 3 | HOSE -08 BSP HP 525MM A 332/Y6228 | 1 | $24.43 | |||
| 5 | W.A LOADER END PIPES 332/Y4139 | 1 | $157.70 | |||
| 10 | HOSE 3/8BSP 530mm 612/80099 | 1 | $81.26 | |||
| 13 | HOSE 3/8BSP 1760mm 612/80078 | 1 | $111.32 | |||
| 18 | SET SCREW M10x35 1315/0409Z | 1 | $8.37 | |||
| 19 | WASHER PLAIN 3/8 LARGE1412/0001Z 1412/0003Z | 1 | $1.52 | |||
| 20 | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 21 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 22 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 23 | SPACER TUBE 658/00737 | 1 | $150.23 | |||
| 24 | RIVET NUT M8 826/01627 | 1 | $5.16 | |||
| 25 | 13MM DIA.PLASTIC INSERT 835/10026 | 1 | $0.21 | |||
| 30 | CLAMP MOULDING TWIN 821/10508 | 1 | $0.71 | |||
| 31 | CLAMP COVER PLATE 821/00335 | 1 | $8.08 | |||
| 32 | (W) (P) BOLT M8x50 1315/3312Z | 1 | $3.83 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

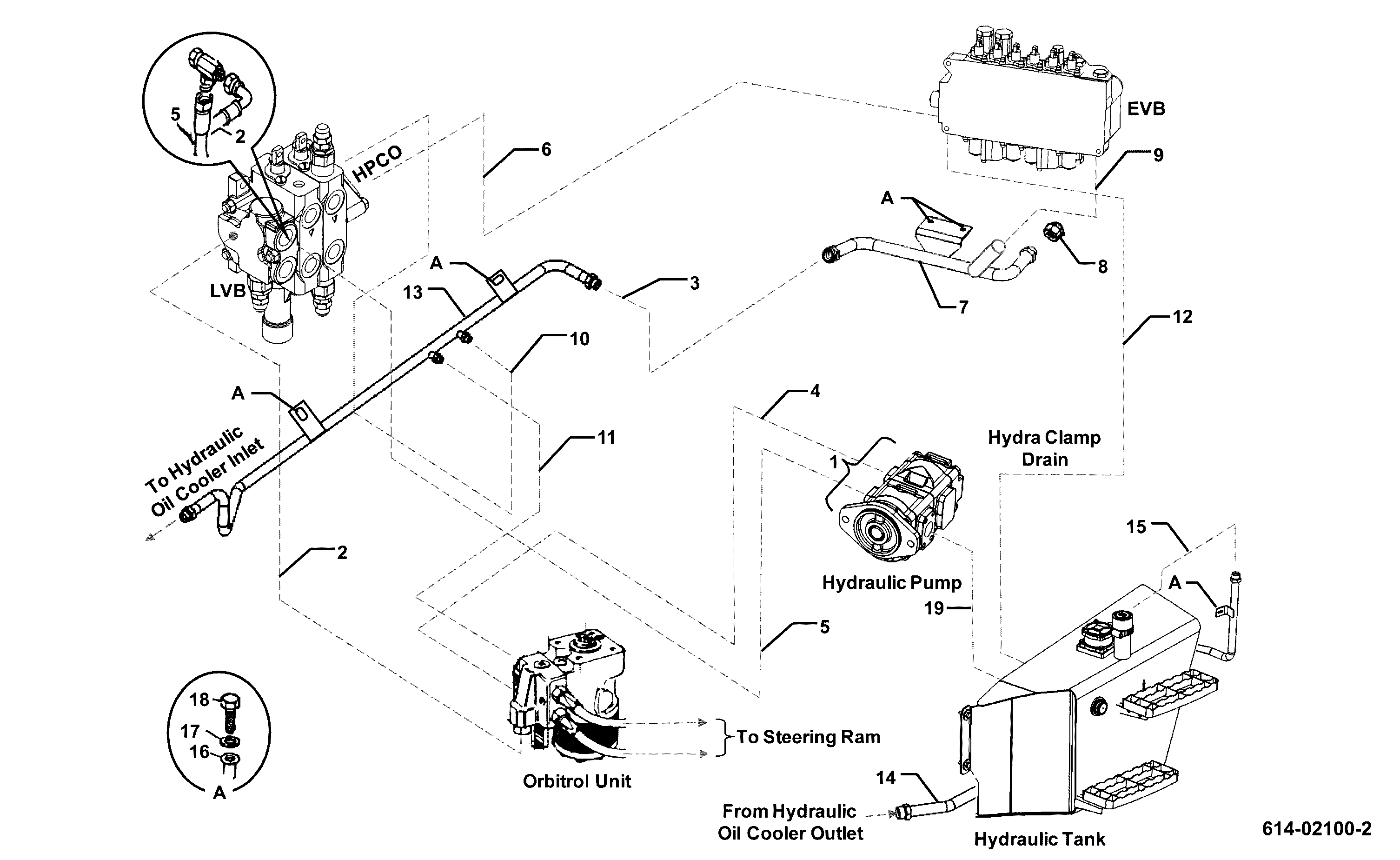

DIAG-E3-1-1-394888 E3-1-1 CIRCUIT HYDRAULIC -LOADER HOSES
View Diagram -

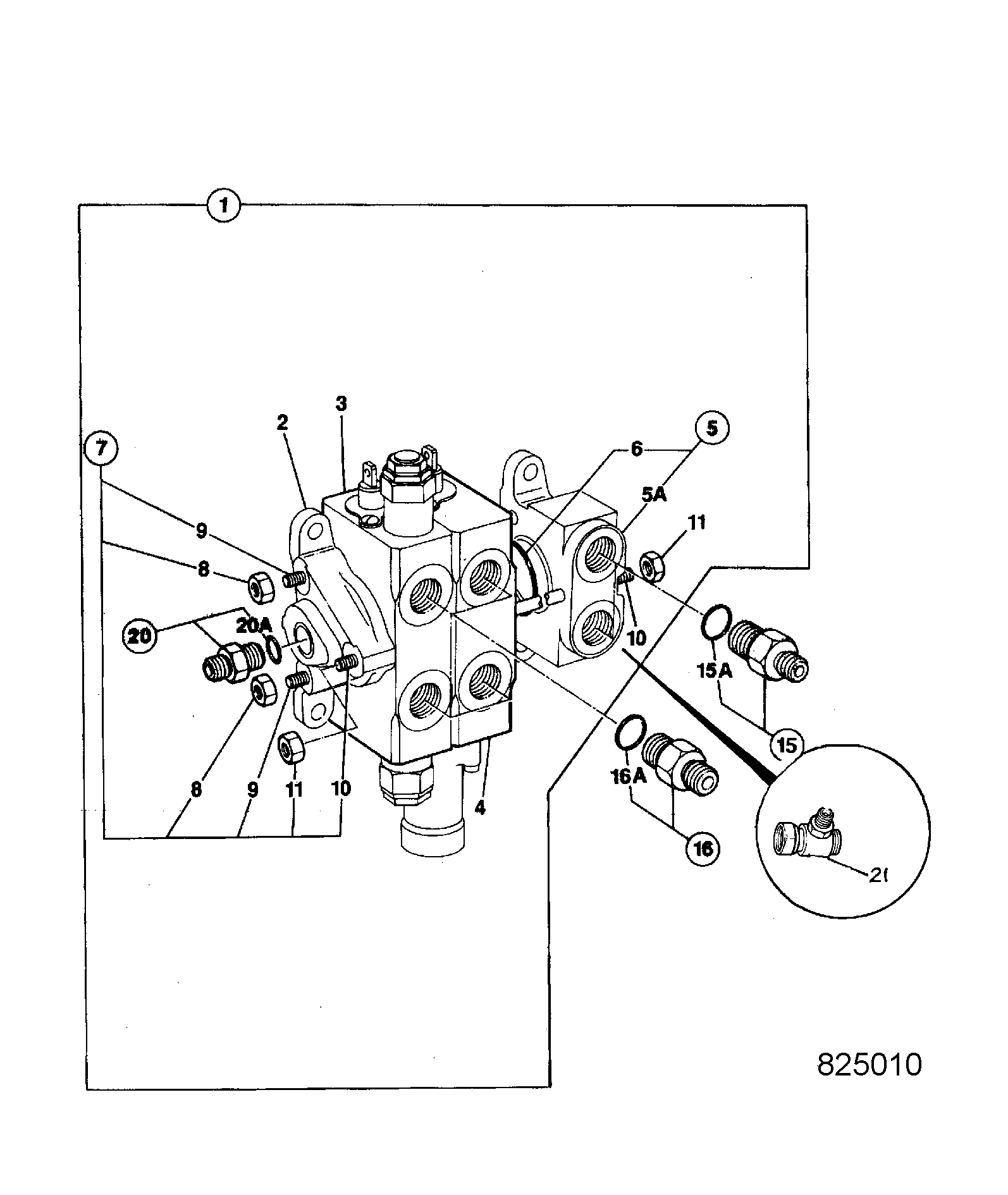

DIAG-E3-2-1-394888 E3-2-1 VALVE LOADER 2 SPOOL WITH FLOAT
View Diagram -
DIAG-E2-2-2-394888 E2-2-2 PUMP TRANSMISSION & SS700 SYNCRO SHUTTLE PUMP & MAIN HYD PUMP DRIVE
View Diagram
