Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| PLATE VALVE MTG. 234/07513 331/25796 | 1 | $73.19 | ||||
| Valve 25/221710 | 1 | $1,974.73 | ||||
| VALVE BOOM SECTION 25/221712 | 1 | $2,299.31 | ||||
| Valve Bucket Secti 332/E4105 25/221713 | 1 | $3,836.24 | ||||
| Valve Dipper Secti 25/221714 | 1 | $3,623.49 | ||||
| VALVE INLET SECTION 25/221897 | 1 | $2,723.35 | ||||
| Valve L/H Track Se 25/221724 | 1 | $3,078.03 | ||||
| Valve Outlet LP Se 25/221726 | 1 | $670.67 | ||||
| Valve R/H Track Se 25/221722 | 1 | $1,460.19 | ||||
| Valve Section Inle 25/221898 | 1 | $3,981.24 | ||||
| Valve Slew Section 25/221719 | 1 | $4,019.87 | ||||
| Valve Swing Sectio 25/221720 | 1 | $3,157.90 | ||||

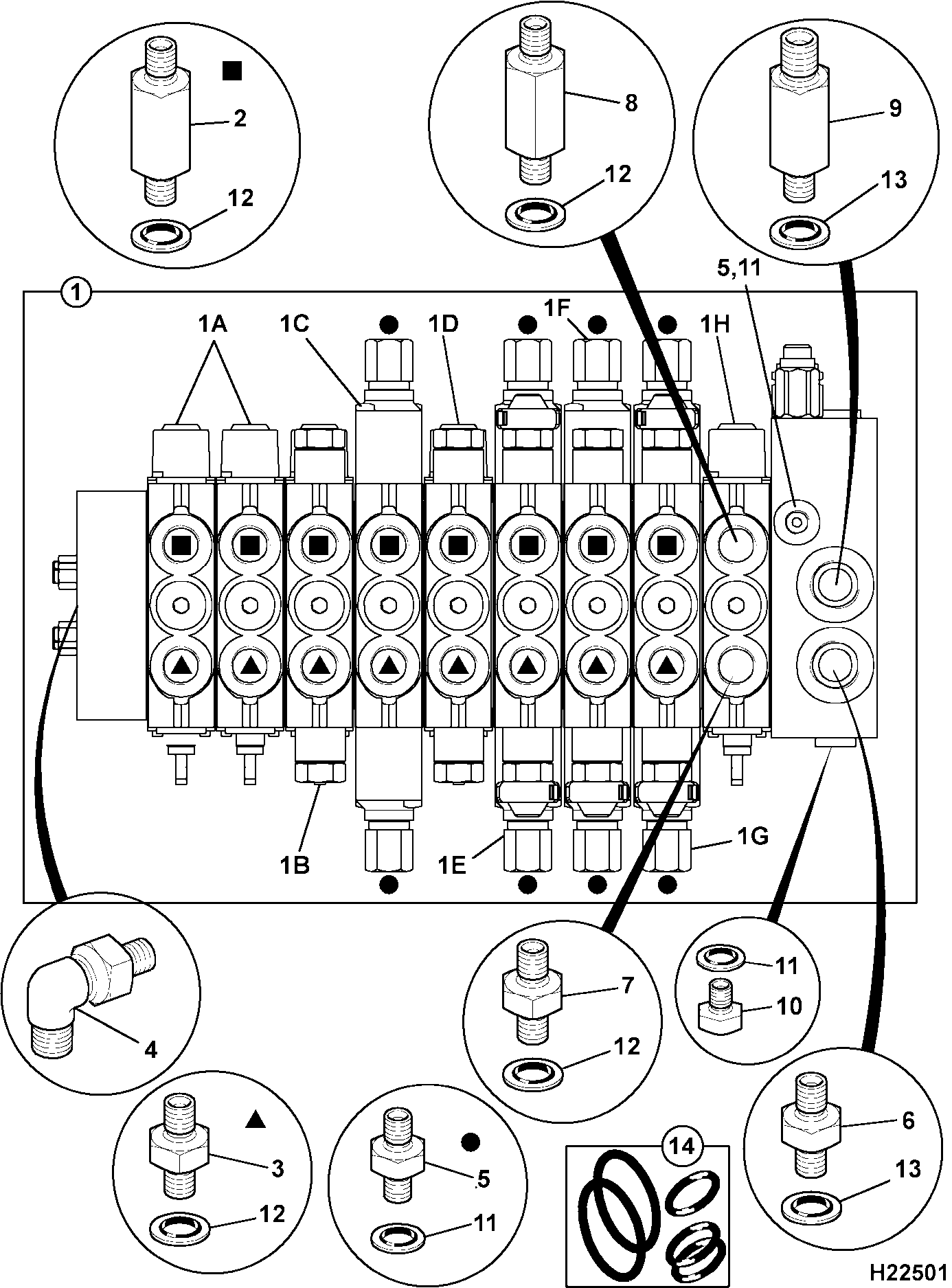

| 1 | VALVE 9 SPOOL 25/221450 | 1 | $14,236.17 | |||
| 2 | 1/2 BSP ADAPTOR 816/90283 | 1 | $9.70 | |||
| 2 | ADAPTOR 7/8SAE x G1/2A 816/90243 | 1 | $15.92 | |||
| 3 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 4 | Adaptor /2BSP X 7/8-14 816/90041 | 1 | $171.61 | |||
| 5 | ADAPTOR G1/4A-9/16UNF (M) 1620/0002 1620/2051 | 1 | $5.41 | |||
| 6 | ADAPTOR G1A x 7/8SAE 816/90235 | 1 | $16.31 | |||
| 9 | ADAPTOR 7/8SAE x G3/4A 816/90241 | 1 | $15.60 | |||
| 10 | PLUG 9/16UNF O RING BOSS 1745/0002 | 1 | $106.02 | |||
| 14 | (W) (P) BOLT M10x35 1315/3409Z | 1 | $1.52 | |||
| 15 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 16 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-
DIAG-E3-1-3-398147 E3-1-3 VALVE BLOCK 9 SPOOL
View Diagram -
DIAG-E3-2-1-398147 E3-2-1 VALVE SECTION TRACK
View Diagram -
DIAG-E3-1-1-398147 E3-1-1 VALVE BLOCK 9 SPOOL
View Diagram
