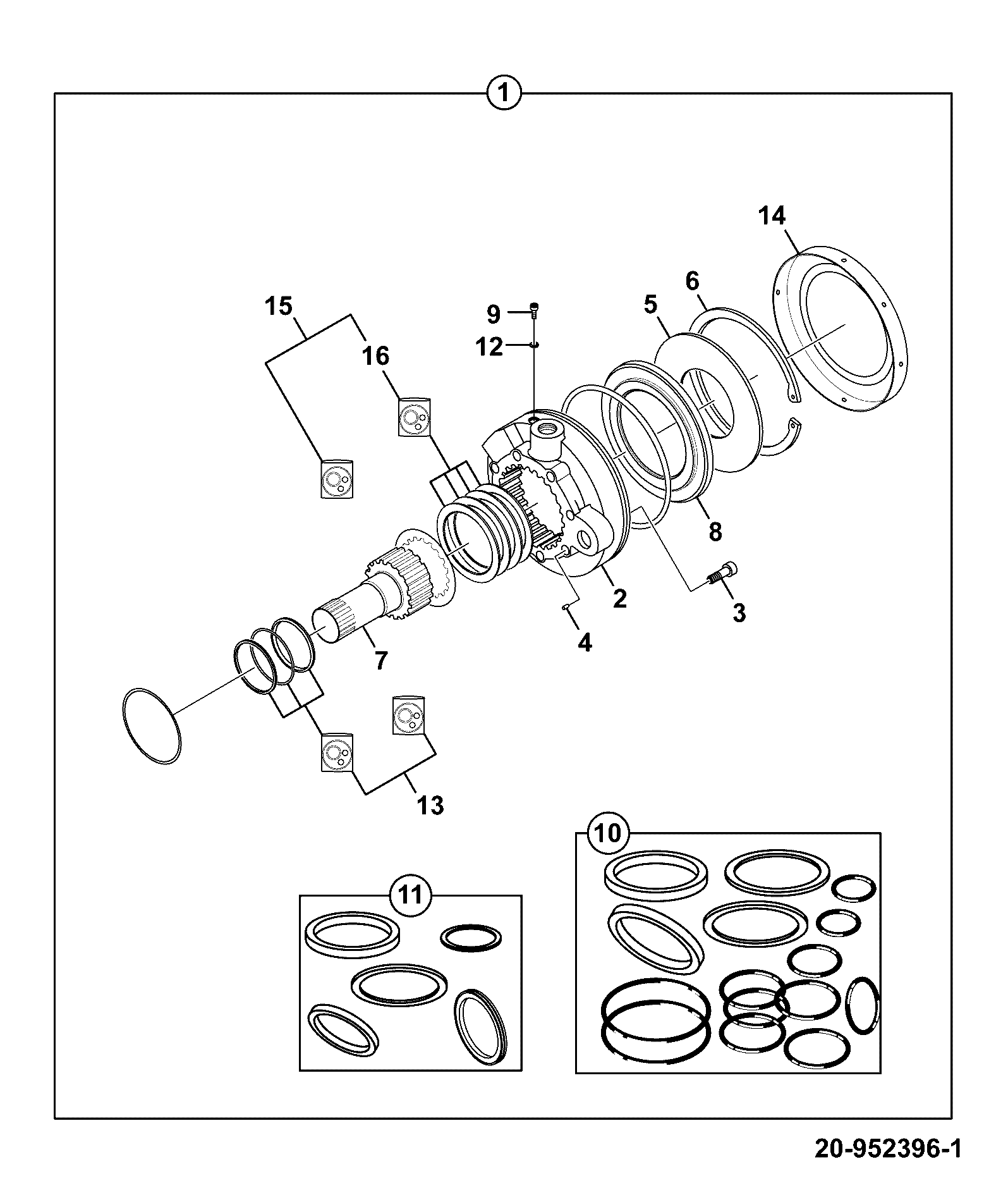

E290-30-1 OTHER HYDRAULIC MOTORS CYLINDER BLOCK DRIVE MOTOR Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Cylinder 20/952404	1	AVAILABLE TO ORDER	$9,559.45	Quantity
2	Motor Piston 335/C9085	1	AVAILABLE TO ORDER	$54.14	Quantity
3	Kit Repair 20/952391	1	AVAILABLE TO ORDER	$307.55	Quantity

Showing 1 to 3 of 3 parts
