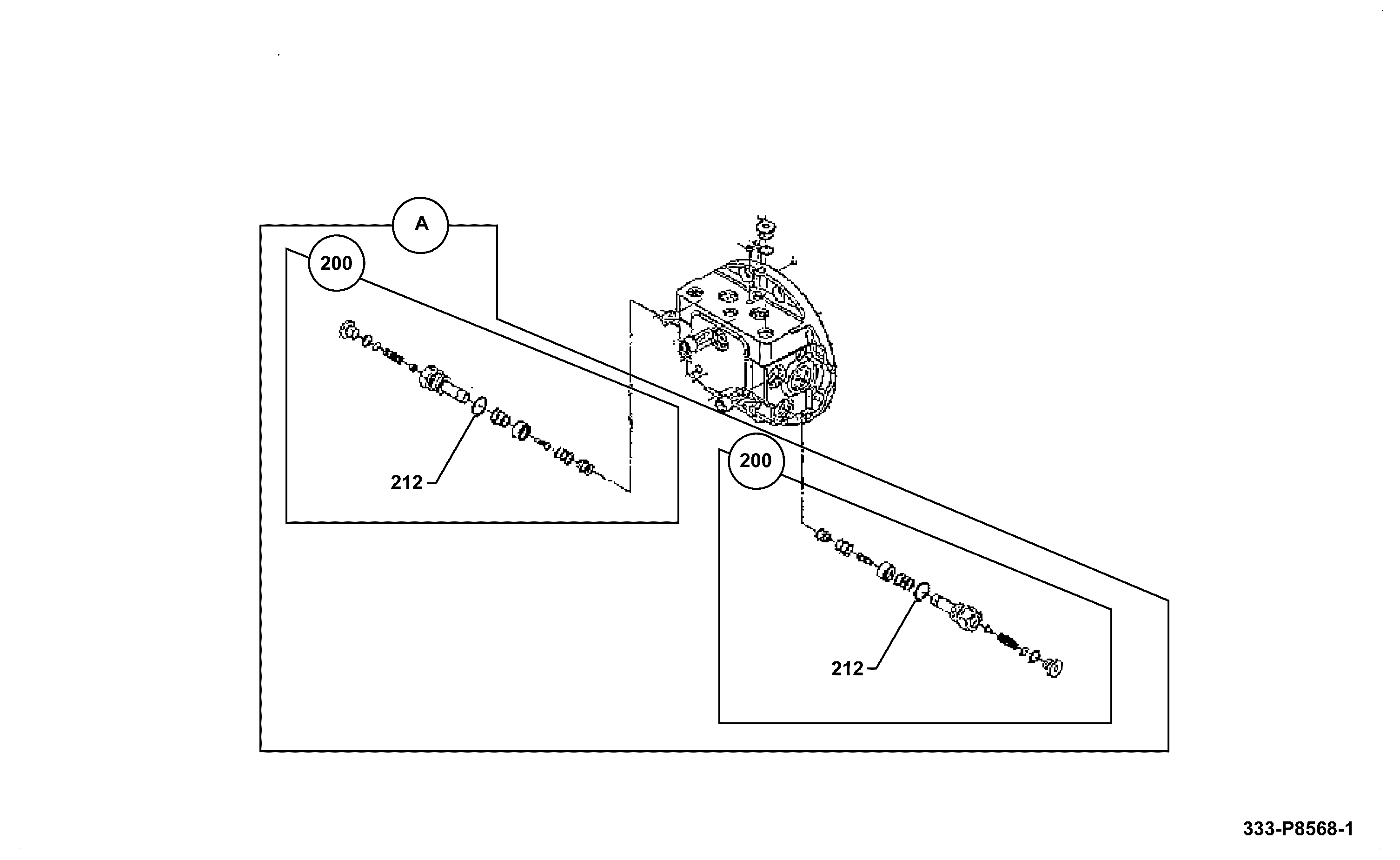

E290-3-1 VALVE CONTROL Track Motor Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
325	Retainer 20/951340	1	AVAILABLE TO ORDER	$95.00	Quantity
328	Spring 333/P8692	1	AVAILABLE TO ORDER	$16.07	Quantity
330	Spring 20/951343	1	AVAILABLE TO ORDER	$6.08	Quantity
366	Spring 333/P8695	1	AVAILABLE TO ORDER	$21.03	Quantity
382	Plug 20/925424	1	AVAILABLE TO ORDER	$79.50	Quantity
A	Valve 333/P8569	1	AVAILABLE TO ORDER	$1,472.78	Quantity

Showing 1 to 6 of 6 parts

DIAG-E290-2-1-398208 E290-2-1 RELIEF VALVES TRACK MOTOR
View Diagram
DIAG-E300-1-1-398208 E300-1-1 VALVE ASSEMBLY MAIN
View Diagram
DIAG-E275-1-1-398208 E275-1-1 MOTOR SLEW ASSEMBLY
View Diagram

Previous Assembly DIAG-E290-2-1-398208 E290-2-1 RELIEF VALVES TRACK MOTOR Next Assembly DIAG-E300-1-1-398208 E300-1-1 VALVE ASSEMBLY MAIN
