E290-20-1 OTHER HYDRAULIC MOTORS COMPONENTS FAN MOTOR 11cc UNI-DIRECTION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Coil 334/C1017	1	AVAILABLE TO ORDER	$376.00	Quantity
A	MOTOR 11cc UNI-DIRECT 400/X5471	1	AVAILABLE TO ORDER	$1,504.60	Quantity

Showing 1 to 2 of 2 parts

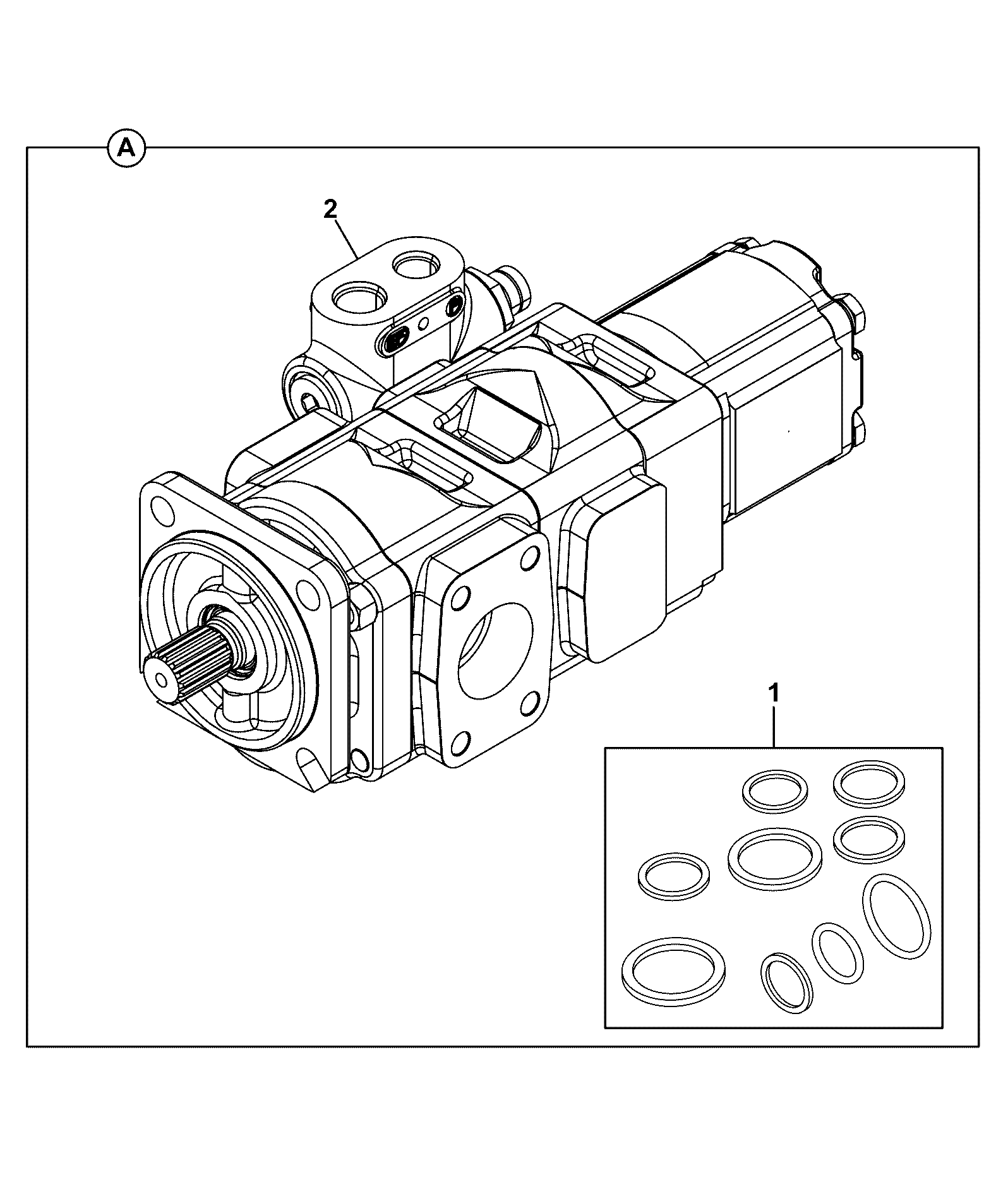

DIAG-E260-1-1-401908 E260-1-1 OTHER HYDRAULIC PUMPS DETAILS 3 STAGE PUMP
