E290-1-1 OTHER HYDRAULIC MOTORS FAN MOTOR REVERSIBLE , COMPONENTS Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Reversible Motor 334/Y2834	1	AVAILABLE TO ORDER	$4,313.99	Quantity
1	Seal shaft 333/D5648	1	AVAILABLE TO ORDER	$34.77	Quantity
2	SEAL KIT 336/B8837	1	AVAILABLE TO ORDER	$135.08	Quantity
5	Kit-key 333/D5650	1	AVAILABLE TO ORDER	$41.75	Quantity
6	Washer 333/D5657	1	AVAILABLE TO ORDER	$13.87	Quantity
8	Washer 333/D5660	1	AVAILABLE TO ORDER	$13.87	Quantity

Showing 1 to 6 of 6 parts

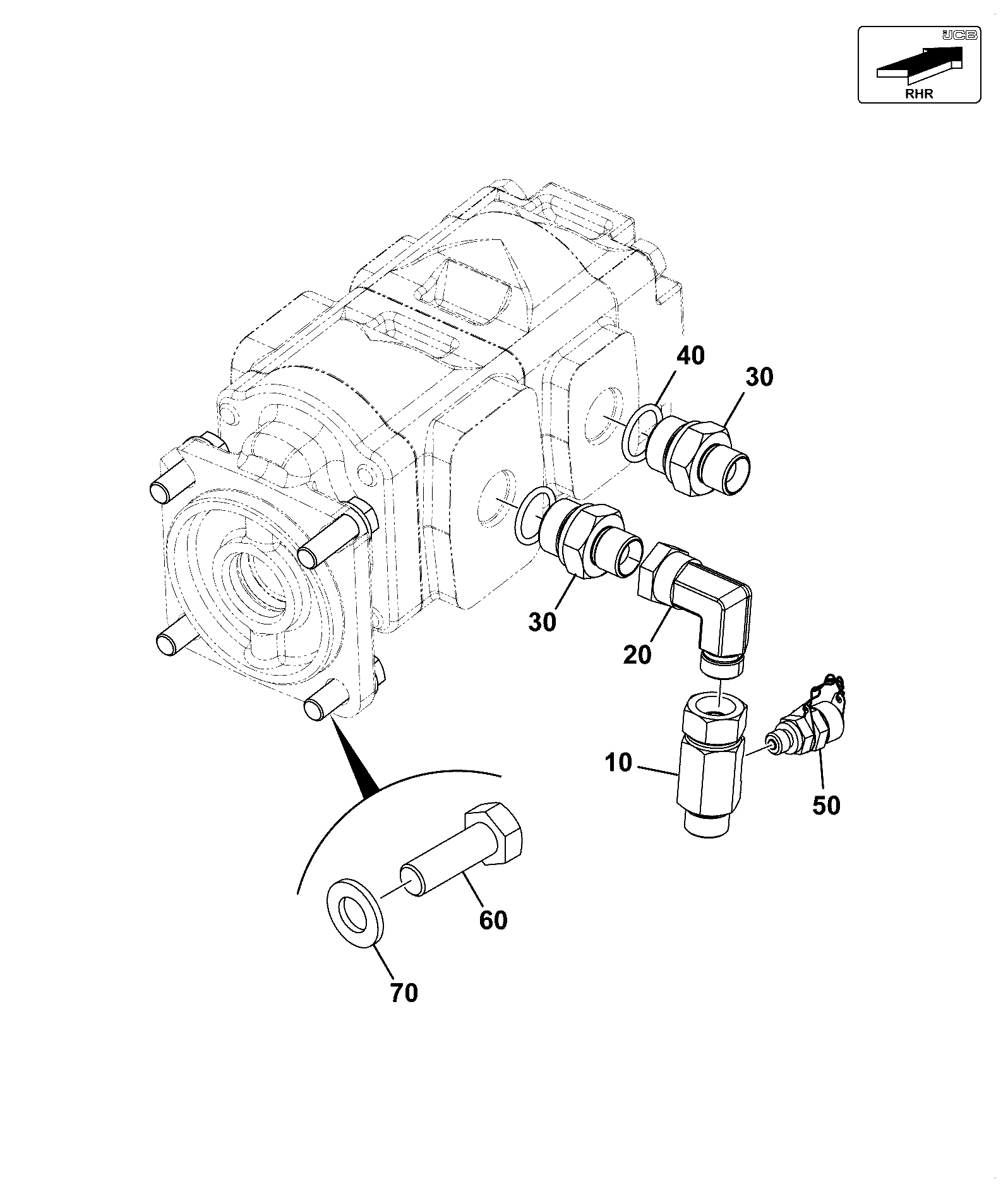

DIAG-E210-5-1-402249 E210-5-1 PUMPS GEAR FIXINGS CKT_BRAZIL
View Diagram

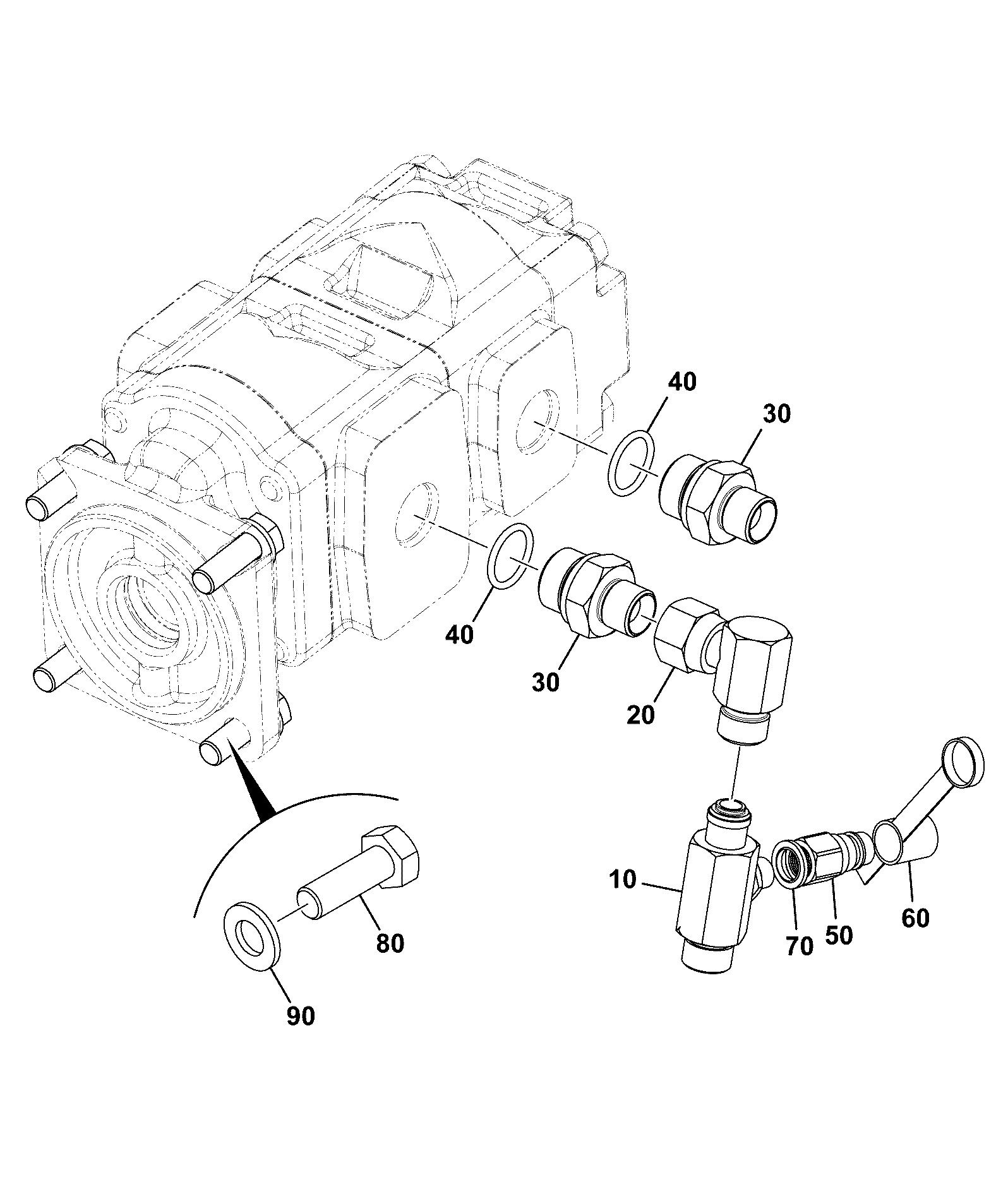

DIAG-E210-1-1-402249 E210-1-1 PUMPS GEAR FIXINGS
