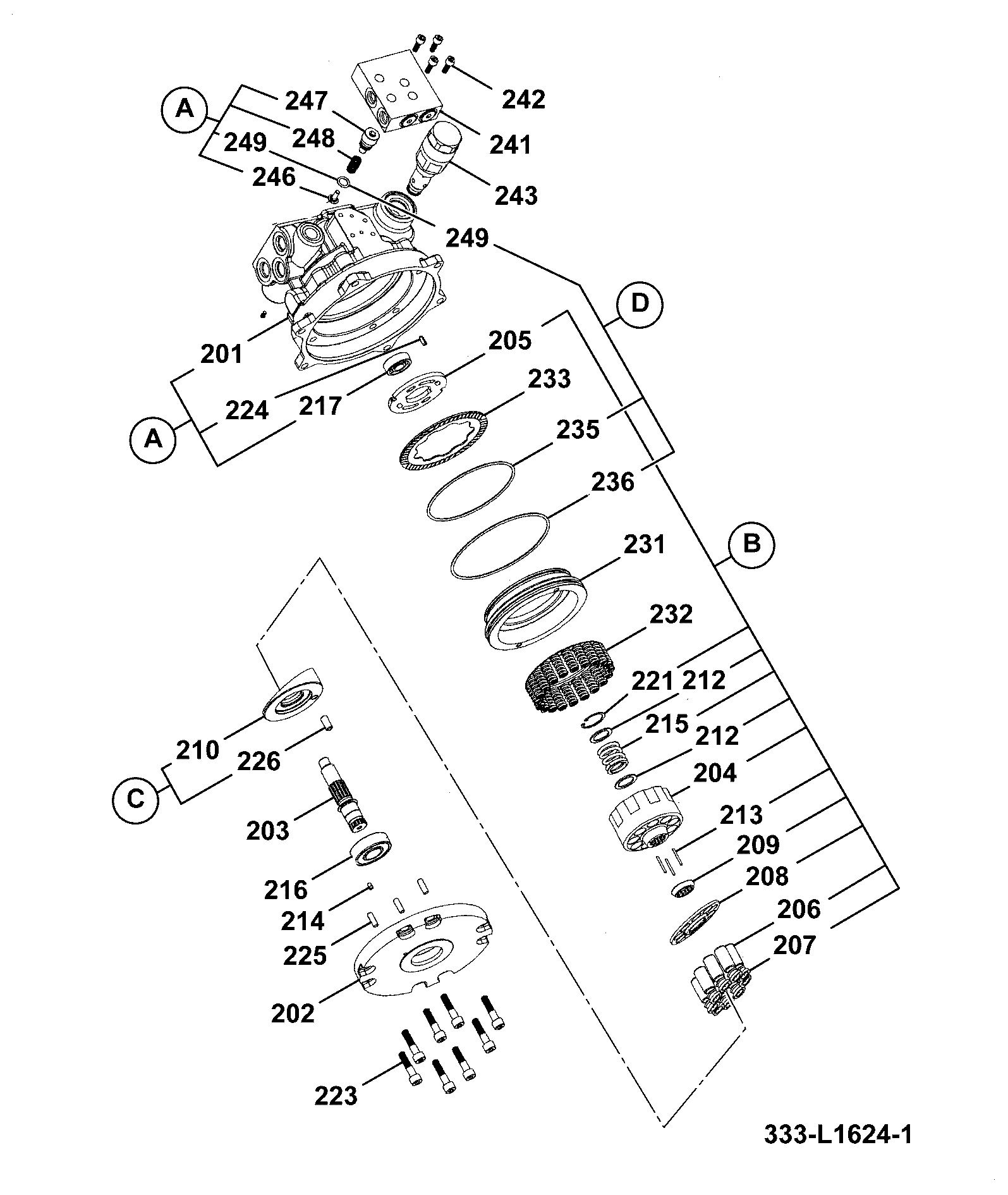

E290-1-1 OTHER HYDRAULIC MOTORS PISTON 45CC Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	Control Valve Assy 400/08979	1	AVAILABLE TO ORDER	$520.15	Quantity
3	Control Valve 400/08986	1	AVAILABLE TO ORDER	$1,345.87	Quantity
30	Screw 20/952486	1	AVAILABLE TO ORDER	$72.66	Quantity
41	Nut 335/C3360	1	AVAILABLE TO ORDER	$20.76	Quantity
43	O Ring O-Ring 335/C3362	1	AVAILABLE TO ORDER	$11.75	Quantity
A	HYD PIST PUMP 45CC EP 401/T2764	1	AVAILABLE TO ORDER	$2,761.20	Quantity

Showing 1 to 6 of 6 parts
