E290-1-1 OTHER HYDRAULIC MOTORS ASSEMBLY BRAKE COVER Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	Cover 336/F0089	1	AVAILABLE TO ORDER	$4,240.32	Quantity
1	Seal 333/F1478	1	AVAILABLE TO ORDER	$386.16	Quantity

Showing 1 to 2 of 2 parts

DIAG-E280-5-1-397196 E280-5-1 MOTOR HYDRAULIC DRIVE DETAILS SPEED REDUCTION
View Diagram

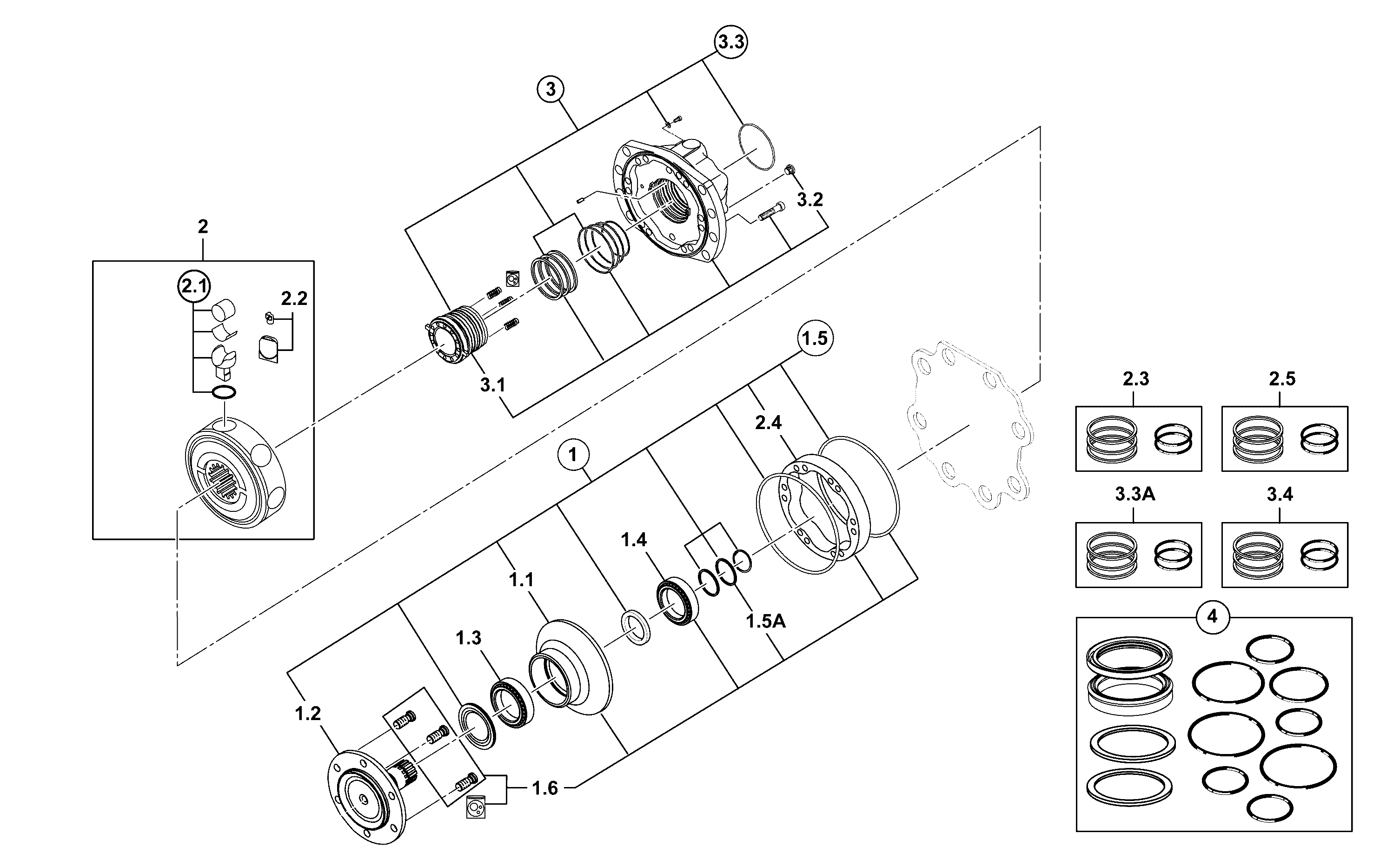

DIAG-E290-5-1-397196 E290-5-1 OTHER HYDRAULIC MOTORS ASSEMBLY BRAKE , FRONT MOTOR
