Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | Valve 928/60321 | 1 | $4,671.74 | |||
| 1A | SOLENOID 20/951993 20/950920 | 1 | $803.62 | |||
| 2 | ACTUATOR INCHING V 332/D3936 20/951232 | 1 | $854.71 | |||
| 3 | Gasket 332/F4268 | 1 | $33.44 | |||
| 4 | SCREW, SOCKET - HEAD 332/F4345 827/80355 | 1 | $14.18 | |||
| 5 | Screw Socket Head 983/11128 | 1 | $25.59 | |||
| 6 | O Ring 828/10408 | 1 | $7.55 | |||
| 7 | Pump control element 25/222883 333/E9171 | 1 | $300.06 | |||
| 7A | Piston 25/223069 | 1 | $266.32 | |||
| 7B | Collar 25/223073 | 1 | $126.32 | |||
| 7C | Spring 25/223074 | 1 | $89.19 | |||
| 21 | O-RING 332/E7358 4033/25739 | 1 | $11.32 | |||
| 25 | Seal O Ring 332/E7360 | 1 | $25.13 | |||
| A | Inching valve 400/02738 334/F8993 | 1 | $3,475.40 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

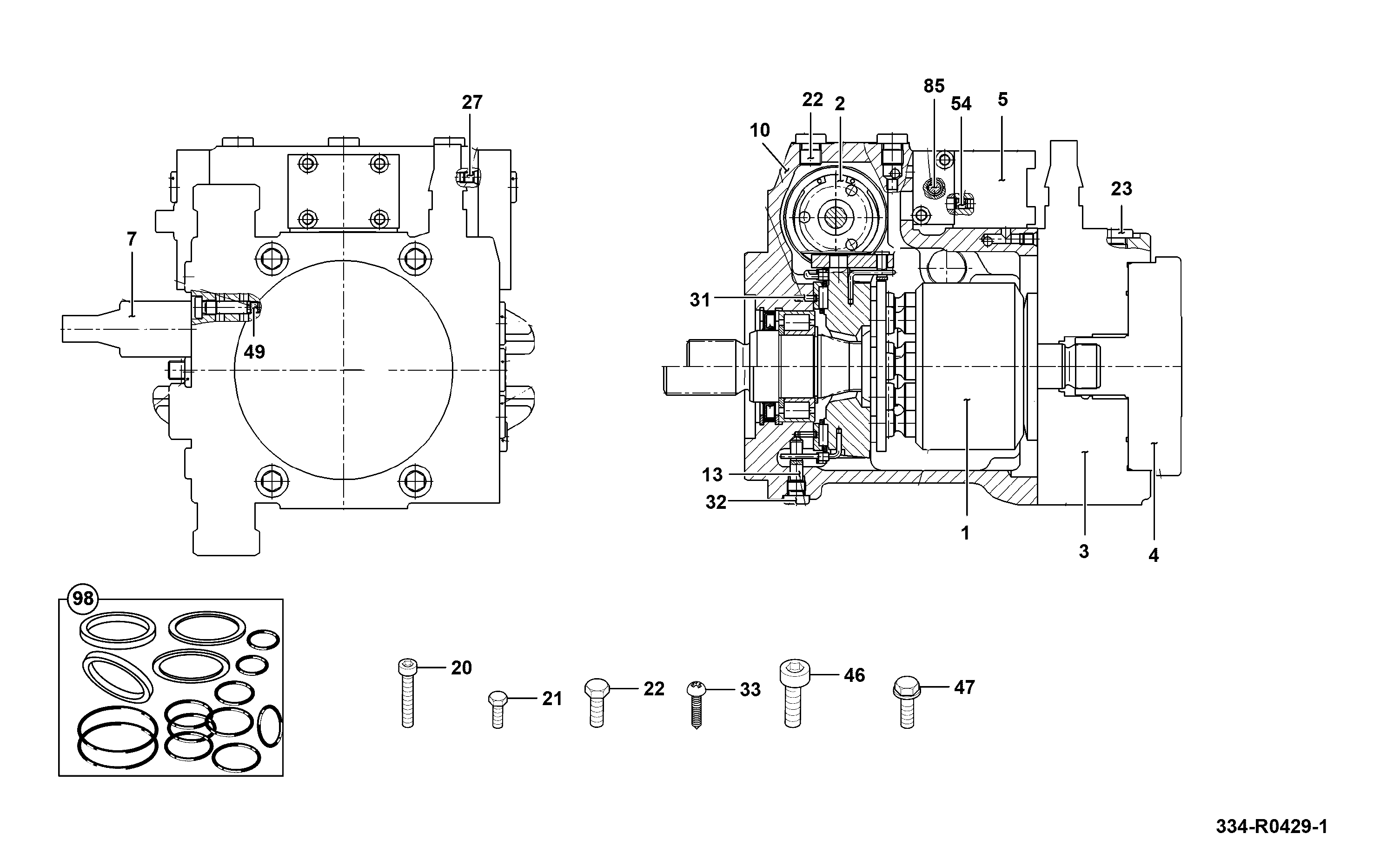

DIAG-E280-1-1-404385 E280-1-1 MOTOR HYDRAULIC DRIVE DETAILS COMPONENTS 334/R0429
View Diagram -
DIAG-E290-1-1-404385 E290-1-1 OTHER HYDRAULIC MOTORS FAN MOTOR AND ADAPTERS
View Diagram -
DIAG-E275-1-1-404385 E275-1-1 MOTOR HYDRAULIC DRIVE ASSEMBLIES INSTALLATION 20KPH
View Diagram
