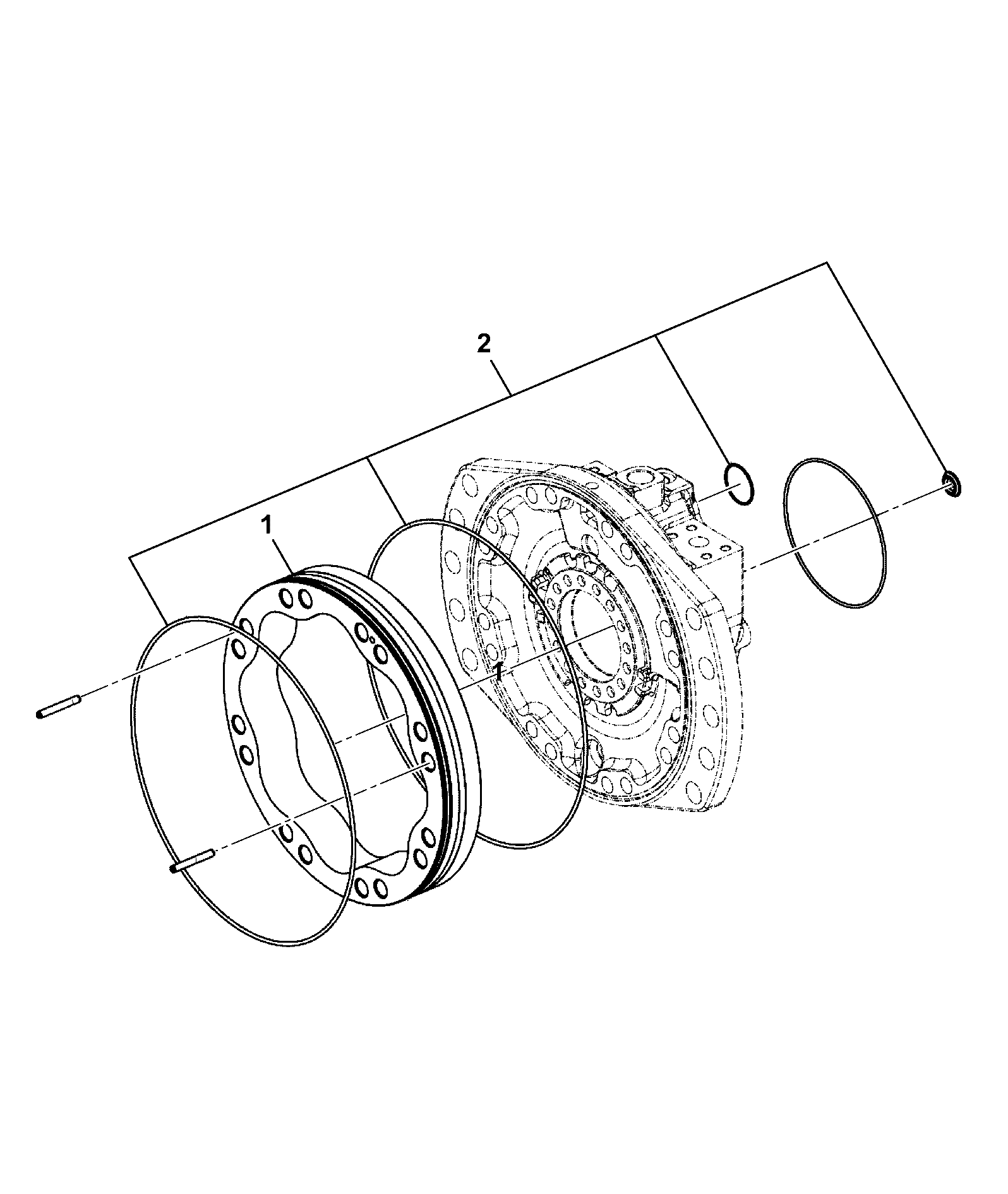

E275-35-1 MOTOR HYDRAULIC DRIVE ASSEMBLIES COVER ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Cover 336/A0039	1	AVAILABLE TO ORDER	$3,186.17	Quantity
3	Screw 332/H5673	1	AVAILABLE TO ORDER	$8.33	Quantity
4	Spring Distributor 20/952192	1	AVAILABLE TO ORDER	$2.32	Quantity
5	Plug 20/952287	1	AVAILABLE TO ORDER	$67.87	Quantity
6	SEAL KIT 335/E1290	1	AVAILABLE TO ORDER	$305.64	Quantity
8	Cover 336/A0040	1	AVAILABLE TO ORDER	$1,146.56	Quantity

Showing 1 to 6 of 6 parts
