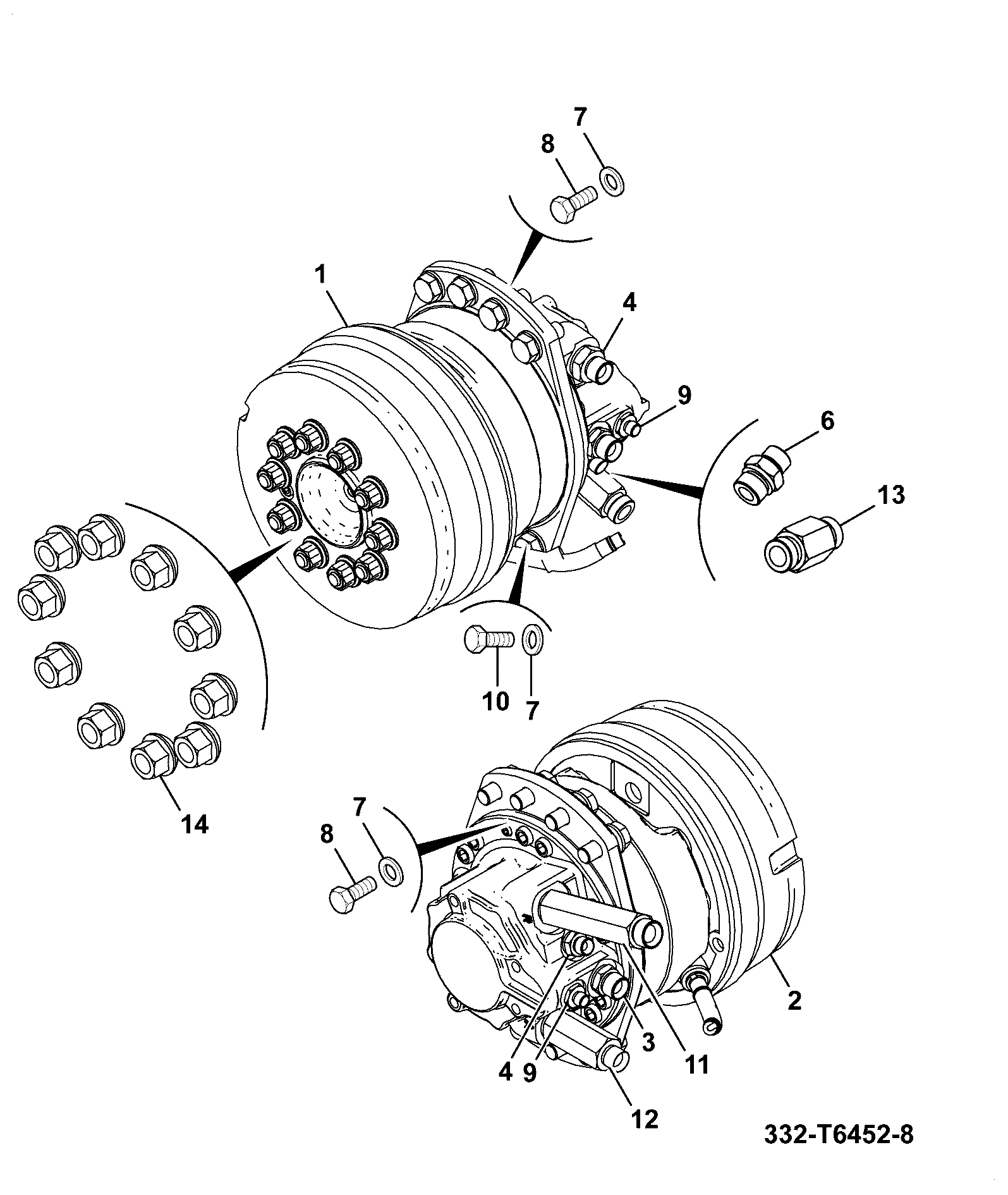

E275-3-1 MOTOR FRONT ABI – FRONT L/H WHEEL MOTOR Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	ABI - FRONT L/H WHEEL MOTOR 332/W4473	1	AVAILABLE TO ORDER	$12,292.90	Quantity
2	SHEATHING CONNECTION ABI - HANDB 332/V9504	1	AVAILABLE TO ORDER	$312.54	Quantity

Showing 1 to 2 of 2 parts
