E275-17-1 MOTOR HYDRAULIC DRIVE ASSEMBLIES MOTOR WHEEL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
	WHEEL MOTOR-625/398CC-POC 401/J3030	1	AVAILABLE TO ORDER	$4,851.50	Quantity
1	BEARING 336/A2011	1	AVAILABLE TO ORDER	$6,603.63	Quantity
2	Brake Sub-Assembly 336/F0086	1	AVAILABLE TO ORDER	$5,658.93	Quantity
3	Cylinder 20/952404	1	AVAILABLE TO ORDER	$9,559.45	Quantity
4	Cover 336/F0089	1	AVAILABLE TO ORDER	$4,240.32	Quantity
5	Seal kit 400/D6845	1	AVAILABLE TO ORDER	$1,732.22	Quantity

Showing 1 to 6 of 6 parts

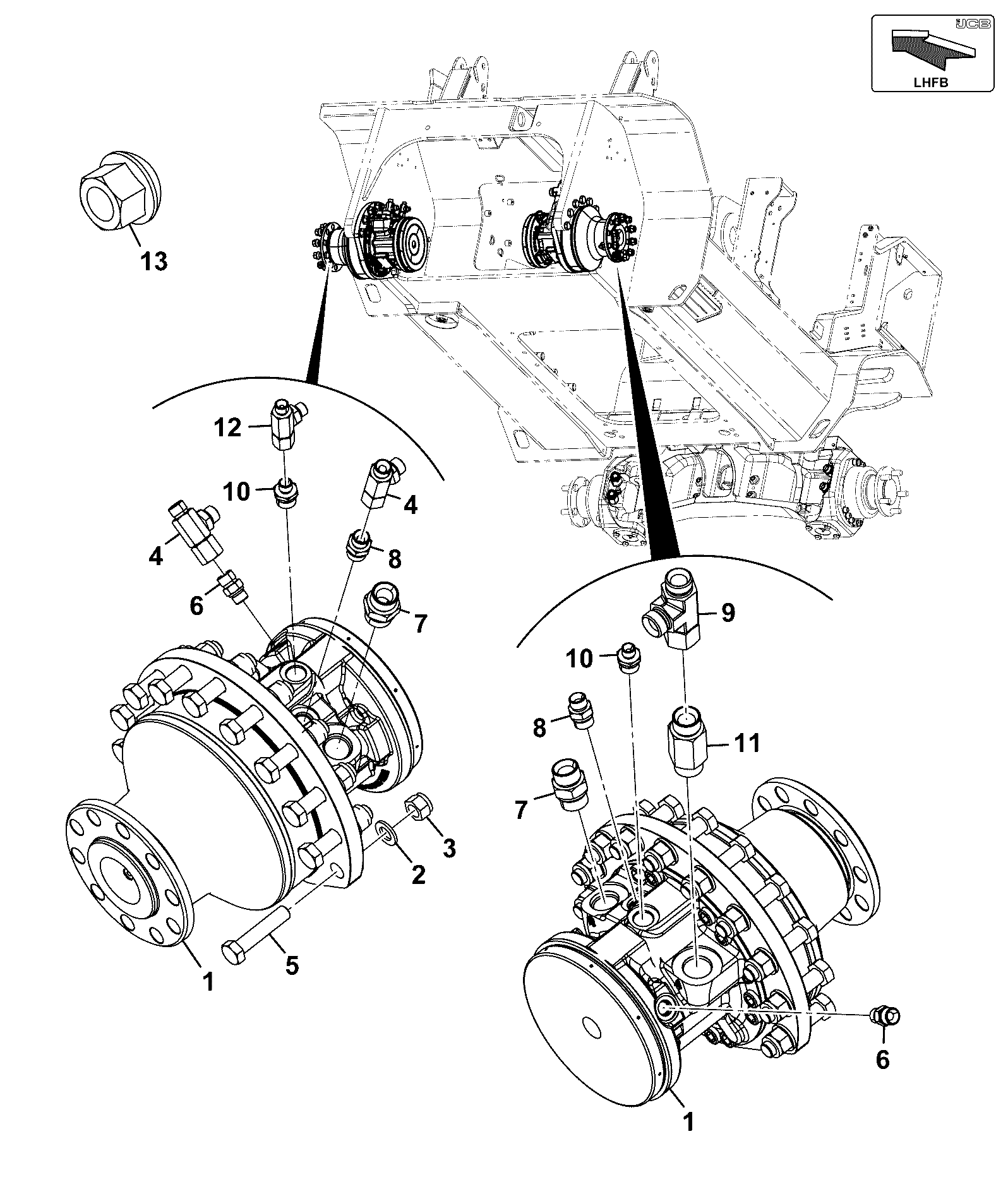

DIAG-E275-10-10-397389 E275-10-10 MOTOR HYDRAULIC DRIVE ASSEMBLIES WHEEL MOTOR
View Diagram

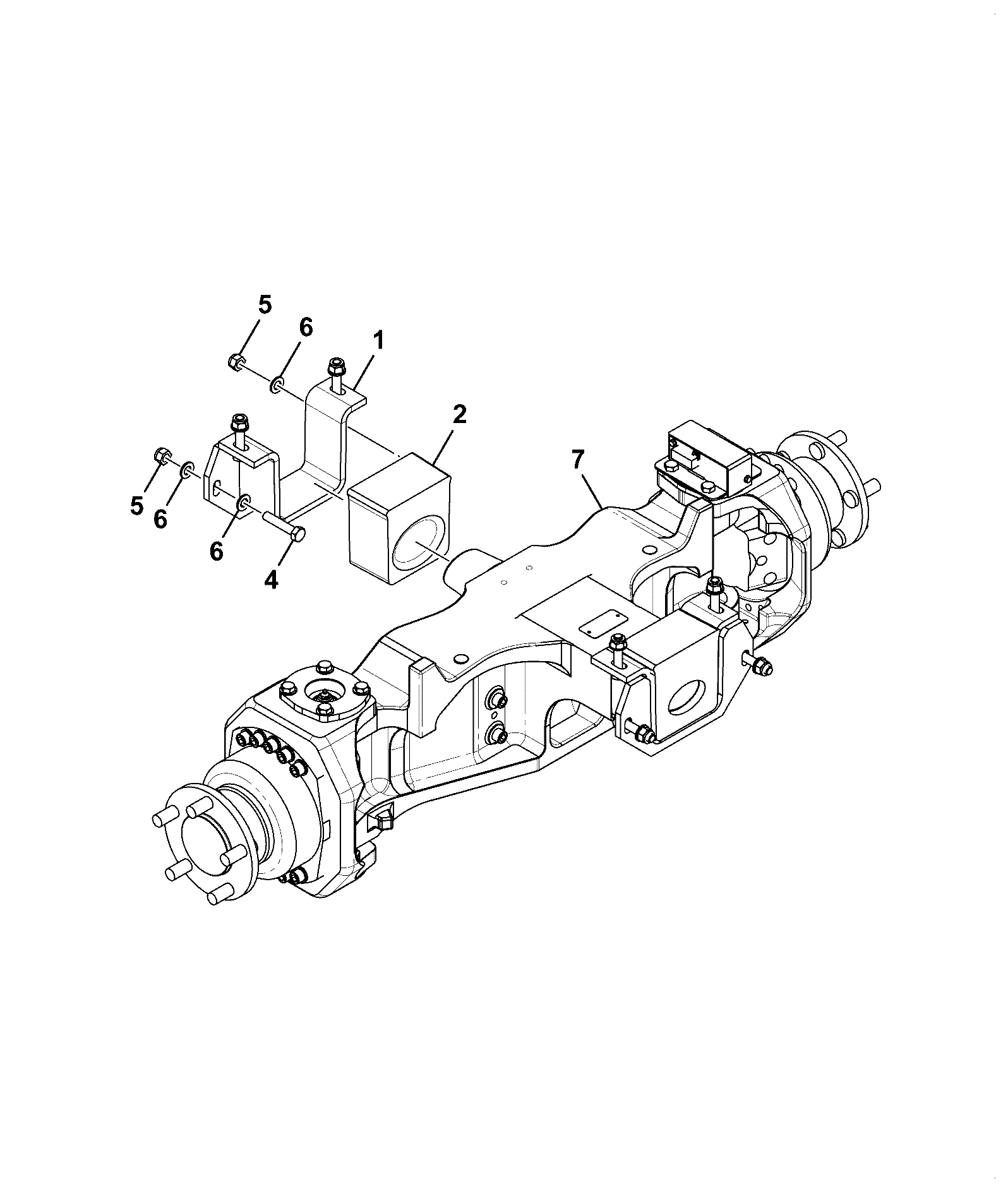

DIAG-F210-5-5-397389 F210-5-5 AXLES REAR ASSEMBLY
