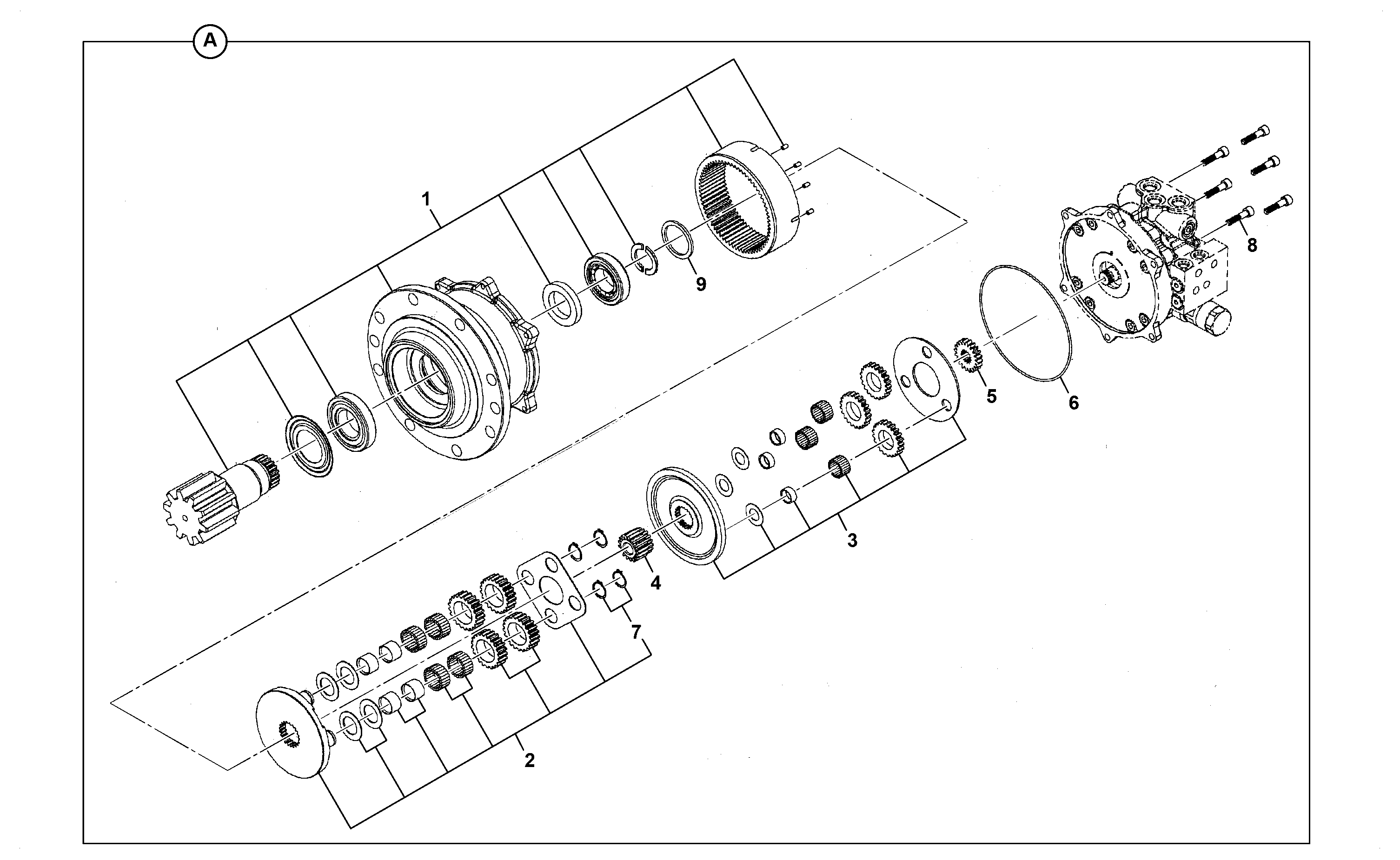

E270-1-1 MOTOR HYDRAULIC SLEW DETAILS SLEW 8055, COMPONENTS, 20/925616 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	Gearbox Slew 20/952102	1	AVAILABLE TO ORDER	$3,651.31	Quantity
2	Motor 20/952103	1	AVAILABLE TO ORDER	$6,419.72	Quantity
A	MOTOR, SLEW 20/925616	1	AVAILABLE TO ORDER	$5,067.84	Quantity

Showing 1 to 3 of 3 parts
