E265-1-1 MOTOR HYDRAULIC SLEW ASSEMBLIES SLEW MOTOR,ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	MOTOR SLEW WITH BR 20/925321	1	AVAILABLE TO ORDER	$5,569.81	Quantity
2	ADAPTER 1/2" ST MALE KNJ0604 334/L0979	1	AVAILABLE TO ORDER	$16.52	Quantity
3	Elbow Adaptor KHJ0344 334/L6548	1	AVAILABLE TO ORDER	$21.74	Quantity
4	ELBOW ADAPTOR 1/4 334/L6662	1	AVAILABLE TO ORDER	$9.46	Quantity
5	ADAPTOR G1/4AxG3/8 M/F 1612/2059	1	AVAILABLE TO ORDER	$18.10	Quantity

Showing 1 to 5 of 5 parts

DIAG-E230-1-1-398191 E230-1-1 PUMPS HYDROSTATIC
View Diagram
DIAG-E300-1-1-398191 E300-1-1 VALVE INSTALLATION ASSEMBLIES MAIN CONTROL VALVE ASSEMBLY,8 SPOOL
View Diagram

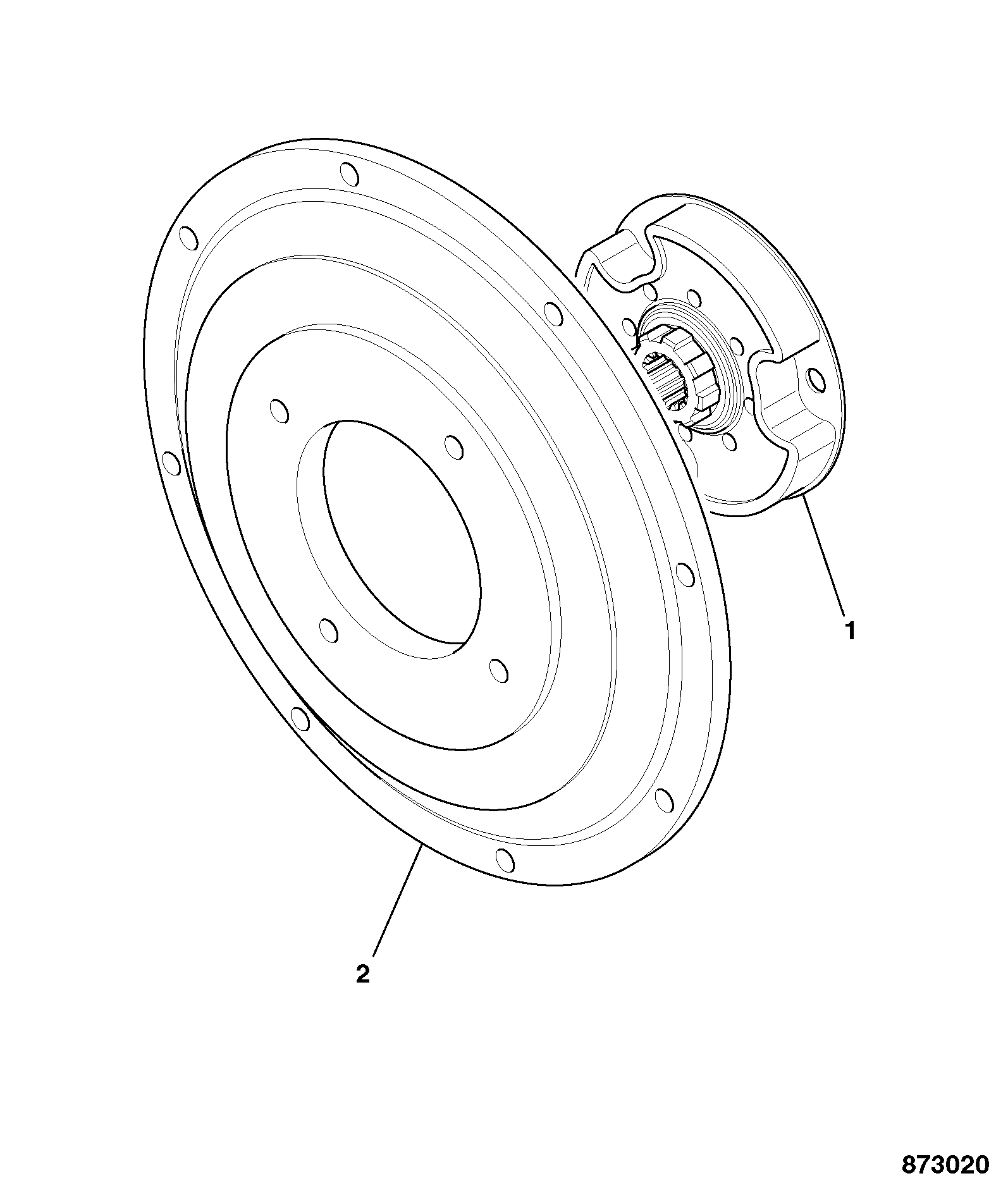

DIAG-E205-1-1-398191 E205-1-1 PUMP COUPLING DRIVE ASSEMBLY
